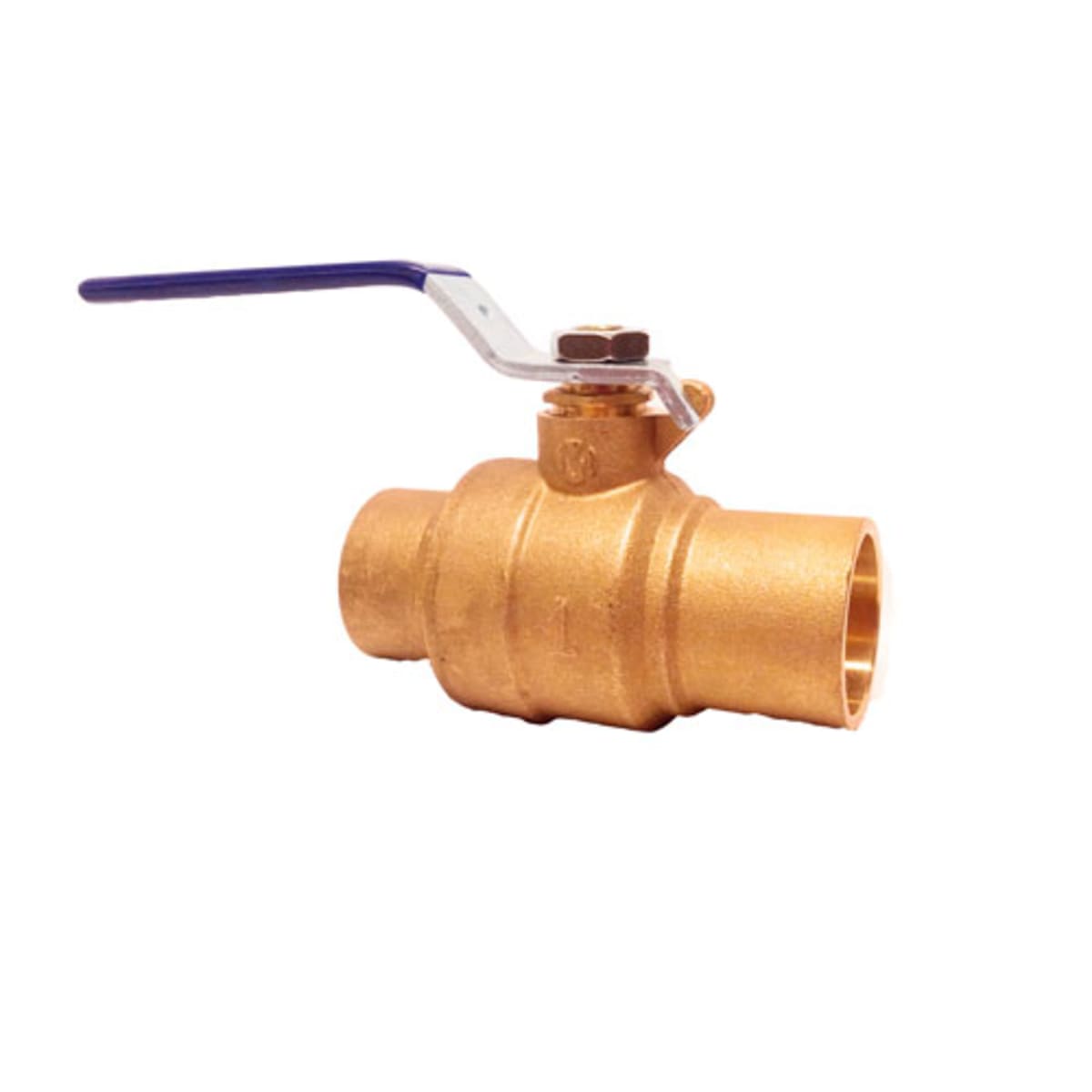

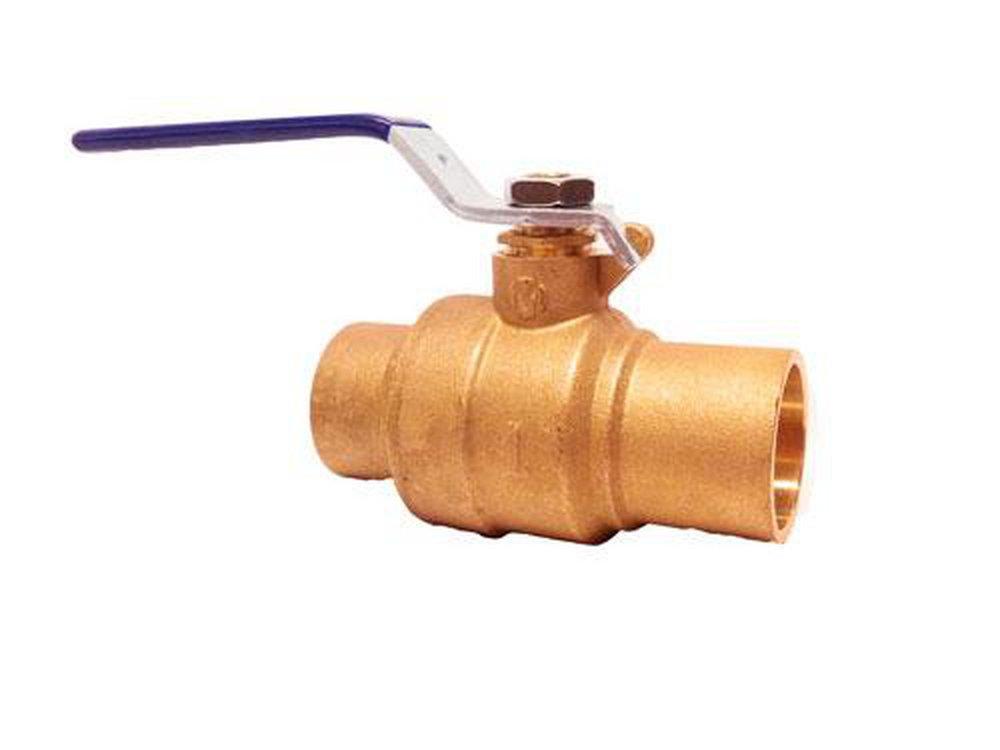

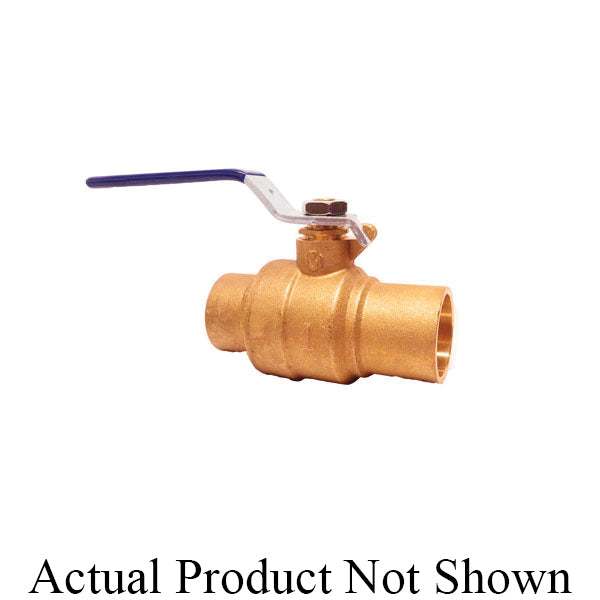

Milwaukee Valve BA485B-12 BA-485B 1/2 in Forged Brass Full Port Solder 600# Ball Valve

Product Description

The Milwaukee Valve BA485B-12 is a 1/2 inch forged brass full port ball valve designed for a variety of plumbing applications. This valve features solder ends for easy installation and is rated for up to six hundred psi working pressure. The full-port design allows for maximum flow with minimal resistance, making it ideal for use in HVAC and plumbing systems.

• Sweat connection type for easy installation
• Full port design for increased flow capacity
• Rated for up to 600 psi working pressure

Product Highlights

This Milwaukee Valve is designed for long-lasting performance in demanding environments and is suitable for a range of applications including heating, cooling, and water supply systems.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: BA485B-12

Technical Specifications

• Connection Size: 1/2 inch
• Material: Brass
• Pressure Rating: 600 psi WOG
• Flow Coefficient: 18 Cv
• Operational Type: Quarter turn
• Overall Length: 2.28 inches
• Top to Inlet Center Measurement: 1.46 inches
• Seal Material: PTFE
