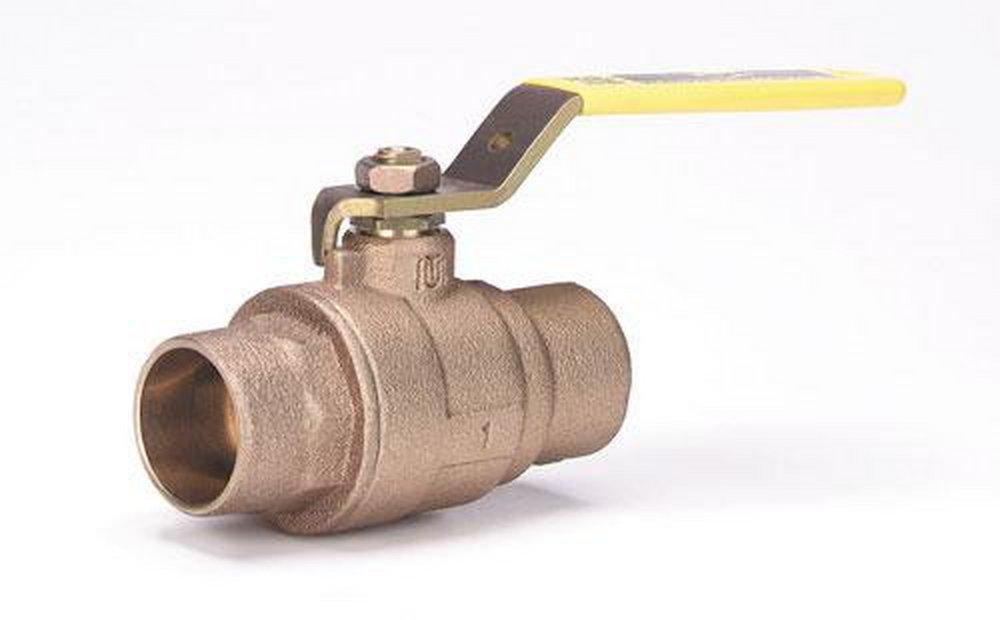

Milwaukee Valve BA150A-100 BA-100/150 Series 1 in. Cast Bronze Reduced Port Solder 600# Ball Valve

Product Description

The Milwaukee Valve BA150A-100 is a ball valve designed for efficiency and durability. It features a cast bronze body and is intended for high-pressure applications. This valve has a solder end style and a standard port configuration. Ideal for HVAC, plumbing, and various industrial uses, this product operates up to six hundred psi.

• Blow-out proof stem.
• Quater turn operation for easy use.
• Bubble-tight shutoff ensures leak prevention.

Product Highlights

Engineered for reliable performance in demanding settings. This unit is built to withstand significant pressure while providing smooth operation.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Part Number: BA-150 A 100

Technical Specifications

• Body Material: Cast Bronze
• Nominal Size: 1 in
• Orifice Size: 0.88 in
• Pressure Rating: 600 psi
• End Style: Solder
• Series: BA-150
• Top to Inlet Center: 2.29 in
• Inlet to Outlet Length: 3.71 in
• Trim Material: Brass Stem and RPTFE Seat
• Softgoods Material: RPTFE
• Domestic/Import: Domestic
