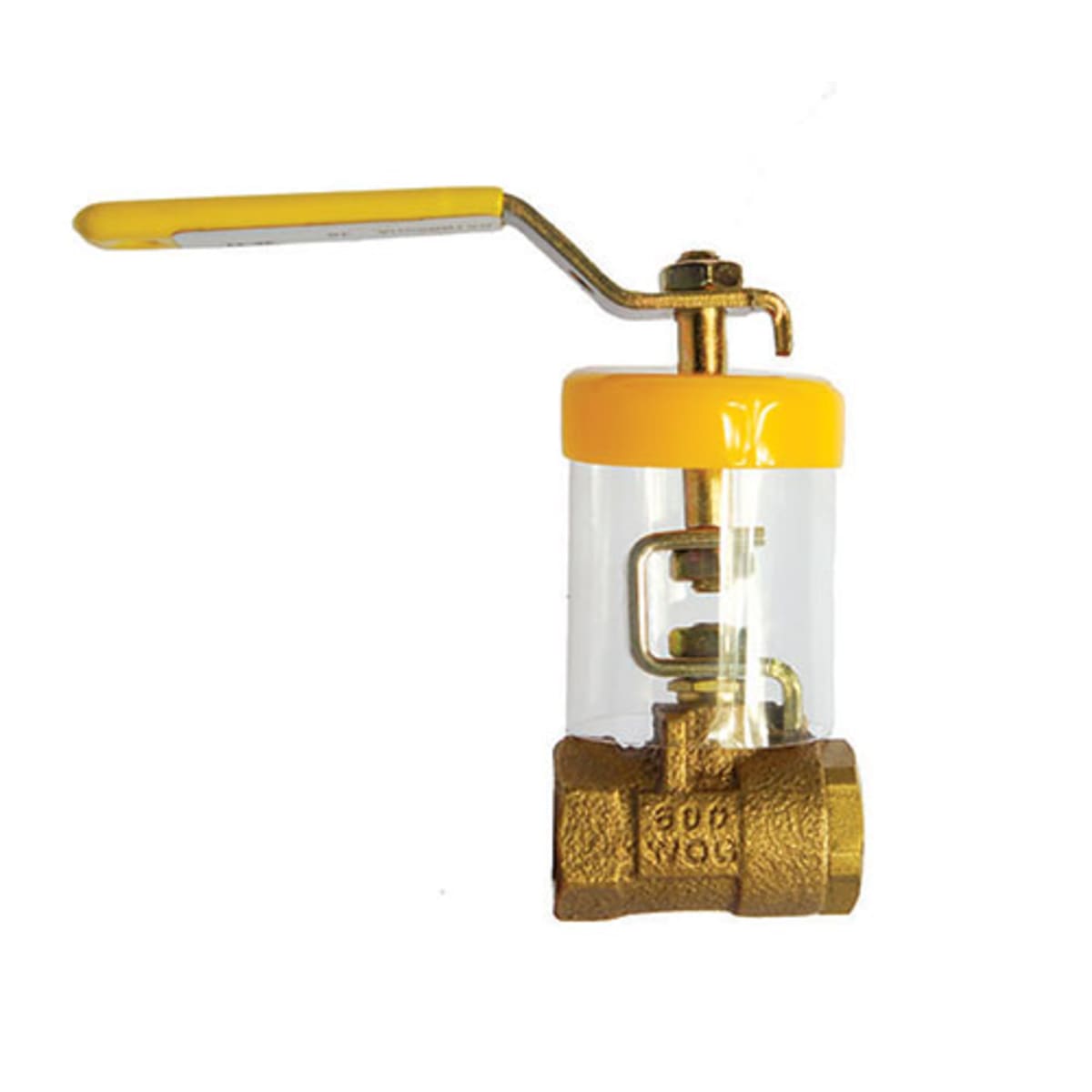

Milwaukee Valve BA100XHA100 1 - FIP x FIP - Bronze, Standard Port - Ball Valve - 150 SWG - 600 WOG

Product Description

The Milwaukee Valve BA100XHA100 is a two-piece bronze ball valve designed for reliable fluid control in various plumbing applications. This ball valve features a FIP x FIP connection type, making it suitable for various piping systems. It operates effectively under a pressure rating of six hundred psi and a temperature range of one hundred fifty psi.

• Two-piece construction for durability
• Compatible with standard ports
• RPTFE seat for enhanced sealing

Product Highlights

This Milwaukee Valve is ideal for water and non-potable applications where fluid control is essential. The combination of bronze material and stainless steel ball guarantees long-lasting performance.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Part Number: BA100XHA100

Technical Specifications

• Material: Bronze
• Connection Type: FIP x FIP
• Pressure Rating: 600 psi
• Nominal Size: 1 in
• Orifice Size: 0.88 in
• Inlet to Outlet Length: 3.17 in
• Top to Inlet Center: 2-1/4 in
• Softgoods Material: RPTFE
• Body Material: Cast Bronze
• Trim Material: Brass Stem and RPTFE Seat
