Milwaukee Valve BA100A-38 BA-100 3/8 in Bronze Full Port Threaded 600# Ball Valve

Product Description

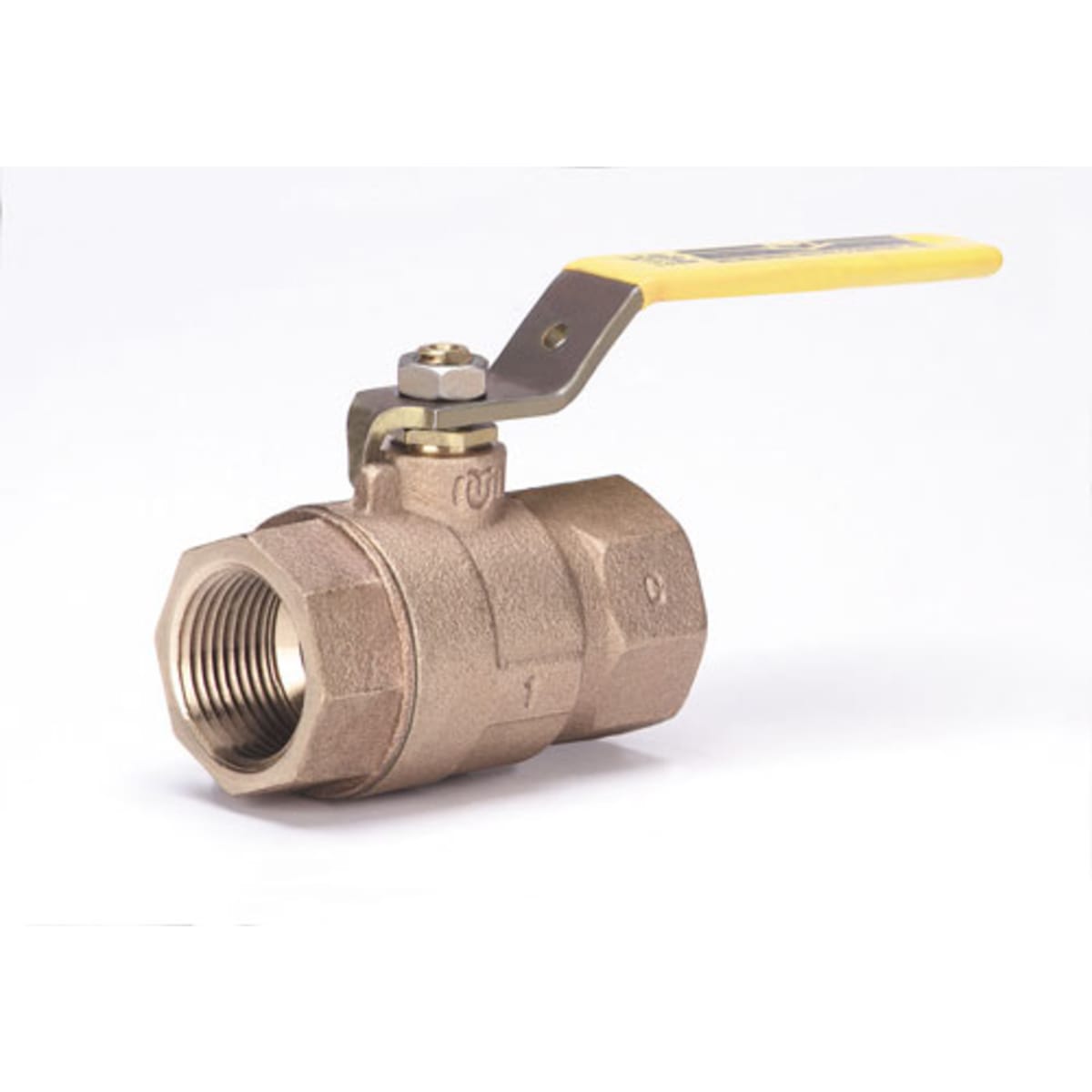

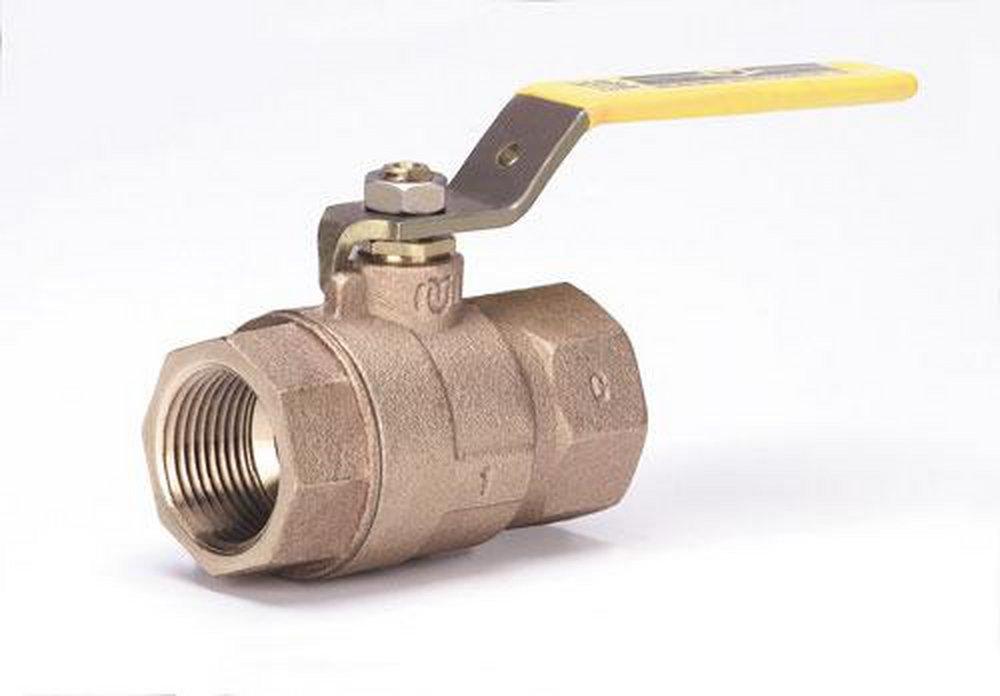

The Milwaukee Valve BA-100 A 38 is a 3/8 inch bronze ball valve. It features full port flow and is designed for use in various plumbing applications. This valve has a threaded end style and can handle pressures up to six hundred psi. It is an effective choice for systems where a reliable shutoff is essential.

• Brass stem and RPTFE seat trim for durability
• Bubble-tight shutoff
• Cast bronze body ensures longevity

Product Highlights

This 2-piece valve is ideal for non-potable water systems and rated for vacuum service. It comes with a zinc-plated steel handle and is equipped with a blow-out-proof stem for maximum reliability.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: BA-100 A 38

Technical Specifications

• Body Material: Cast Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 1.86 inches
• Nominal Size: 3/8 inches
• Orifice Size: 0.38 inches
• Pressure Rating: 600 psi
• Series: BA-100
• Softgoods Material: RPTFE
• Top to Inlet Center: 1.81 inches
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
