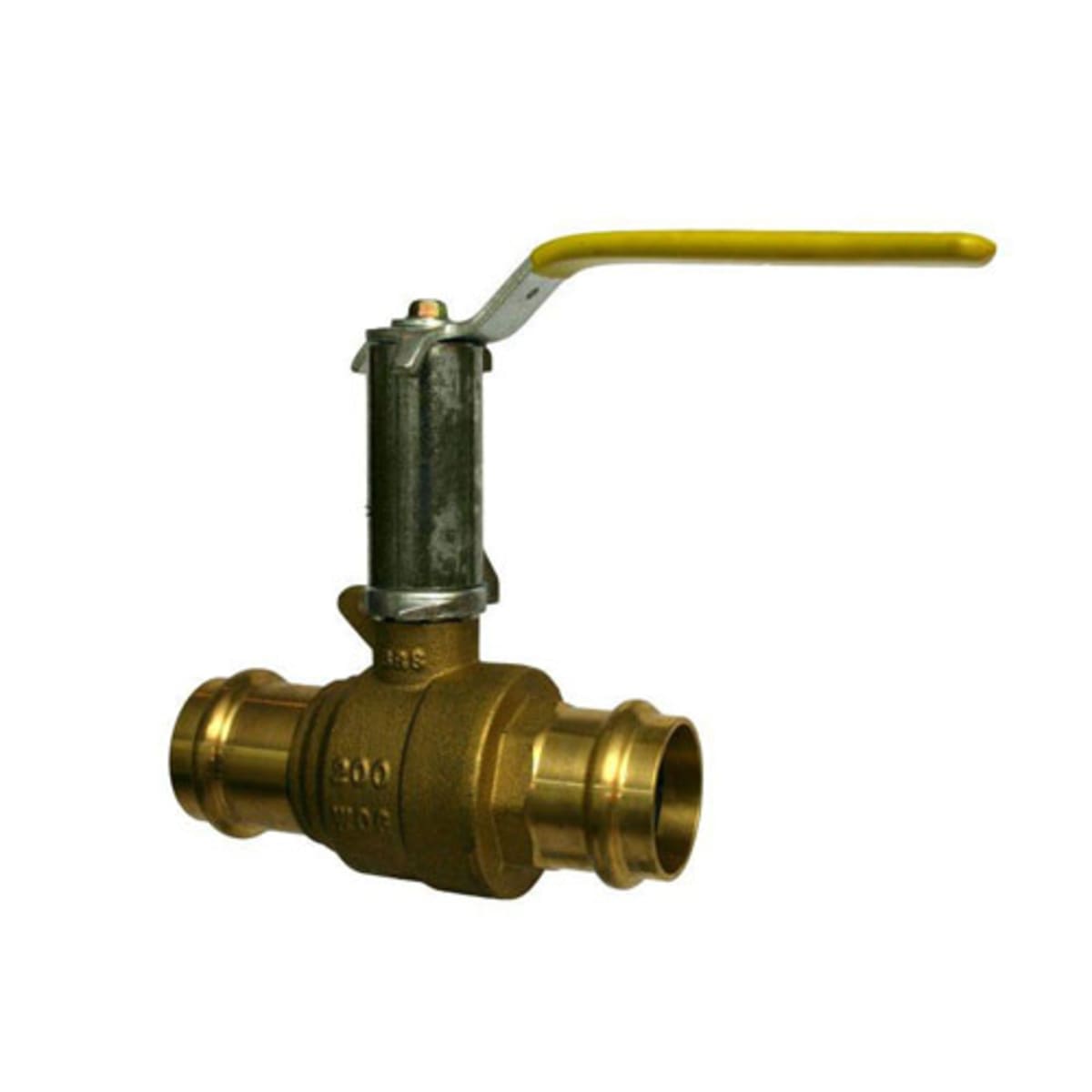

Milwaukee Valve BA-481B-34 3/4 - Press x Press - Brass, Full Port - Ball Valve - 200 PSI

Product Description

The Milwaukee Valve BA-481B-34 is a two-piece ball valve made from brass, designed for high-performance applications. This valve offers a maximum pressure rating of 200 PSI and is suitable for temperatures up to 250 degrees Fahrenheit. It features press x press ends for easy installation, making it ideal for HVAC and plumbing applications.

• Constructed from forged brass for durability
• Full port design allows for optimal flow
• Includes a chrome-plated brass ball and RPTFE seat for enhanced reliability

Product Highlights

This ball valve is engineered to provide efficient flow control while maintaining strong sealing capabilities. The press connection helps reduce installation time and effort.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: BA-481B-34

Technical Specifications

• Material: Brass
• Connection Type: Press x Press
• Nominal Size: 3/4 in
• Orifice Size: 0.76 in
• Pressure Rating: 250 psig
• Temperature Rating: 250 degrees F
• Inlet to Outlet Length: 3.71 in
• Top to Inlet Center: 4.26 in
• Type: 2-Piece
• Port Type: Full
• Trim Material: Brass Stem and PTFE Ball Seat
• Domestic/Import: Import
