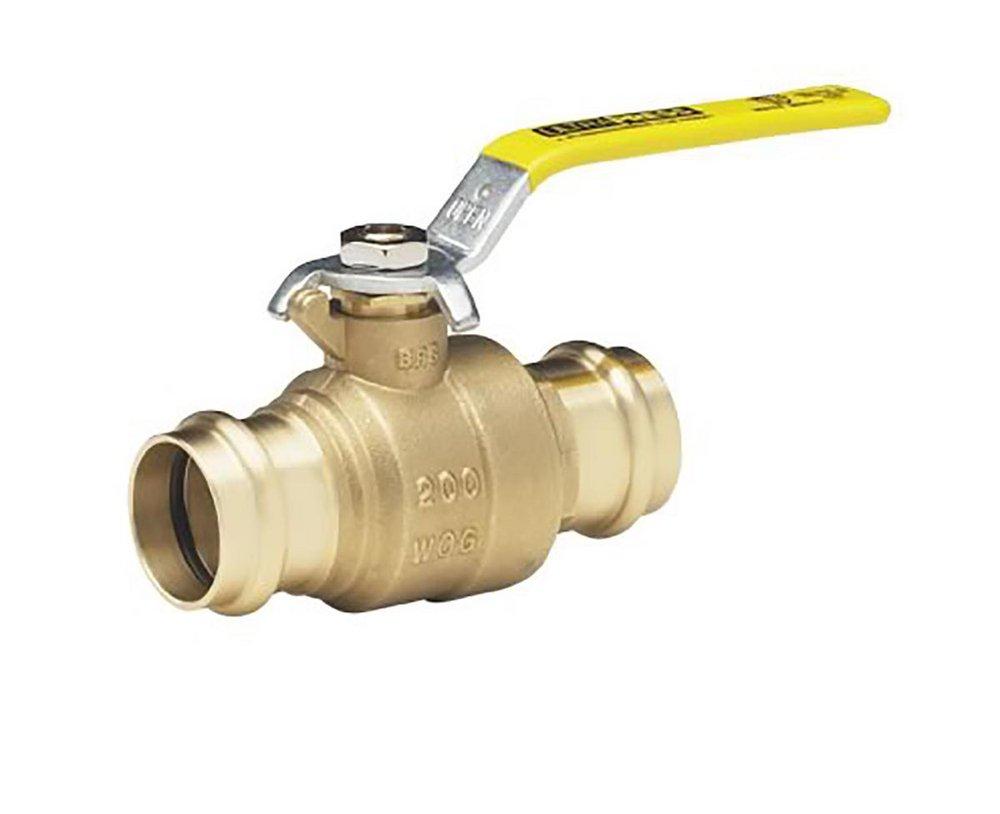

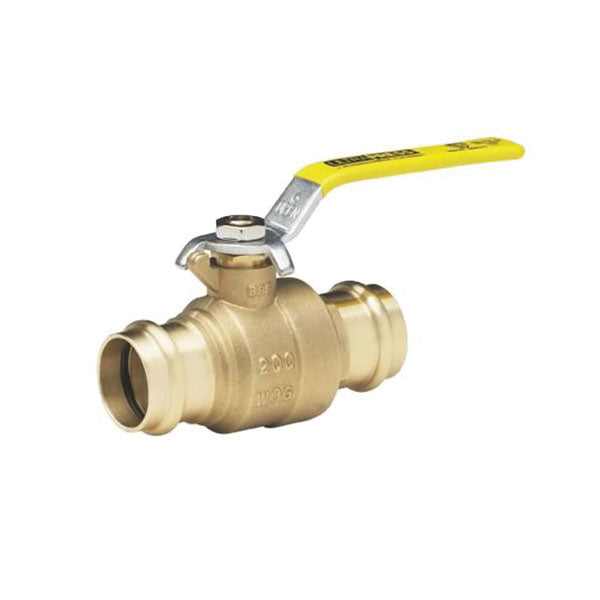

Milwaukee Valve BA-480B-200 BA-480B 2 in Forged Brass Full Port Press 200#

Product Description

The Milwaukee Valve BA-480B-200 is a two-piece ball valve made from forged brass. Designed for use in various plumbing applications, this valve is ideal for copper tubing systems. It features press ends and is rated for up to 200 psig and two hundred fifty degrees Fahrenheit.

• Two-piece design for easy installation
• Blow-out proof stem enhances safety
• Not suitable for potable water use

Product Highlights

This ball valve provides reliable performance in non-potable water systems. The design includes a zinc-plated steel handle and PTFE body seal for improved durability and functionality.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: BA-480B-200

Technical Specifications

• Body Material: Forged Brass
• Nominal Size: 2 in
• Orifice Size: 2.01 in
• Inlet to Outlet Length: 7.44 in
• Temperature Rating: 250 deg F
• Pressure Rating: 200 psig
• Softgoods Material: PTFE
• End Style: Press
• Type: 2-Piece
• Standards/Approvals: ASTM B283 Body/Ball, ASTM B124 Stem, California Proposition 65 compliant
