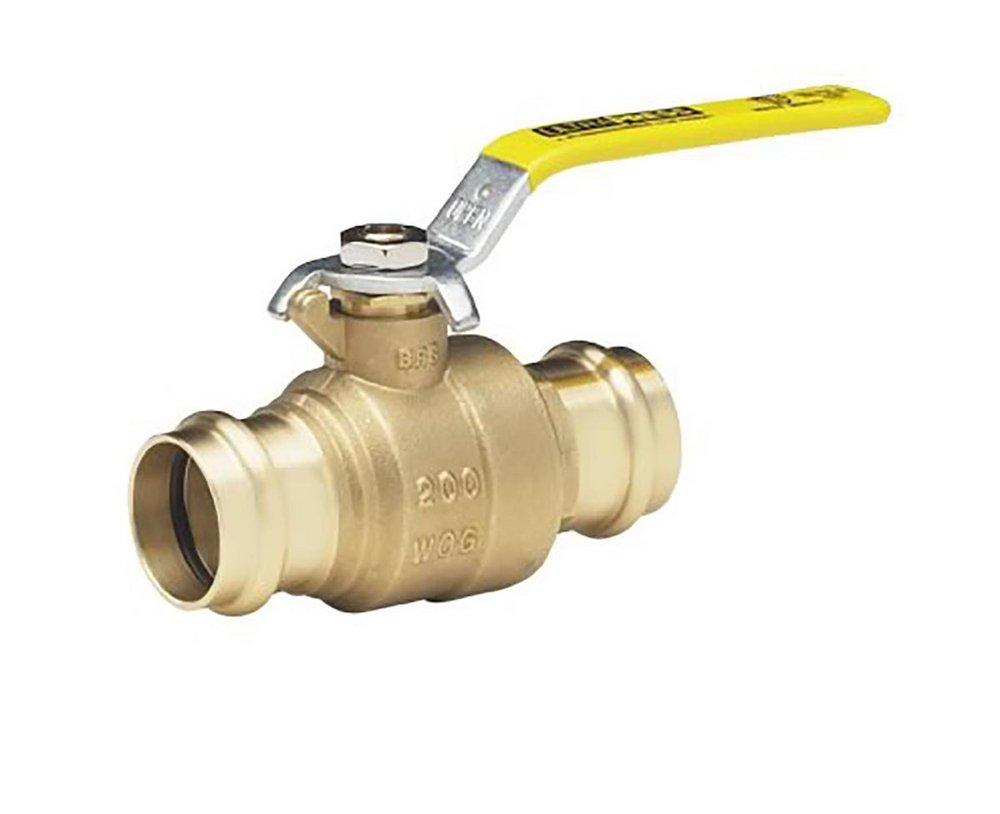

Milwaukee Valve BA-480B-12 Full Port Press 200# Ball Valve

Product Description

Milwaukee Valve BA-480B-12 is a two-piece ball valve designed for press connections. It features a forged brass body and offers reliable performance for various fluid control applications.

• Press connection style ensures a secure and leak-free fit
• Rated for a maximum pressure of 200 psig
• Temperature tolerance up to 250 degrees Fahrenheit

Product Highlights

This valve is suitable for non-potable applications, providing a robust solution for HVAC and plumbing systems.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: BA-480B-12

Technical Specifications

• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: Press
• Inlet to Outlet Length: 3.16 inches
• Nominal Size: 1/2 inch
• Orifice Size: 0.51 inches
• Pressure Rating: 200 psig
• Series: BA-480B
• Softgoods Material: PTFE
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 1.62 inches
• Trim Material: Brass Stem
• Type: 2-Piece
