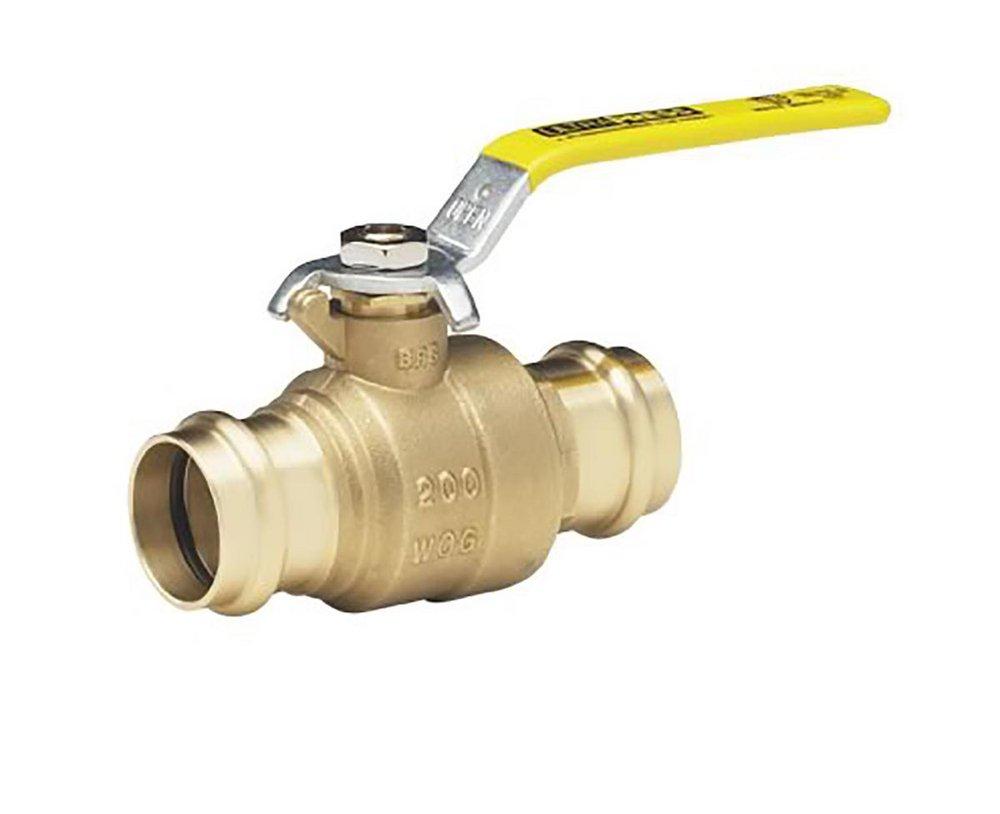

Milwaukee Valve BA-480B-100 1 in Forged Brass Full Port Press 200# Ball Valve

Product Description

The Milwaukee Valve BA-480B-100 is a two-piece ball valve made from forged brass. This valve features a full port design and is suitable for press connections. It operates at a pressure rating of two hundred psig and a temperature rating of two hundred fifty degrees Fahrenheit. The valve is not intended for use with potable water.

• Not intended for use in potable water.
• Blow-out proof stem for enhanced safety.
• Suitable for various HVAC and plumbing applications.

Product Highlights

The Milwaukee Valve BA-480B-100 is designed for efficient flow control in pressurized systems. Its robust construction makes it ideal for industrial and commercial use.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Part Number: BA-480B-100

Technical Specifications

• Body Material: Forged Brass
• Nominal Size: 1 in
• Orifice Size: 0.98 in
• Pressure Rating: 200 psig
• Temperature Rating: 250 deg F
• Inlet to Outlet Length: 4.28 in
• Top to Inlet Center: 2.21 in
• Softgoods Material: PTFE
• Series: BA-480B
• End Style: Press
• Trim Material: Brass Stem
• Type: 2-Piece
