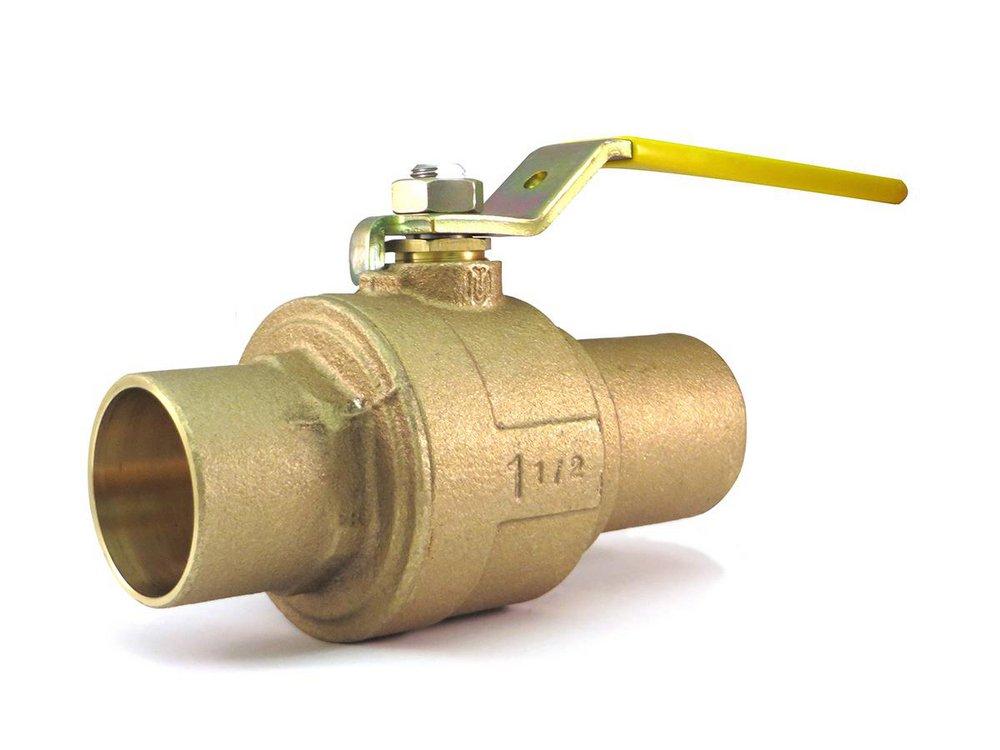

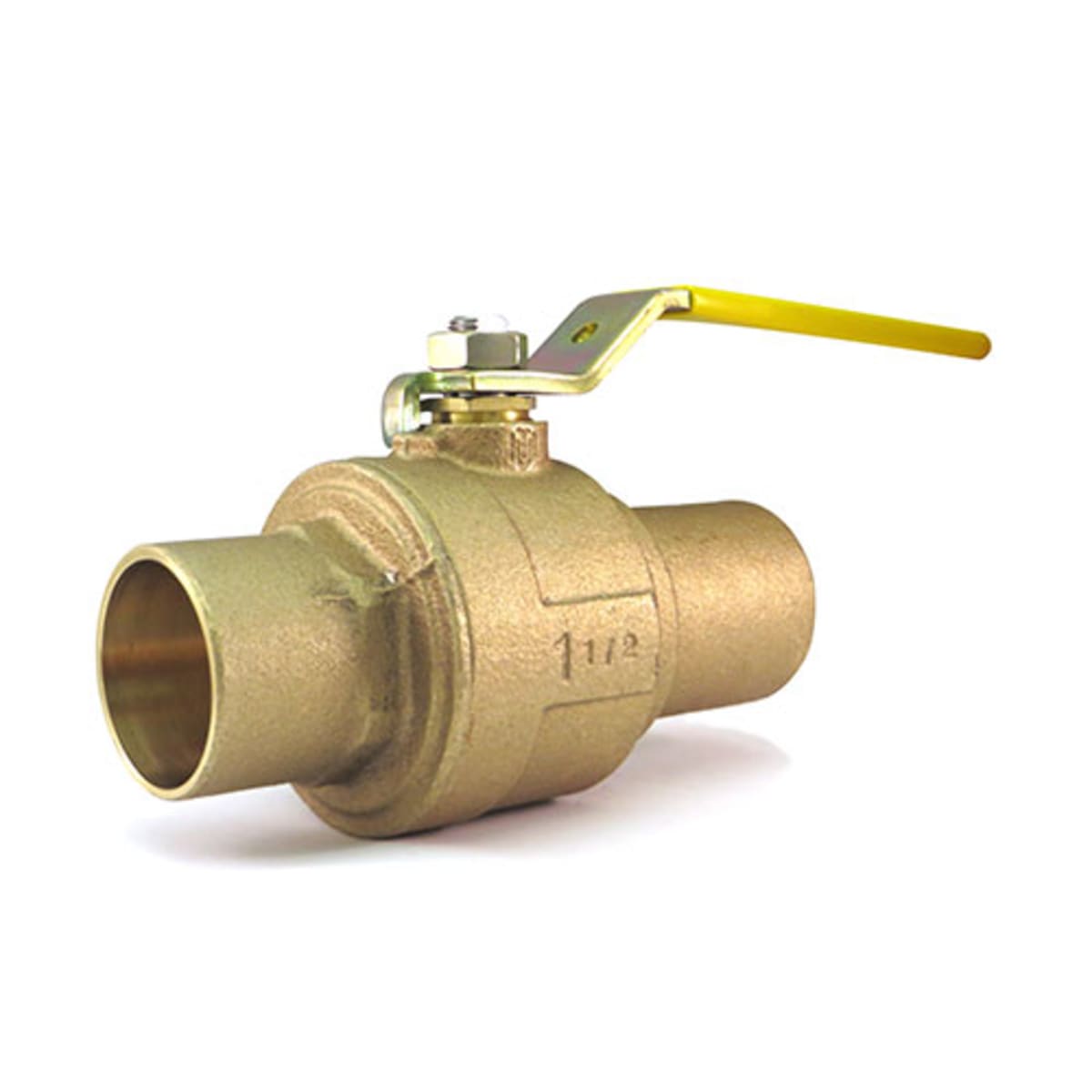

Milwaukee Valve BA-450SA114 BA-450S 1-1/4 in Cast Bronze Full Port Solder Valve

Product Description

Milwaukee Valve presents the BA-450SA114, a two-piece ball valve designed for reliable control in various piping systems. This valve features a full port design that allows for maximum flow, making it suitable for numerous applications. The solder end style ensures secure connections for easy installation.

• Pressure-rated up to six hundred psi.
• Constructed from durable bronze material.
• Not intended for potable water systems.

Product Highlights

This Milwaukee Valve is ideal for industrial and commercial installations. It is built to last and withstand high pressure, while its full port design enhances performance and flow efficiency.

Product Information

Standard Information

• Nominal Size: 1-1/4 inches
• End Style: Solder

Technical Specifications

• Body Material: Bronze
• Ball Material: 316 Stainless Steel
• Pressure Rating: 600 psi
• Inlet to Outlet Length: 5 inches
• Orifice Size: 1.31 inches
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Top to Inlet Center: 2.82 inches
• Softgoods Material: RPTFE
