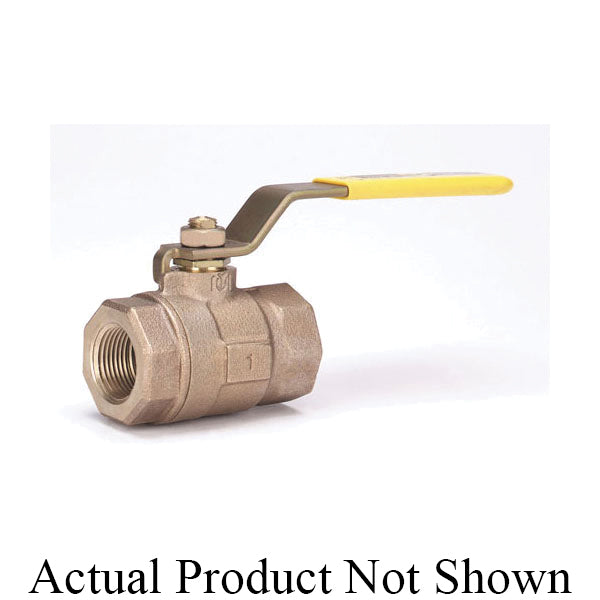

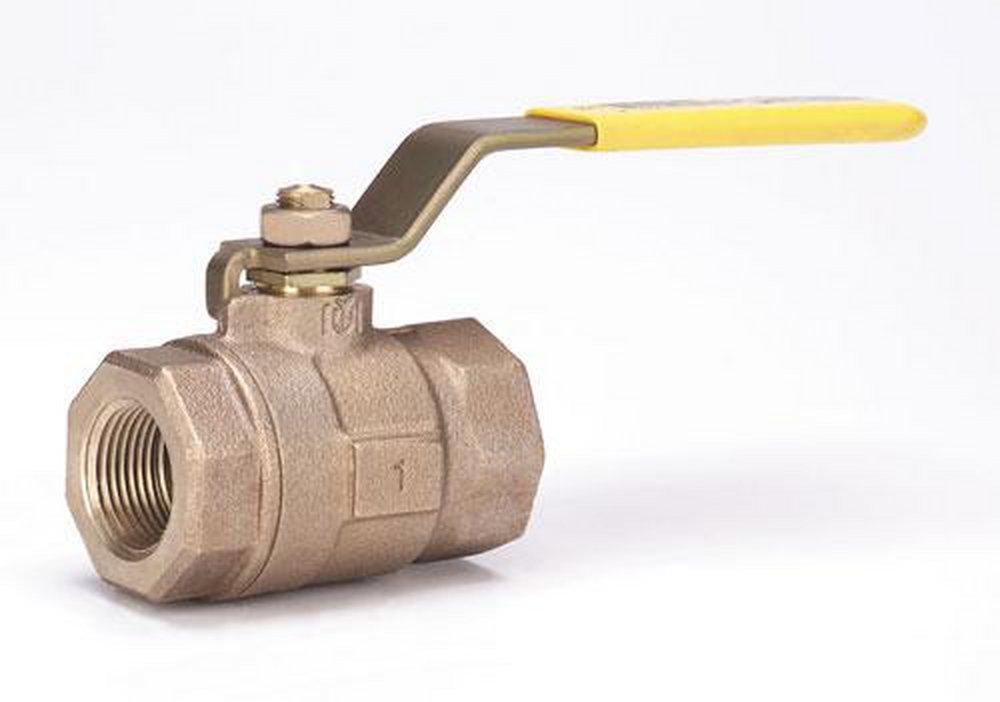

Milwaukee Valve BA-400SA114 BA-400S 1-1/4 in Cast Bronze Full Port Threaded 600# Ball Valve

Product Description

Milwaukee Valve BA-400SA114 is a two-piece ball valve. It is designed for various industrial applications. The valve features a full port design and is made from durable bronze material, making it suitable for high-pressure environments. This valve is ideal for controlling flow in piping systems.

• Full port design for optimal flow
• Compatible with threaded pipe connections
• Rated for up to 600 psi pressure

Product Highlights

This ball valve is designed for reliability in non-potable applications.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: BA-400SA114

Technical Specifications

• Body Material: Bronze
• Pressure Rating: 600 psi
• Nominal Size: 1-1/4 inches
• Orifice Size: 1.31 inches
• Inlet to Outlet Length: 3.77 inches
• Top to Inlet Center: 2.82 inches
• Softgoods Material: RPTFE
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
• Series: BA-400S
• End Style: Thread
• Domestic/Import: Domestic
• Approvals: ASTM B584 Body, ASTM A276 Ball/Stem, MSS SP-110
