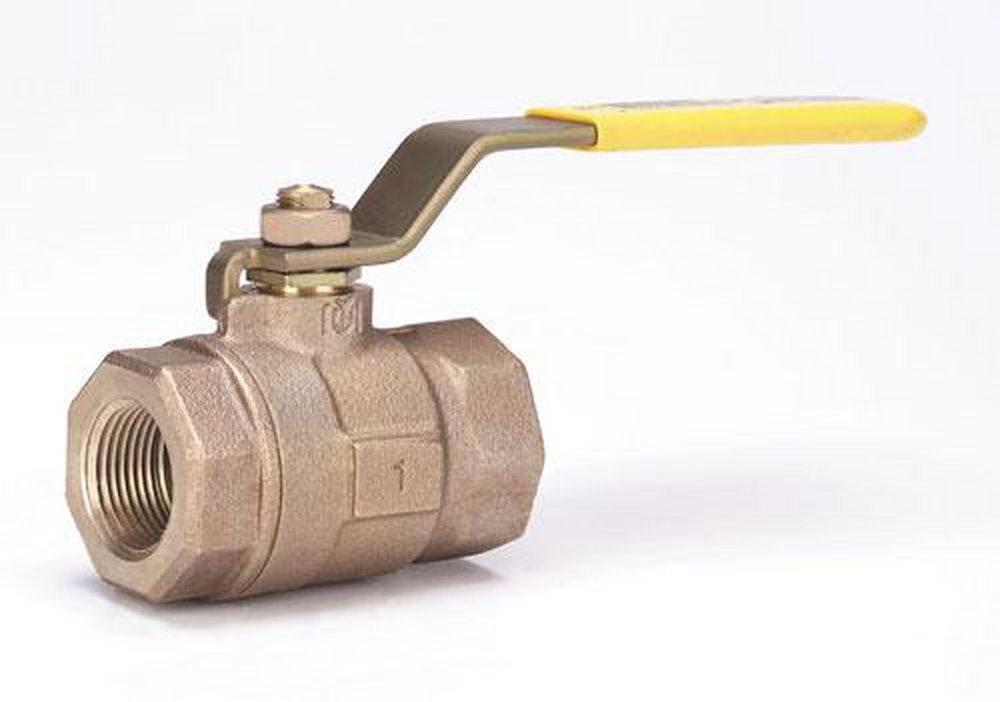

Milwaukee Valve BA-400SA100 BA-400S 1 in Full Port Ball Valve

Product Description

The Milwaukee Valve BA-400SA100 is a full-port ball valve designed for high performance and durability. This 2-piece valve features a bronze body and is rated for a pressure of 600 psi. The thread end style ensures easy installation in various applications, while the valve's design allows for a bubble-tight shutoff.

• Full port design with 1.06 inch orifice
• Blow-out proof stem for enhanced safety
• Not intended for use in potable water systems

Product Highlights

Ideal for industrial and commercial applications, the BA-400SA100 provides a reliable solution for flow control. Its robust construction and reliable sealing mechanism make it suitable for various fluids.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: BA-400SA100

Technical Specifications

• Body Material: Bronze
• Nominal Size: 1 in
• Orifice Size: 1.06 in
• Pressure Rating: 600 psi
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
• Top to Inlet Center: 2.68 in
• Inlet to Outlet Length: 3.32 in
• Softgoods Material: RPTFE
