Milwaukee Valve BA-150S Ball Valve 600 WOG

Product Description

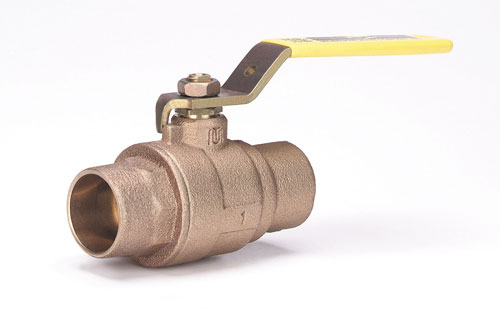

The MILWAUKEE VALVE BA-150S is a two-piece bronze ball valve designed for 600 WOG. Features solder end connections and a standard port. It has a stainless steel ball and a lever handle. Not intended for use in potable water.

• Features a blow-out proof stem.
• Valves rated for vacuum service to 29 in Hg.
• Includes a zinc plated steel handle.

Product Highlights

This bronze ball valve is ideal for industrial applications requiring a reliable shutoff with its robust design and stainless steel components.

Product Information

Standard Information

• Brand: MILWAUKEE VALVE
• Manufacturer Part Number: BA-150S

Technical Specifications

• Material: Bronze
• ANSI/Pressure Rating: 600 WOG
• End Connection: Solder
• Body Style: Two Piece
• Seat Material: RPTFE
• Port: Standard
• Ball: Stainless Steel
• Operator: Lever Handle
• Ball Material: 316 Stainless Steel
• Domestic/Import: Domestic
• Inlet to Outlet Length: 4.54 in
• Nominal Size: 1-1/4 In
• Orifice Size: 1.06 in
• Port Type: Standard
• Pressure Rating: 600 psi
• Series: BA-150S
• Softgoods Material: RPTFE
• Top to Inlet Center: 2.67 in
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Type: 2-Piece
