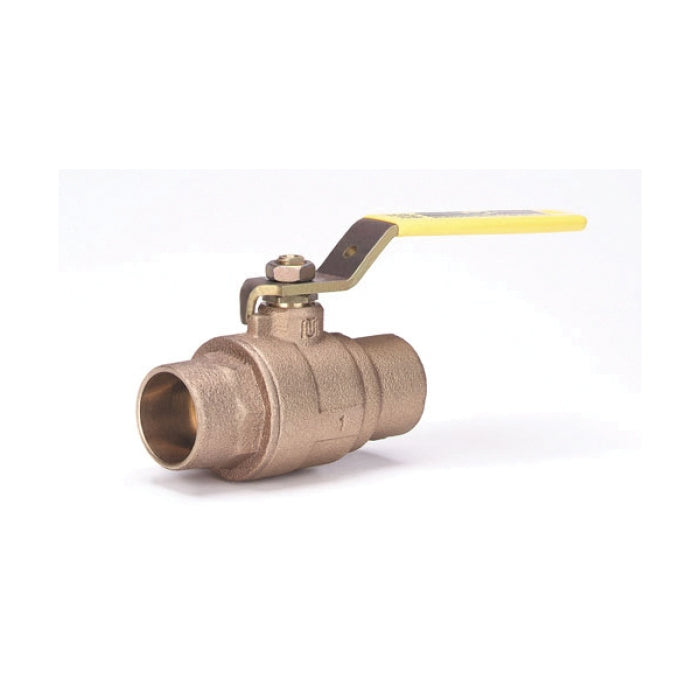

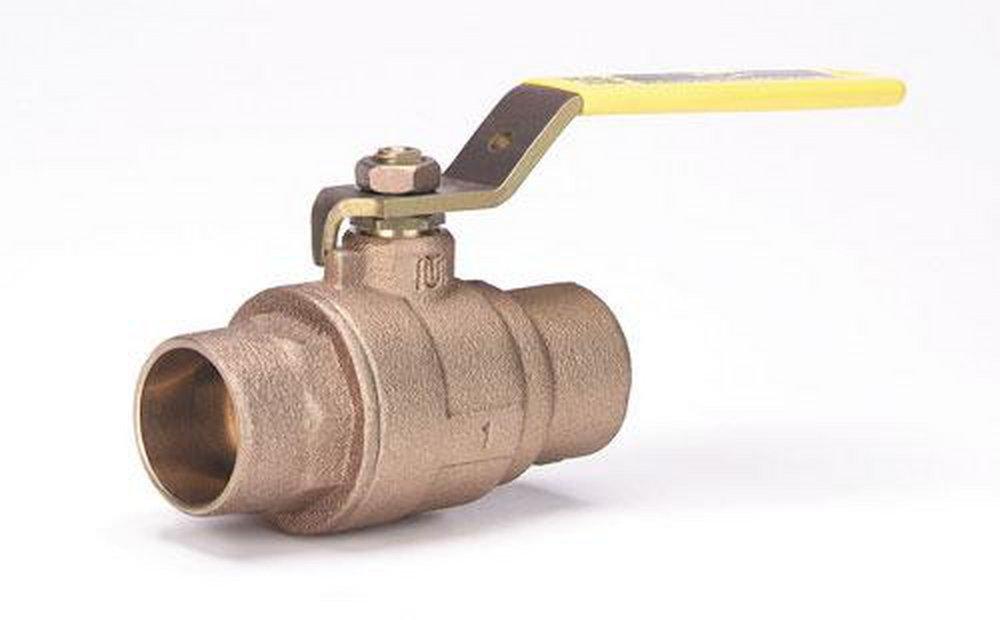

Milwaukee Valve BA-150S A 100 Cast bronze standard port solder ball valve (1 in.) MBA150SG

Product Description

Milwaukee Valve BA-150S A 100 is a two-piece, 1 in. cast bronze ball valve with solder (sweat) ends rated to 600 psi. It has a 0.88 in standard port, 316 stainless steel ball and stem, RPTFE seats and softgoods, and a blow-out proof stem with quarter-turn operation providing bubble-tight shutoff. The valve is rated 150 psi steam working pressure, suitable for vacuum service to 29 in Hg and not intended for potable water.

• Cast bronze body with 316 stainless steel ball and stem, RPTFE seats and 0.88 in orifice
• Solder (sweat) end connection, nominal 1 in size, two-piece construction; inlet-to-outlet length 3.71 in, top-to-inlet center 2.29 in
• Ratings: 600 psi pressure rating, 150 psi steam working pressure, vacuum service to 29 in Hg; blow-out proof stem and quarter-turn operation with zinc plated steel handle

Product Highlights

1 in. soldered bronze ball valve, 600 psi rating, 316 stainless ball and stem, RPTFE seats; not intended for potable water

Product Information

Standard Information

• Brand: MILWAUKEE VALVE
• Manufacturer Part Number: BA-150S A 100
• Country of Origin: Domestic

Technical Specifications

• Brand: Milwaukee Valve
• MPN: BA-150S A 100
• Manufacturer part number: MBA150SG
• Model: BA150-S
• Series: BA-150S
• Type: 2-piece
• Nominal Size: 1 in
• Orifice Size: 0.88 in
• Body Material: Cast bronze
• Ball Material: 316 stainless steel
• Stem Material: 316 stainless steel
• Trim Material: 316 stainless steel stem and RPTFE seat
• Seat Material: RPTFE (15% glass filled)
• Thrust Washer: 25% glass filled RPTFE thrust washer
• Softgoods Material: RPTFE
• End Style: Solder (sweat)
• Port Type: Standard port
• Pressure Rating: 600 psi
• Steam Working Pressure: 150 psi
• Vacuum Rating: 29 in Hg
• Operation: Quarter turn
• Stem Feature: Blow-out proof stem
• Handle Material/Finish: Zinc plated steel
• Inlet to Outlet Length: 3.71 in
• Top to Inlet Center: 2.29 in
• Country of Origin: US
• UPC: 697988103054
• Notes: Not intended for potable water
• Weight: 1.365 lb
