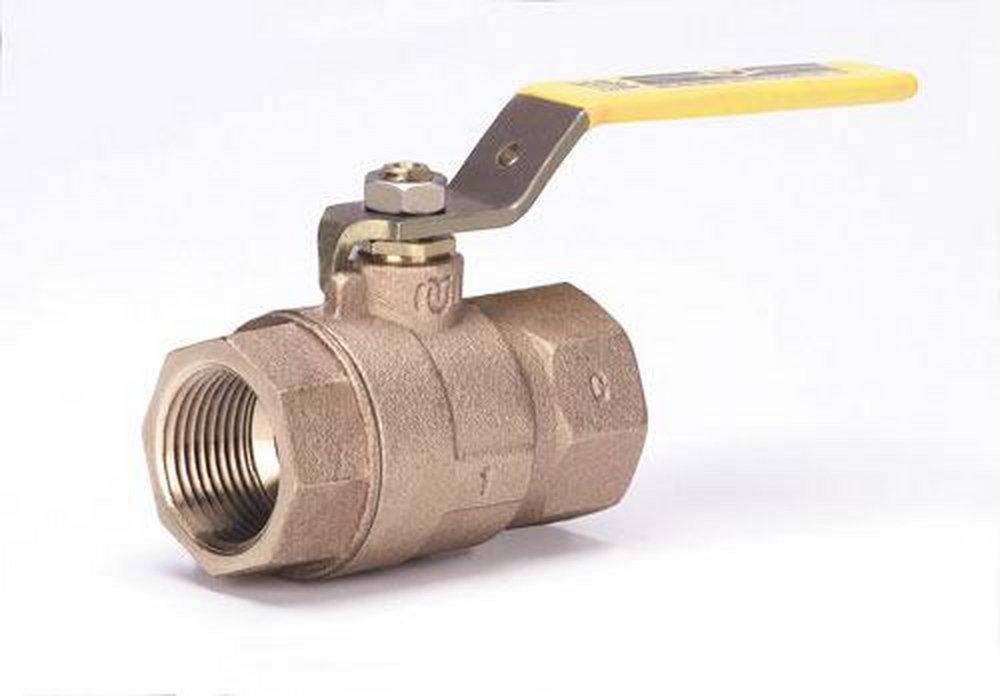

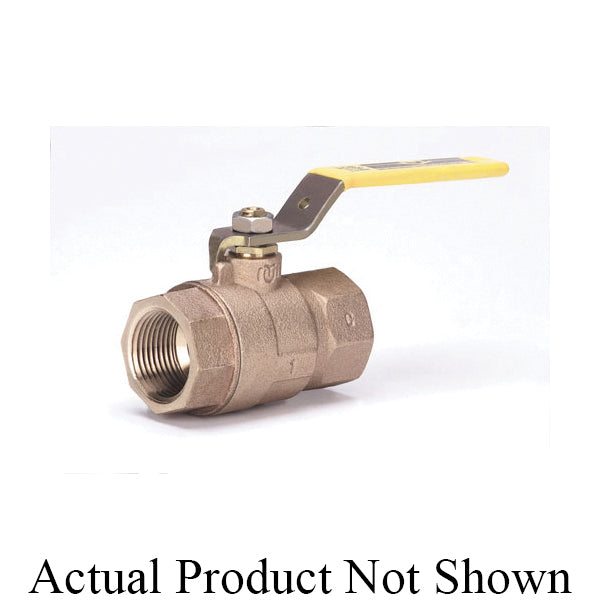

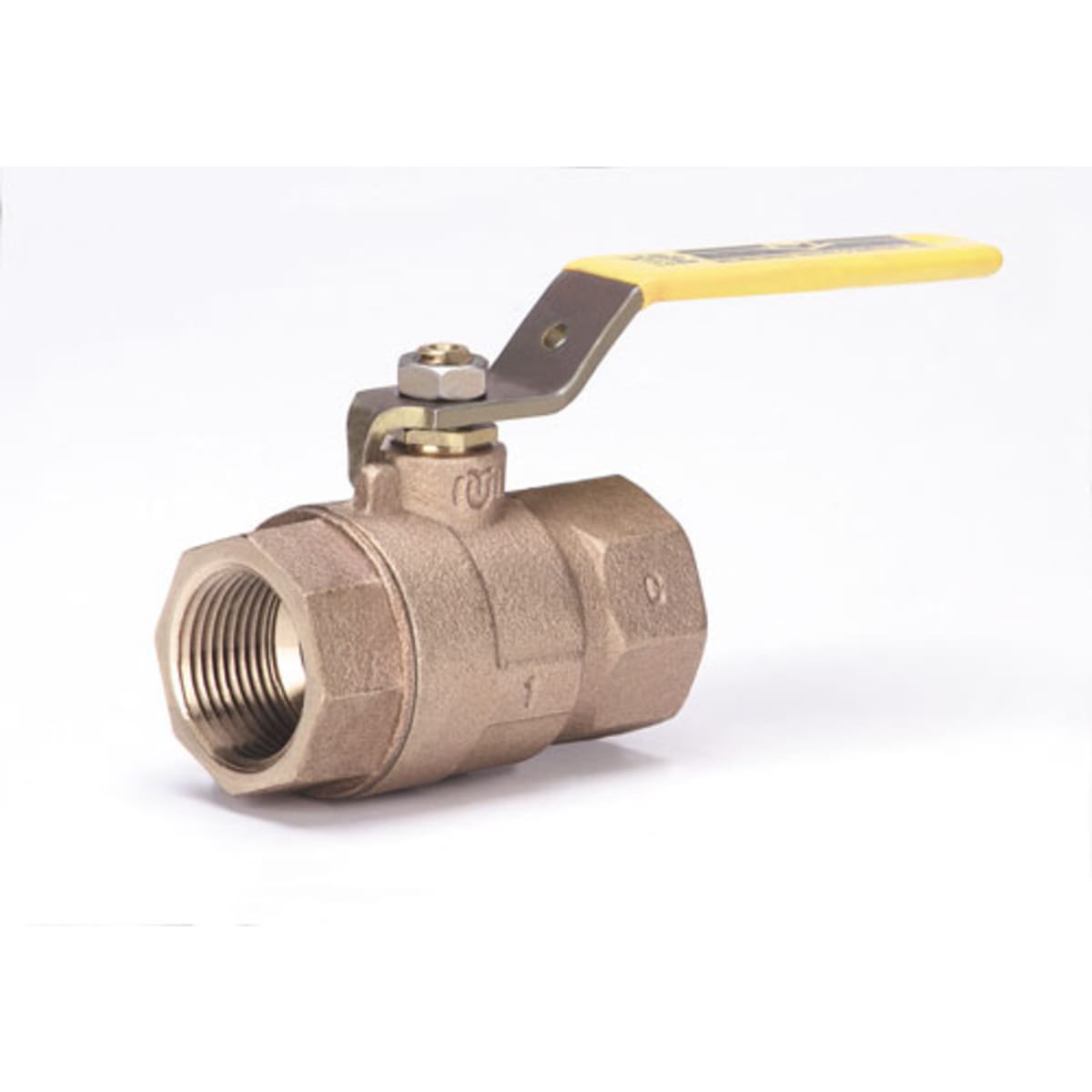

Milwaukee Valve BA-100SA34 BA-100S 3/4 in Cast Bronze Full Port Threaded 600# Ball Valve

Product Description

The Milwaukee Valve BA-100SA34 is a two-piece ball valve designed for various plumbing applications. This valve features a three-quarter inch nominal size, full port design, and is made from durable cast bronze material.

• Standard FNPT end style for easy installation.
• Rated for a maximum pressure of six hundred psi.
• Includes stainless steel ball and RPTFE softgoods for reliability.

Product Highlights

The Milwaukee Valve BA-100SA34 is ideal for use in non-potable water applications. Its blow-out proof stem design ensures safety and durability.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: BA-100SA34

Technical Specifications

• Body Material: Bronze
• End Style: FNPT
• Nominal Size: 3/4 in
• Orifice Size: 0.76 in
• Pressure Rating: 600 psi
• Series: BA-100S
• Softgoods Material: RPTFE
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Inlet to Outlet Length: 2.64 in
• Top to Inlet Center: 2.08 in
• Type: 2-Piece
