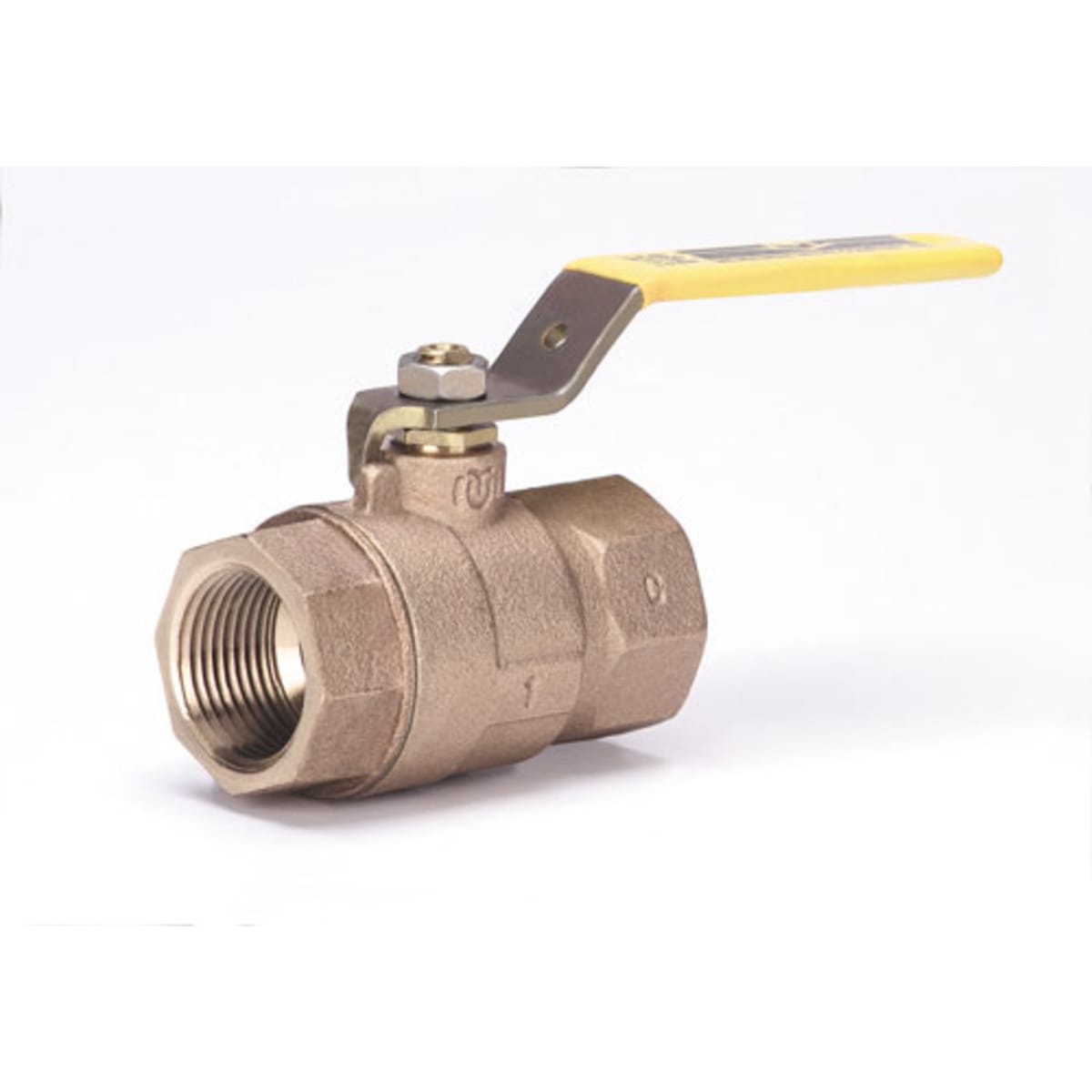

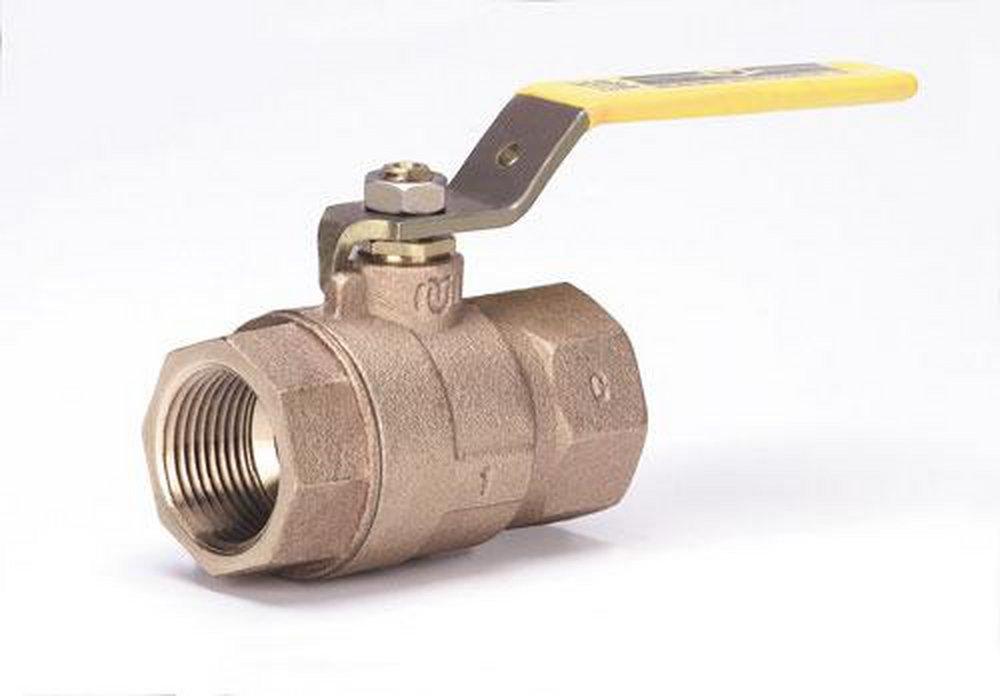

Milwaukee Valve BA-100SA14 BA-100S 1/4 in Cast Bronze Full Port Threaded 600# Ball Valve

Product Description

The Milwaukee Valve BA-100SA14 is a two-piece ball valve made from durable bronze. It features a FNPT end style and offers a full port design for efficient flow control. This valve is rated for a pressure of six hundred psi, and it is not intended for use in potable water systems.

• Full port design allows for maximum flow.
• Blow-out proof stem ensures safety and reliability.
• Constructed with RPTFE softgoods for durability.

Product Highlights

This ball valve is ideal for various piping systems where reliable shut-off control is required.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: BA-100SA14

Technical Specifications

• Body Material: Bronze
• Nominal Size: 1/4 inch
• End Style: FNPT
• Orifice Size: 0.38 inch
• Pressure Rating: 600 psi
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Top to Inlet Center: 1.78 inches
• Inlet to Outlet Length: 1.86 inches
