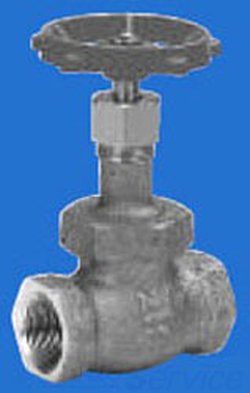

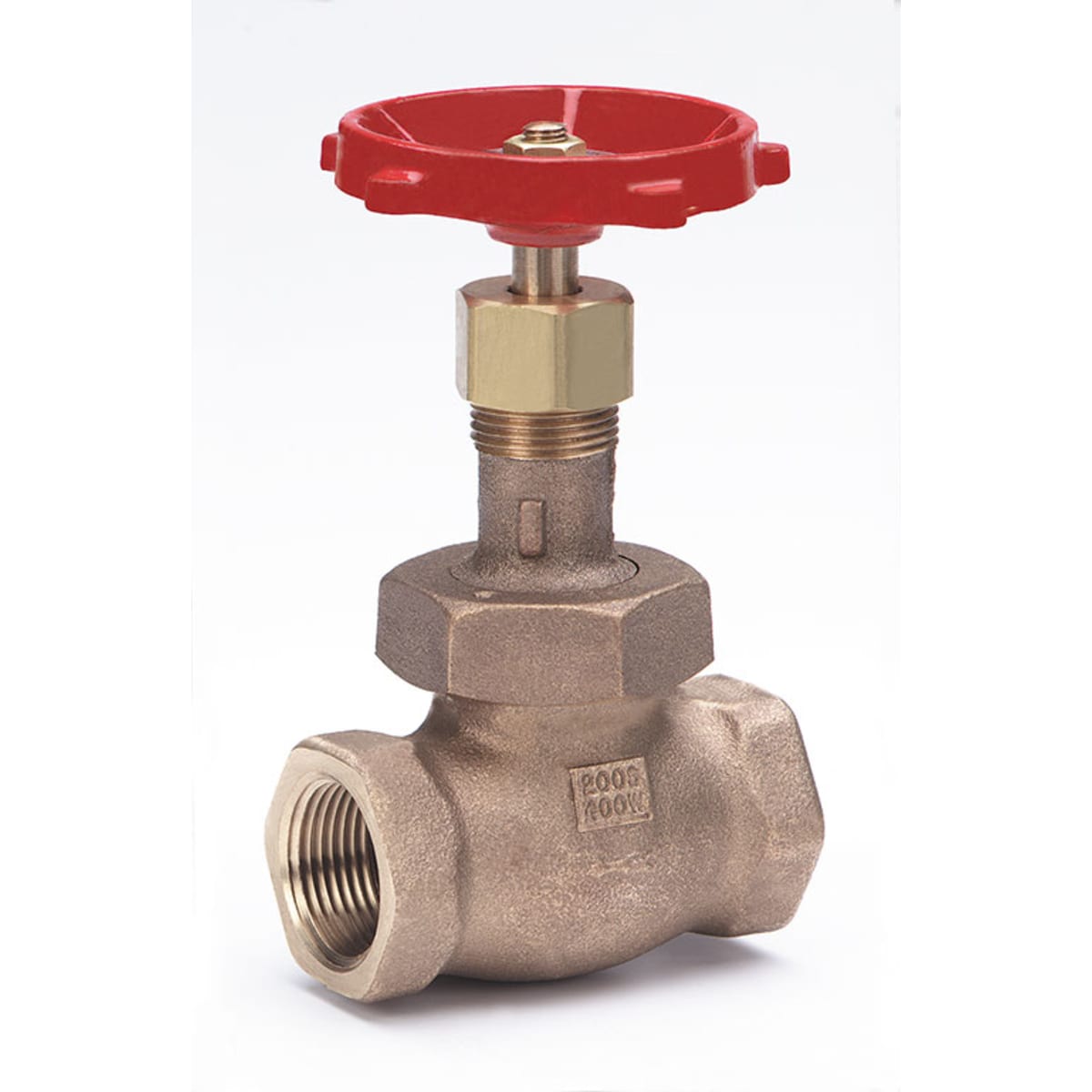

Milwaukee Valve 592A-100 Globe Valve 1 in Nominal Thread End Style Bronze Body

Product Description

The Milwaukee Valve Globe Valve, MPN 592A-100, has a one-inch nominal size and is designed with threaded end style. This globe valve is suited for various fluid applications with a pressure rating of four hundred psi. It features a robust bronze body and trim with graphite packing for durability. The handwheel actuator provides easy manual operation, making it ideal for HVAC, plumbing, and industrial applications.

• One-inch nominal size
• Bronze body and trim
• Handwheel actuator for manual control

Product Highlights

This globe valve is optimal for non-potable water systems and allows for throttling action with a replaceable seat and disc. It is built for heavy-duty service.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: 592A-100

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• End Style: Thread
• Nominal Size: 1 in
• Pressure Rating: 400 psi
• Temperature Rating: 150 deg F
• Inlet to Outlet Length: 3.38 in
• Top to Inlet Center: 5-1/4 in
• Hand Wheel Diameter: 3-1/4 in
• Softgoods Material: Graphite Packing
