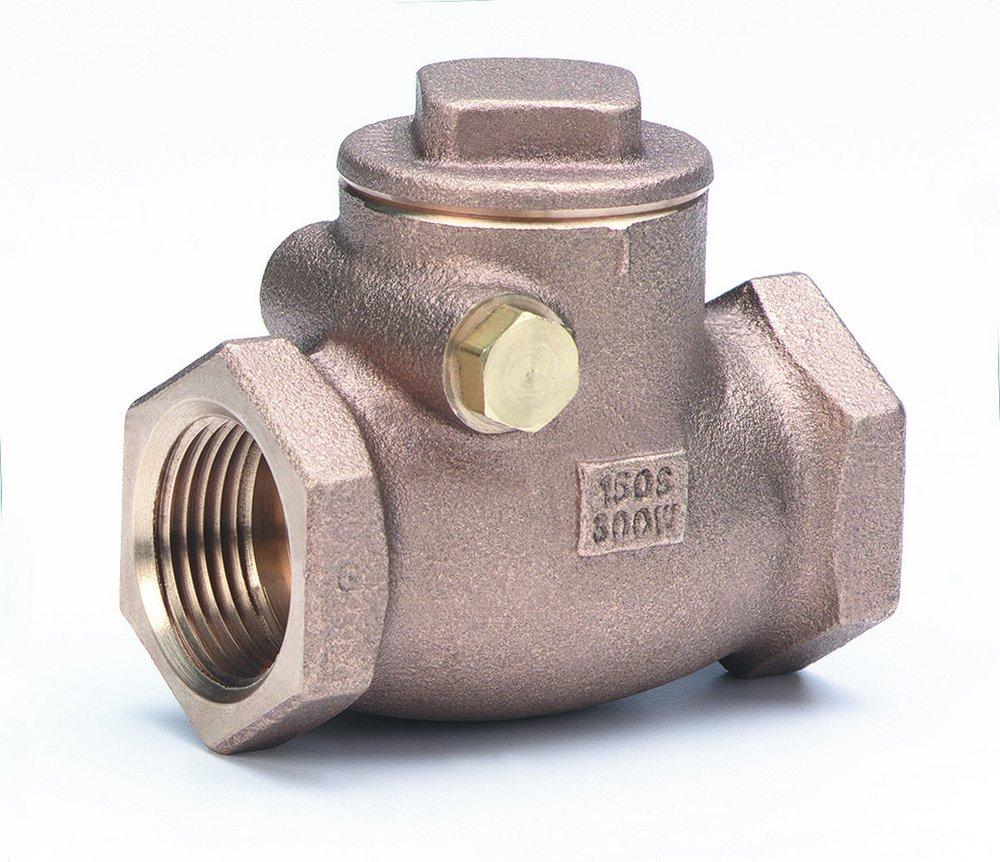

Milwaukee Valve 510T-114 1-1/4 in. Bronze Threaded Check Valve

Product Description

The Milwaukee Valve 510T-114 is a check valve designed for fluid control in plumbing systems. This valve is constructed with a bronze body and features threaded ends for easy installation. It has a maximum working pressure of three hundred pounds per square inch (300 WOG) and is suitable for horizontal installation only.

• Bronze construction for durability and corrosion resistance.
• Lever handle actuator for convenient operation.
• Clear full opening waterway when disc is fully opened.

Product Highlights

This valve is ideal for preventing backflow in various plumbing applications. It is certified to meet industry standards including ANSI/AWWA C508 and certified to ANSI/NSF 61. The valve operates efficiently under a maximum test pressure of four hundred pounds per square inch (400 psig).

Product Information

Standard Information

• Brand: Milwaukee Valve
• Part Number: 510T-114

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Thread
• Inlet to Outlet Length: 3.56 inches
• Low Lead Compliance: No
• Nominal Size: 1-1/4 inches
• Series: 510T
• Standards/Approvals: ASTM B62 Body | MSS SP-80 Type 4 | PROP65: Cancer and Reproductive Harm
• Top to Inlet Center: 2.13 inches
• Trim Material: PTFE/Bronze
• Type: Horizontal
