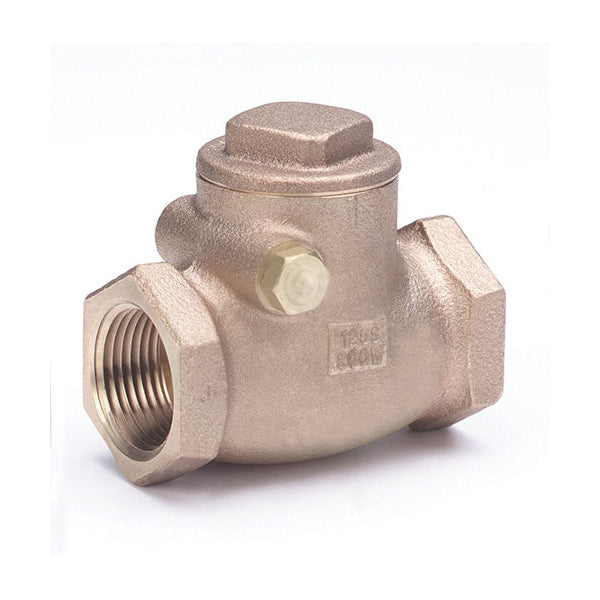

Milwaukee Valve 509T-200 Horizontal Swing Check Valve 2 in Nominal Thread End Style 200 lb WOG

Product Description

The Milwaukee Valve 509T-200 is a horizontal swing check valve featuring a nominal size of two inches and accepts threaded end connections. It operates under a pressure class of 200 lb WOG and has a bronze body for durability.

• Manufactured by Milwaukee Valve
• Lever handle actuator for easy operation
• Standardized for various plumbing applications

Product Highlights

This check valve is designed to prevent backflow in plumbing systems, particularly suitable for non-potable water applications.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: 509T-200

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Bronze
• End Style: Thread
• Nominal Size: 2 in
• Pressure Class: 200 lb WOG
• Inlet to Outlet Length: 4-3/4 in
• Top to Inlet Center: 2.81 in
• Trim Material: PTFE
• Low Lead Compliance: No
• Standards/Approvals: ASTM B62 Body, MSS SP-80 Type 4
