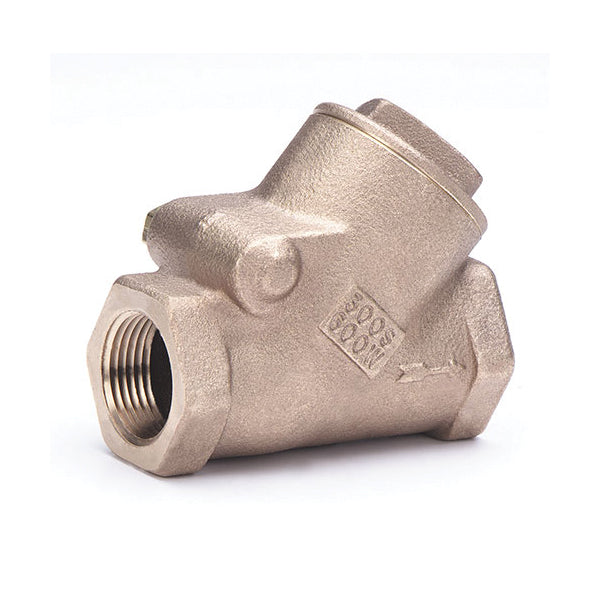

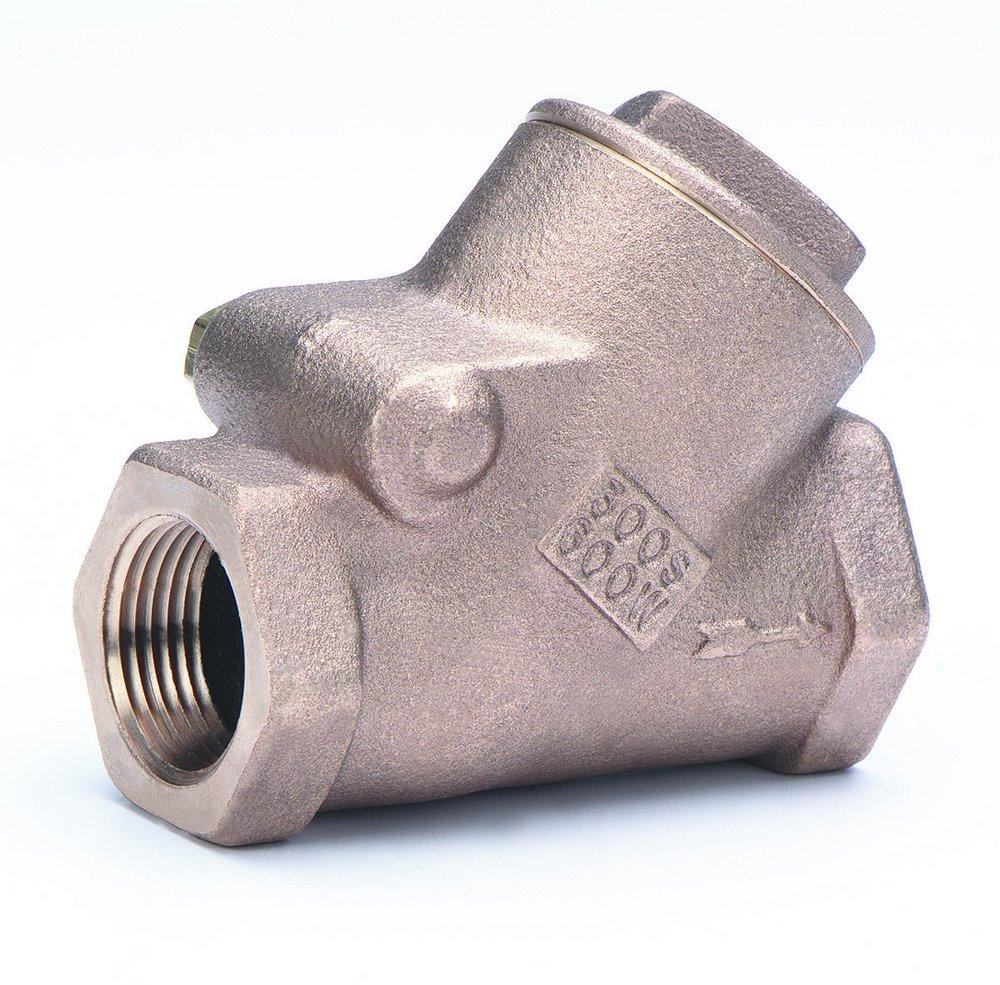

Milwaukee Valve 507-112 Horizontal Y-Pattern Swing Check Valve 600 lb WOG, 1-1/2 inch

Product Description

The Milwaukee Valve 507-112 is a one and a half inch bronze threaded swing check valve designed for horizontal Y-pattern installations. This valve is suited for non-potable uses, providing reliable performance in various applications.

• Single moving part design for ease of use.
• Factory-installed back flushing actuator available as an option.
• Fusion bonded epoxy coated for durability and corrosion resistance.

Product Highlights

This swing check valve is ideal for buried service and eliminates the need for O-rings, packing pins, bushings, or bearings, reducing maintenance requirements.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: 507-112

Technical Specifications

• Nominal Size: 1-1/2 inch
• End Style: Threaded
• Body Material: Bronze
• Pressure Rating: 600 lb WOG
• Actuator Type: Lever Handle
• Inlet to Outlet Length: 5 inches
• Top to Inlet Center: 3.31 inches
• Standards/Approvals: ASTM B61 Body/Disc, MSS SP-80 Type 3
