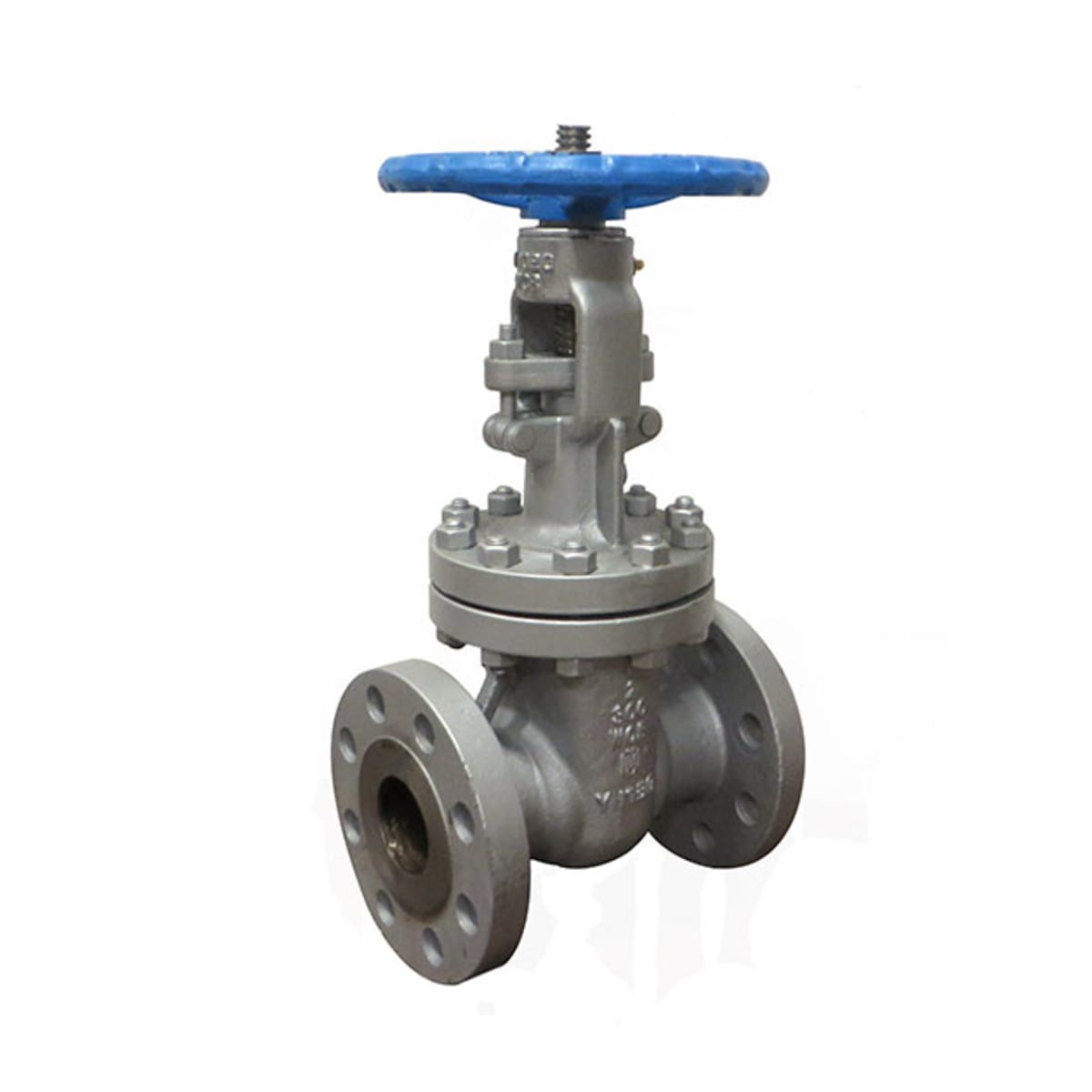

Milwaukee Valve 3050CB2HWM030 Cast Steel Gate Valve 300 Class 3 in

Product Description

The Milwaukee Valve, model 3050CB2HWM030, features a cast steel gate valve designed for heavy-duty applications. This valve, classified at 300 pounds, is suitable for piping systems requiring reliable shut-off control. It operates with an outside screw and yoke design, ensuring durability and ease of operation.

• Nominal size: 3 inches
• Flange x flange connection type
• Temperature range: -20 to 800 degrees Fahrenheit

Product Highlights

This gate valve offers excellent performance in high-pressure environments. Its handwheel actuator allows for straightforward manual operation. The valve is made of cast steel for strength and longevity.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: 3050CB2HWM030

Technical Specifications

• Material: Cast Steel
• Connection Type: Flange x Flange
• Nominal Size: 3 in
• Pressure Class: 300 lb
• Actuator Type: Handwheel
• Inlet to Outlet Length: 11.12 in
• Top to Inlet Center: 19.02 in
• Hand Wheel Diameter: 9.84 in
• Trim Material: 410 Stainless Steel Stem
• Softgoods Material: Graphite
• Temperature Rating: -20 to 800 deg F
• Series: 3050
