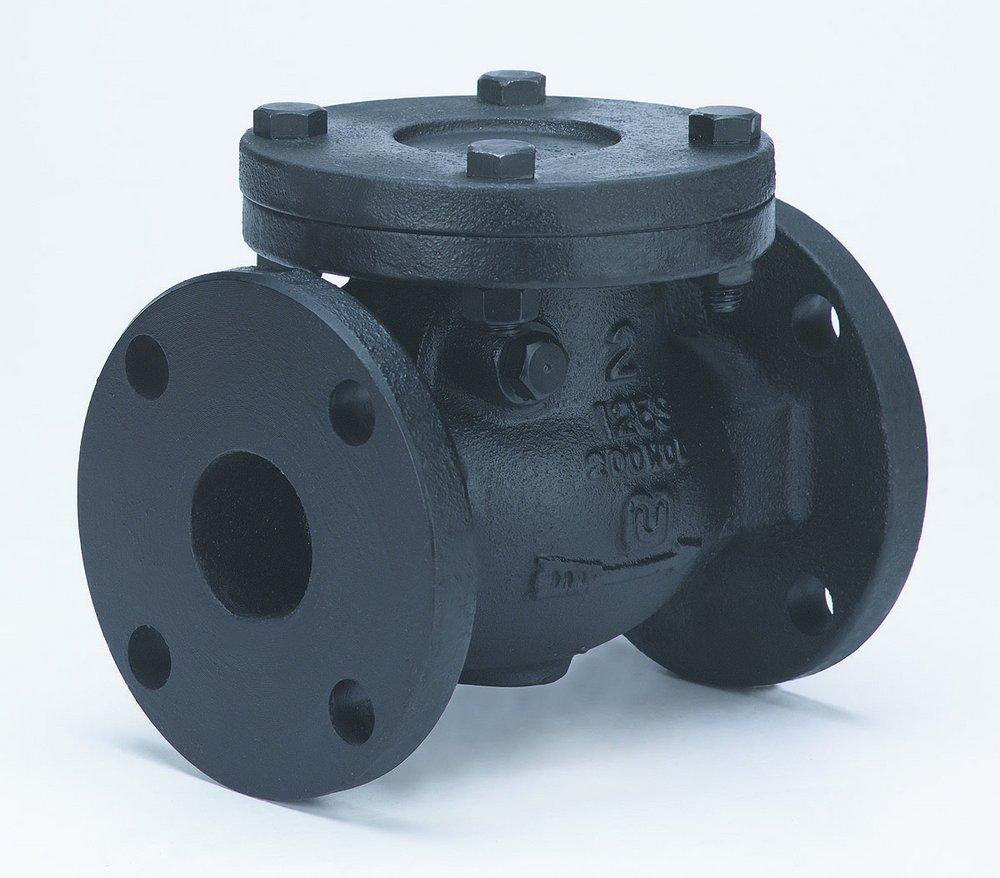

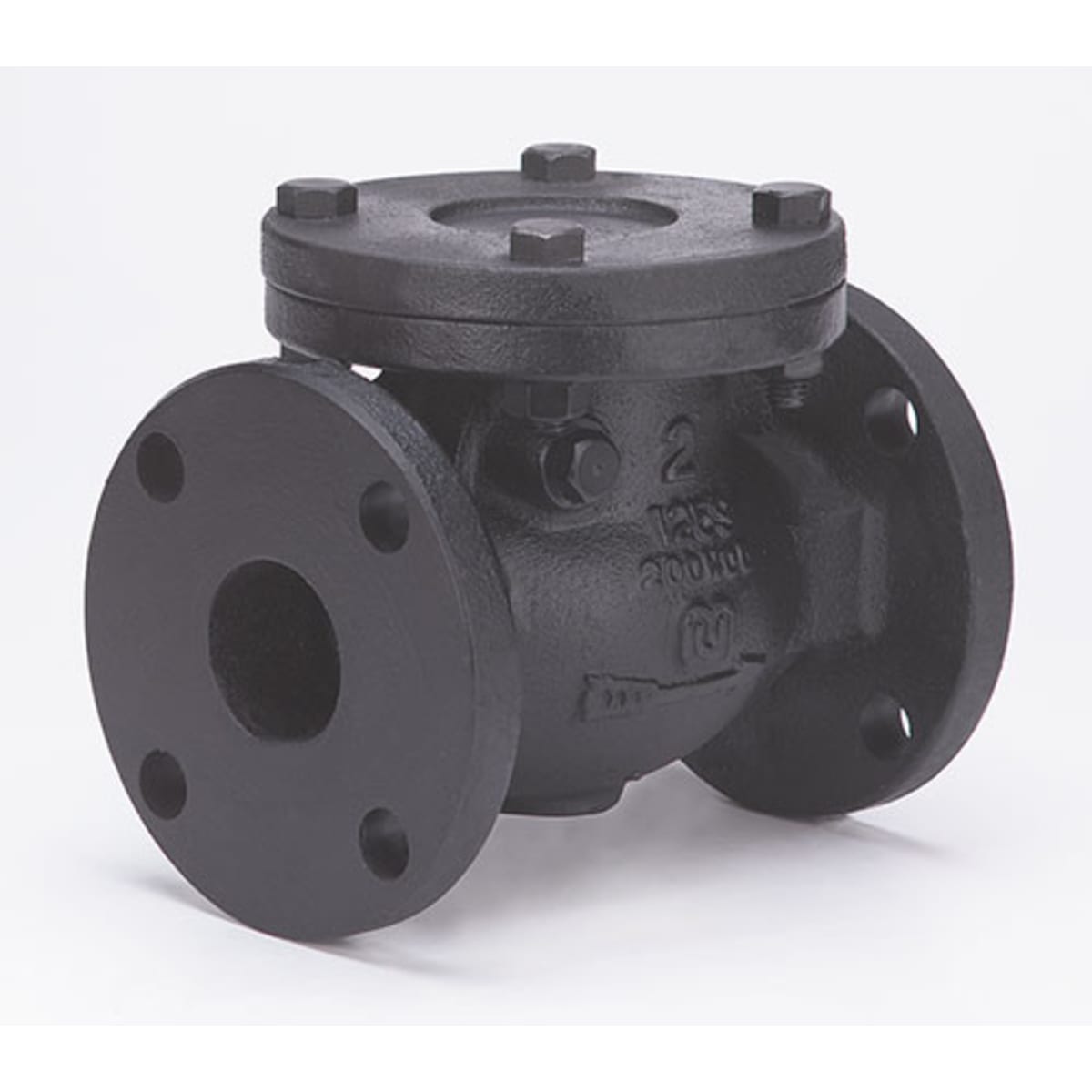

Milwaukee Valve 2974A-300 F-2974A Horizontal Swing Check Valve 3 in Flanged End Style

Product Description

The Milwaukee Valve F-2974A is a three-inch horizontal swing check valve designed for reliable operation in various piping systems. Its design includes flanged ends for easy installation and maintenance. The valve is made from cast iron, which ensures durability and longevity in demanding environments.

• Flanged end style for straightforward installation.
• Constructed from durable cast iron material.
• Designed for horizontal flow applications.

Product Highlights

This valve is suitable for applications requiring low lead compliance and provides a secure shut-off with liquid media. It is efficient for fluid control and meets industry standards.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: 2974A-300

Technical Specifications

• Body Material: Cast Iron
• End Style: Flanged
• Nominal Size: 3 in
• Pressure Rating: 125 psi WSP, 200 psi WOG Non-Shock
• Length from Inlet to Outlet: 9-1/2 in
• Top to Inlet Center Distance: 5.13 in
• Disc Material: Cast Iron
• Trim Material: Bronze/Cast Iron
• Softgoods Material: Graphite
• Standards/Approvals: ASME B16.1 | ASTM A126 Class B Body/Disc | MSS SP-71 Type 1
