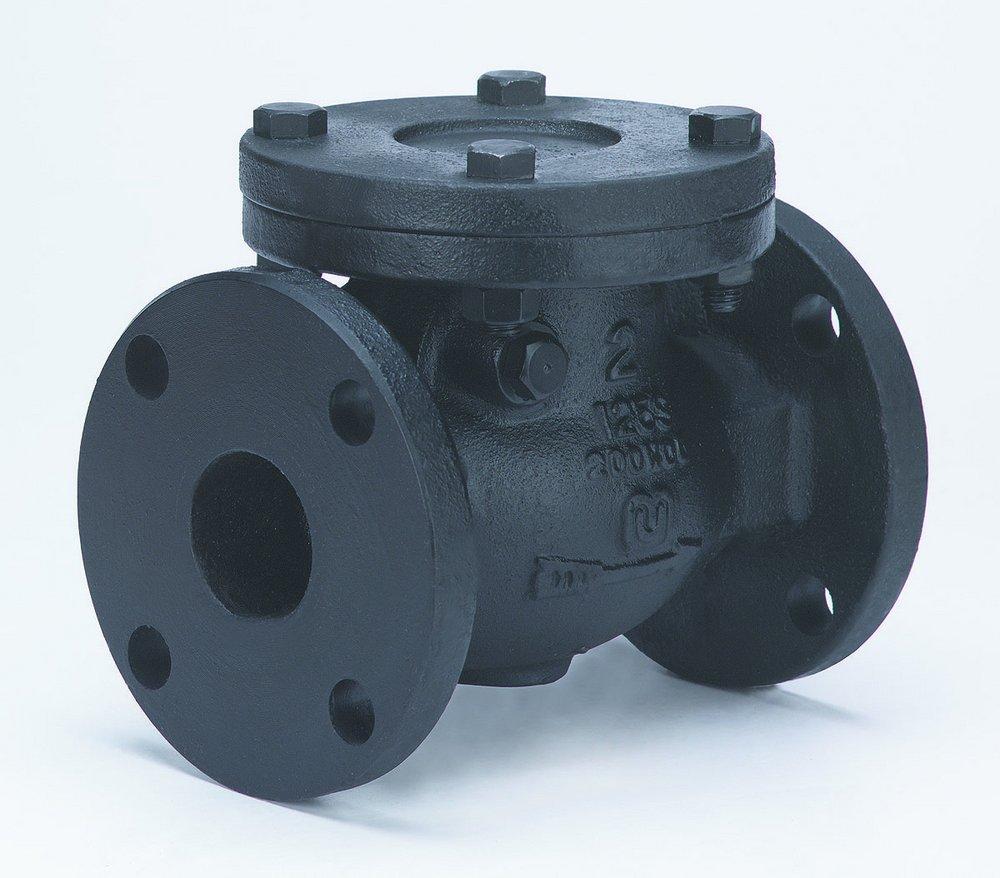

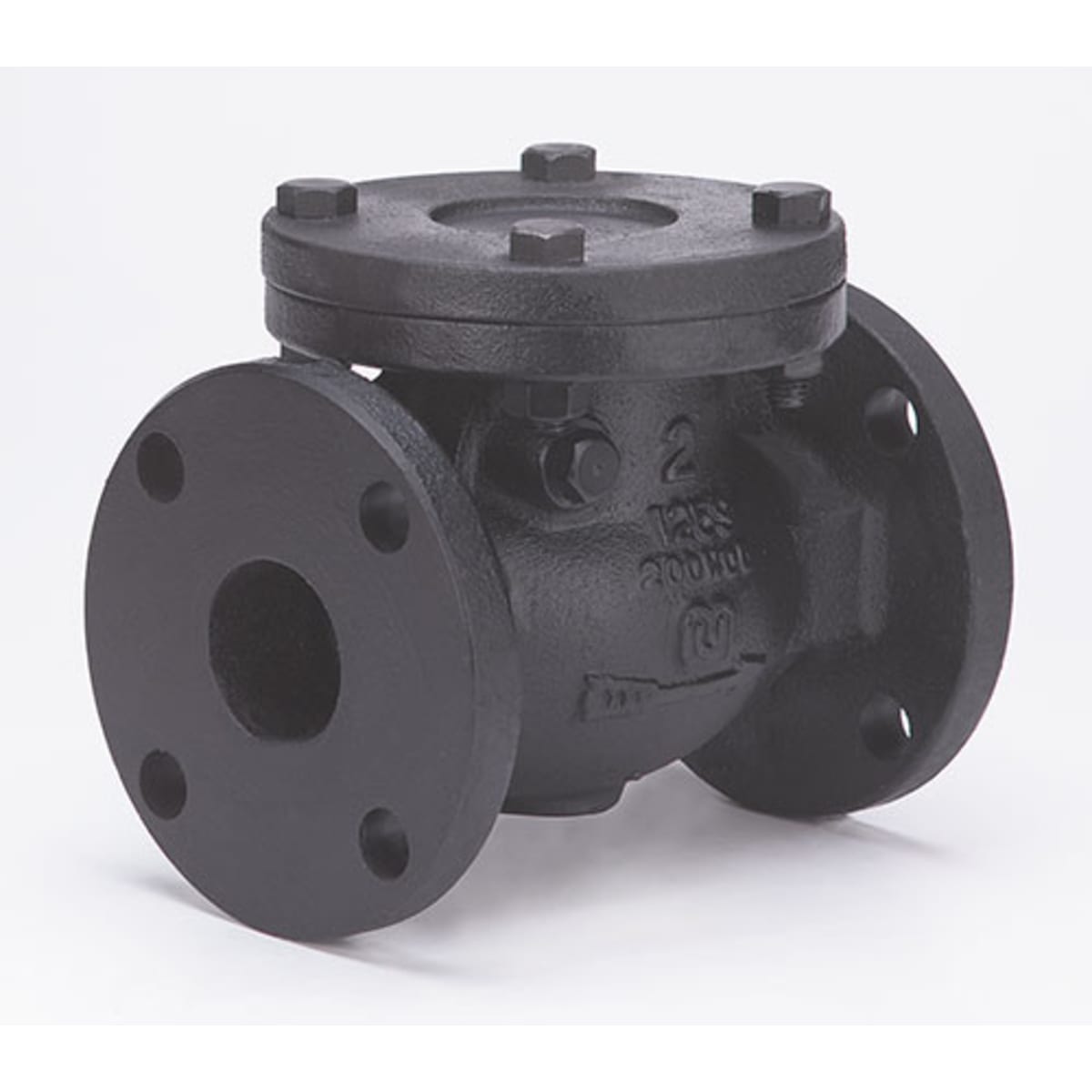

Milwaukee Valve 2974A-212 F-2974A Swing Check Valve 125 lb 2-1/2 in

Product Description

The Milwaukee Valve F-2974A-212 is a horizontal swing check valve designed for efficient flow control. This valve has a nominal size of two and one-half inches and features a cast iron body for durability. Its design includes flanged ends and is rated for a pressure class of 125 lb.

• Flanged end style for easy installation
• Constructed of corrosion-resistant cast iron
• Meets various standards for quality and safety

Product Highlights

This swing check valve is ideal for a range of plumbing applications where backflow prevention is necessary. It is built to handle both water and gas service, ensuring reliable performance in diverse systems.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: 2974A-212

Technical Specifications

• Body Material: Cast Iron
• Nominal Size: 2-1/2 inches
• End Style: Flanged
• Pressure Rating: 125 lb SWP
• Inlet to Outlet Length: 8-1/2 inches
• Top to Inlet Center: 4-1/2 inches
• Trim Material: Bronze/Cast Iron
• Standards/Approvals: ASME B16.1, ASTM A126 Class B Body/Disc, MSS SP-71 Type 1
