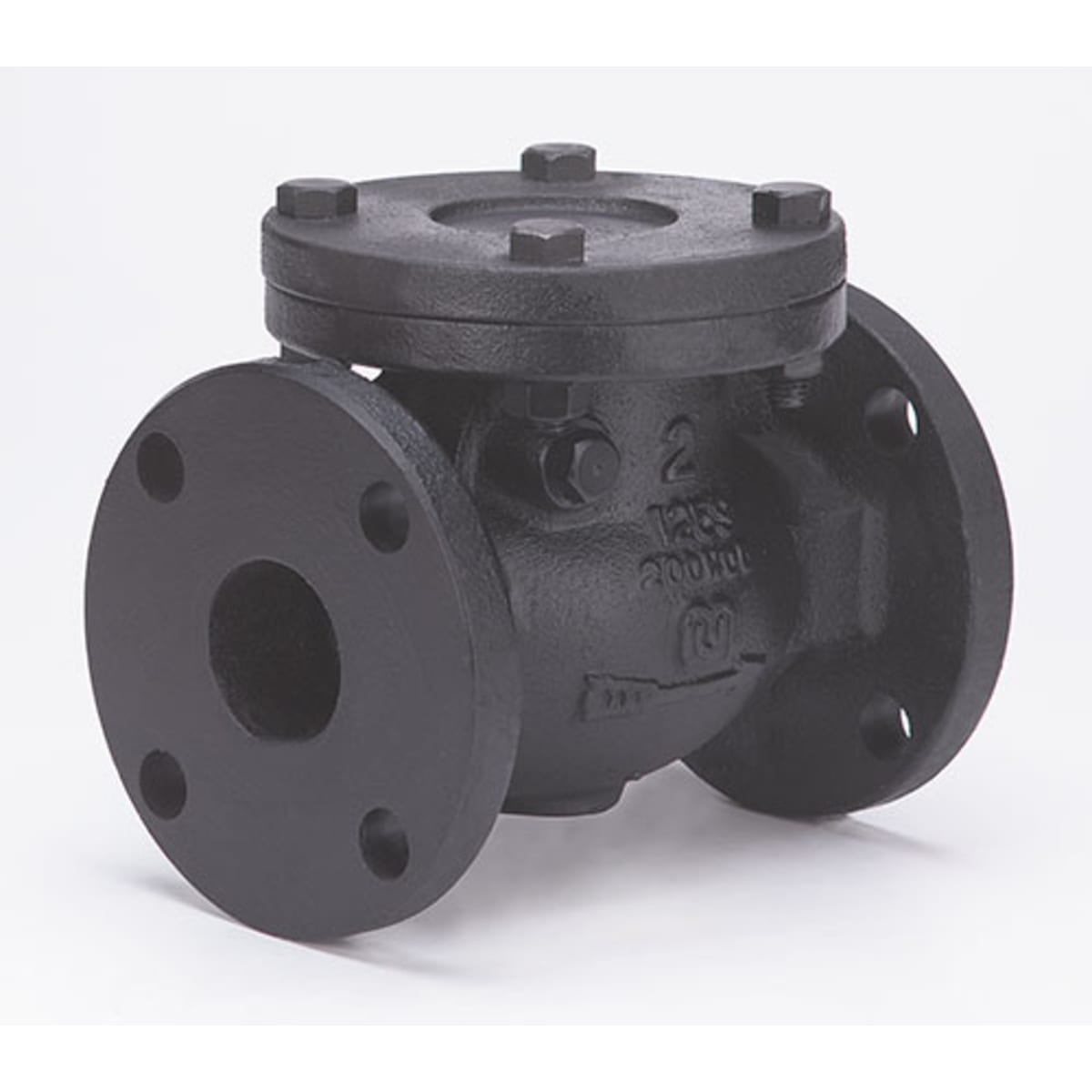

Milwaukee Valve 2974-M-800 F-2974M Horizontal Swing Check Valve, 8 in Nominal, Flanged End Style, 125 lb

Product Description

Milwaukee Valve 2974-M-800 is an eight inch flanged horizontal swing check valve. This valve is designed to maintain flow in one direction and prevent backflow in pipelines. It features a cast iron body with bronze and cast iron trim for durability.

• Nominal size of eight inches.
• Flanged end style for easy installation.
• Rated for 125 lb of pressure.

Product Highlights

The Milwaukee Valve 2974-M-800 is suitable for various industrial applications where flow containment is necessary. It is built to meet stringent standards for performance and reliability.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: 2974-M-800

Technical Specifications

• Body Material: Cast Iron
• Nominal Size: 8 in
• End Style: Flanged
• Inlet to Outlet Length: 19-1/2 in
• Top to Inlet Center: 10.38 in
• Trim Material: Bronze/Cast Iron
• Softgoods Material: Graphite
• Model: F-2974M
• Pressure Rating: 125 psi WSP, 200 psi WOG Non-Shock
• Flow Coefficient: 2670 Cv
