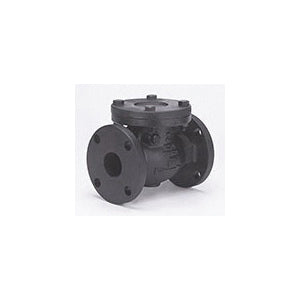

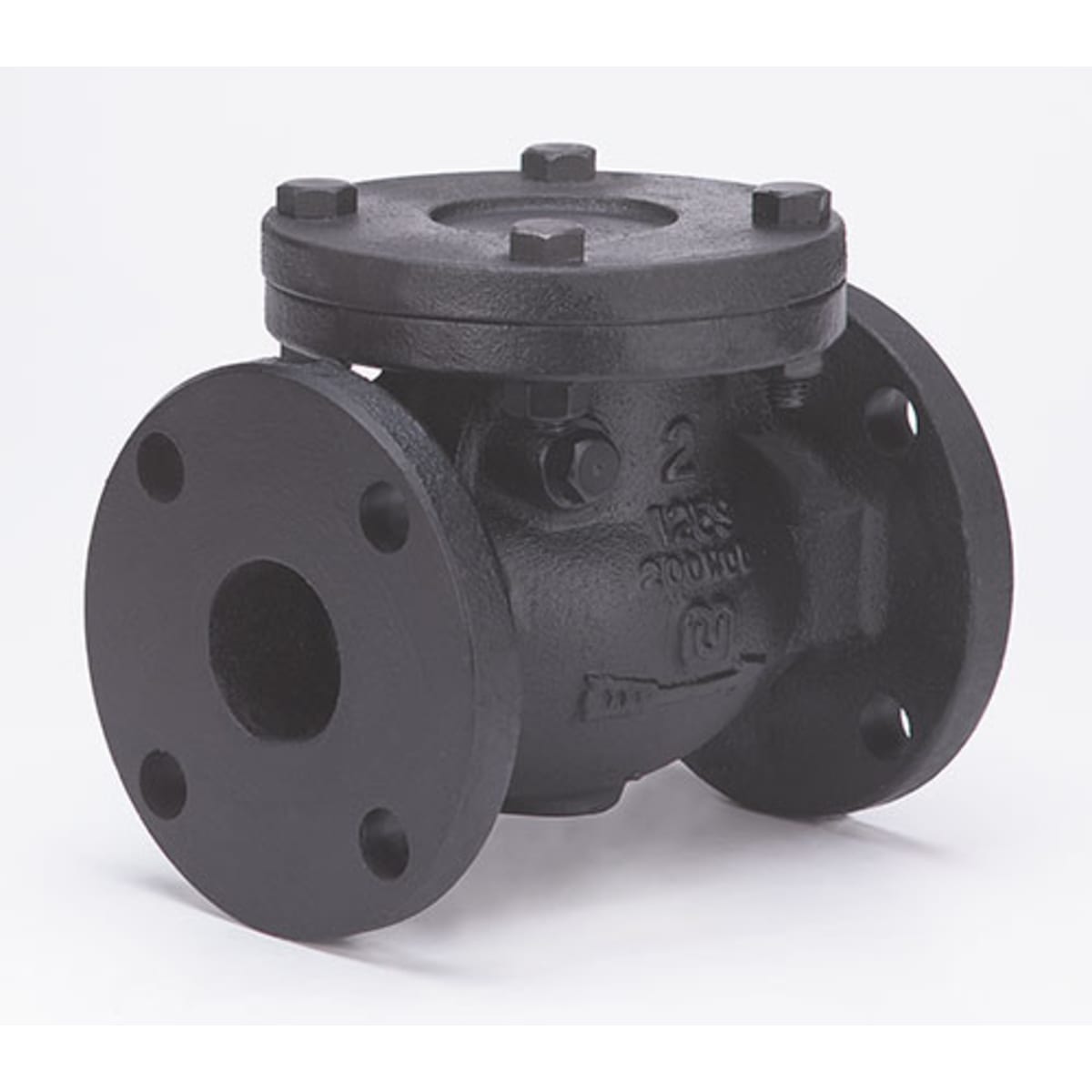

Milwaukee Valve 2974-M-600 F-2974M Horizontal Swing Check Valve 6 in Nominal

Product Description

The Milwaukee Valve 2974-M-600 is a reliable horizontal swing check valve designed for efficient fluid control in various applications. It features a flanged end style and a nominal size of six inches. This valve has a pressure class of one hundred twenty-five pounds and is made from a durable cast iron body with bronze trim.

• Designed for horizontal applications
• Constructed with cast iron and graphite softgoods
• Complies with ASTM standards for high reliability

Product Highlights

This valve is ideal for use in piping systems where backflow prevention is necessary. Its simple design allows for easy installation and maintenance.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Part Number: 2974-M-600

Technical Specifications

• Body Material: Cast Iron
• Nominal Size: 6 in
• End Style: Flanged
• Pressure Rating: 125 psi WSP, 200 psi WOG Non-Shock
• Trim Material: Bronze/Cast Iron
• Inlet to Outlet Length: 14 in
• Top to Inlet Center: 9-1/2 in
• Standards/Approvals: ASTM A126 Class B Body/Disc, ASME B 16.1, MSS SP-71 Type 1
• Softgoods Material: Graphite
