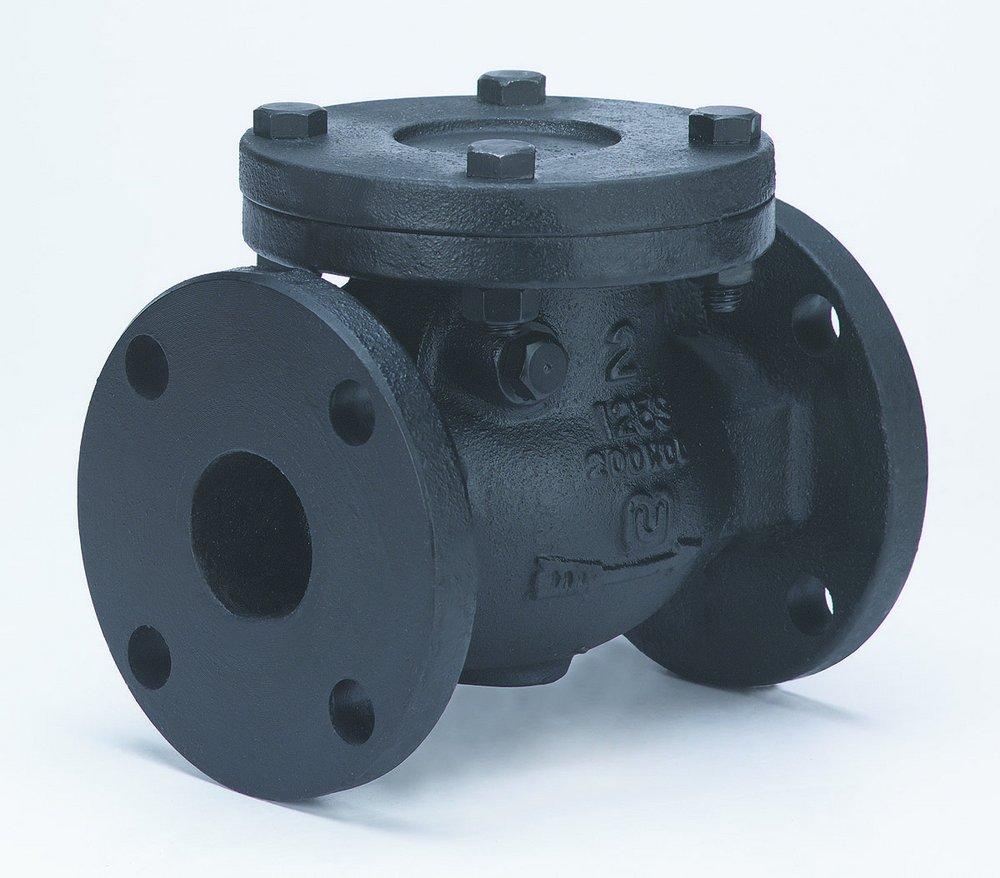

Milwaukee Valve 2974-M-400 F-2974M 4 in Cast Iron Flanged Swing Check Valve

Product Description

The Milwaukee Valve F-2974M is a four-inch cast iron flanged swing check valve, model number 2974-M-400. This valve is used to prevent backflow in pipelines. It is suitable for various applications including commercial and industrial settings.

• Made with an integral metal-to-metal seat design.
• Constructed from durable cast iron material.
• Features a backseat stem design to extend packing life.

Product Highlights

This check valve is pressure rated for one hundred twenty-five pounds steam working pressure and two hundred pounds water working pressure. It is designed for horizontal flow and measures eleven and a half inches from inlet to outlet. The trim includes bronze and cast iron components.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: 2974-M-400

Technical Specifications

• Type: Horizontal
• Material: Cast Iron
• End Style: Flanged
• Nominal Size: 4 in
• Inlet to Outlet Length: 11-1/2 in
• Top to Inlet Center: 6.69 in
• Trim Material: Bronze/Cast Iron
• Standard Compliance: ASTM A126 Class B Body/Disc, ASME B 16.1, MSS SP-71 Type 1
