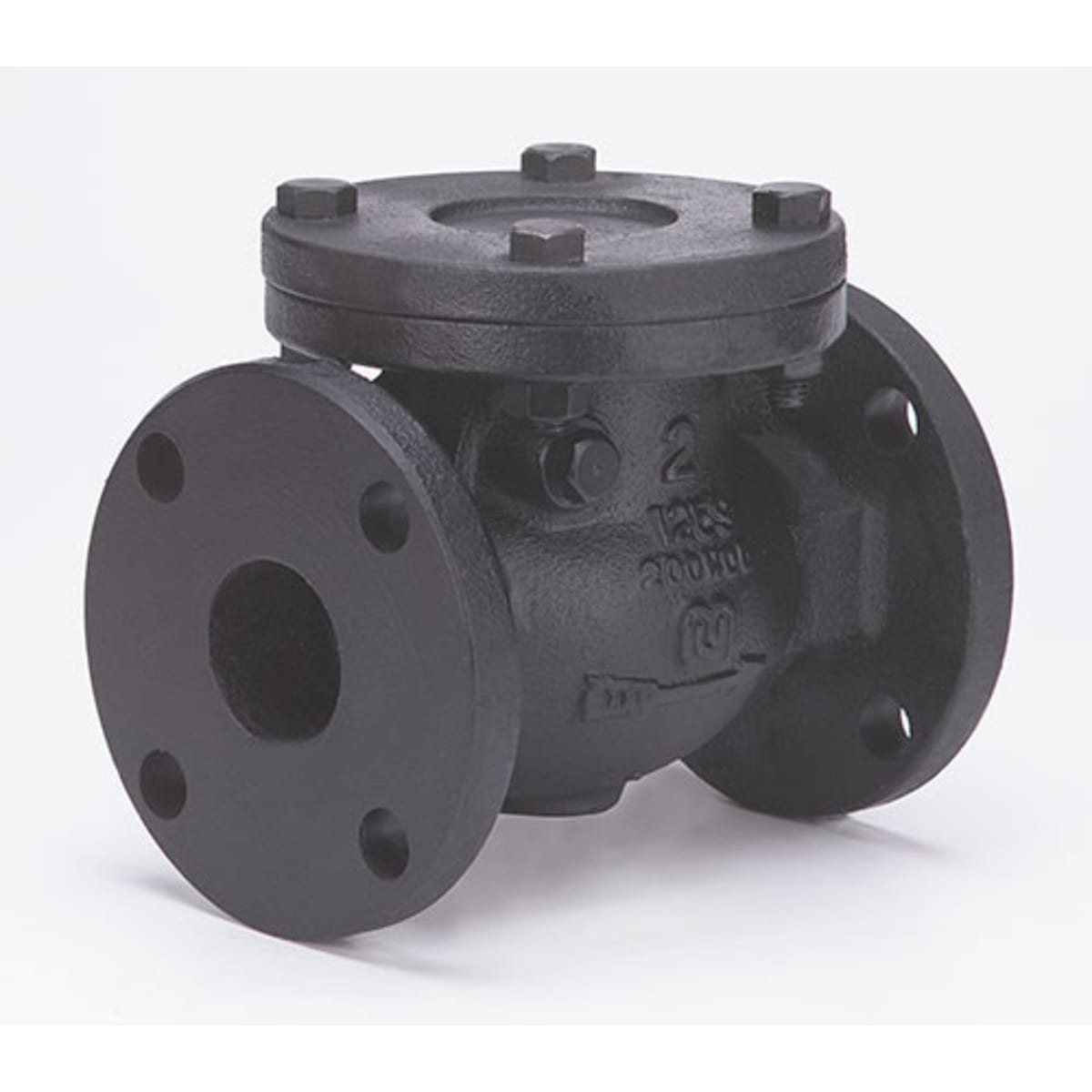

Milwaukee Valve 2974-M-300 F-2974M Horizontal Swing Check Valve 3 in Replacement MPN

Product Description

The Milwaukee Valve 2974-M-300 is a horizontal swing check valve designed for fluid control. This valve features a nominal size of three inches and has flanged ends. It is built from cast iron with bronze trim and graphite softgoods.

• Designed for horizontal applications.
• Constructed with cast iron body and bronze trim.
• Meets 125 lb pressure class standards.

Product Highlights

This valve prevents backflow in piping systems and is suitable for various fluids.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: 2974-M-300

Technical Specifications

• Body Material: Cast Iron
• End Style: Flanged
• Inlet to Outlet Length: 9-1/2 inches
• Top to Inlet Center: 5.56 inches
• Softgoods Material: Graphite
• Pressure Class: 125 psi SWP, 200 psi WOG Non-Shock
• Standards/Approvals: ASTM A126 Class B Body/Disc, ASME B 16.1, MSS SP-71 Type 1
• Trim Material: Bronze/Cast Iron
