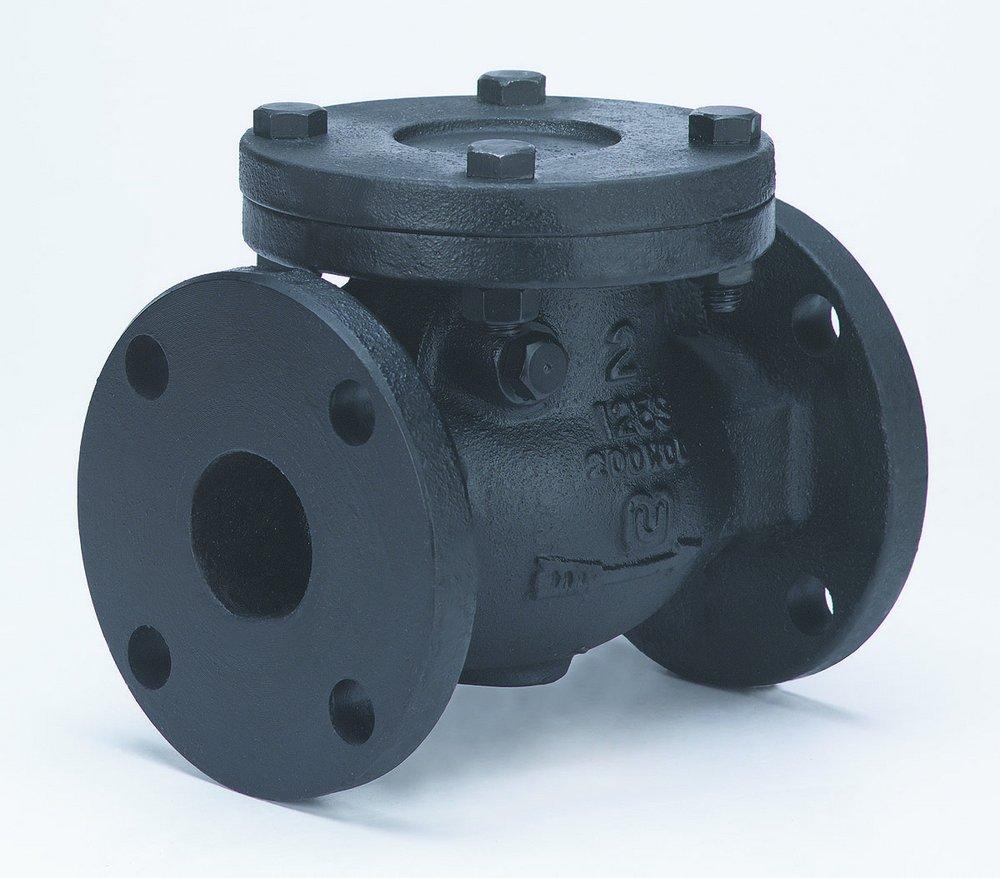

Milwaukee Valve 2974-M-212 F-2974M Horizontal Swing Check Valve 125 SWP 2-1/2 in

Product Description

The Milwaukee Valve F-2974M model with MPN 2974-M-212 is a horizontal swing check valve designed for efficient flow control in various piping systems. This valve features flanged ends and is made from cast iron, making it suitable for high-pressure applications up to 125 SWP and 200 WOG. Ideal for both domestic and commercial use, this valve ensures reliable operation while helping to prevent backflow.

• Horizontal swing design for effective flow regulation.
• Constructed from durable cast iron for long-lasting performance.
• Conforms to MSS SP-71 standards for quality assurance.

Product Highlights

This check valve is ideal for plumbing and HVAC applications, providing excellent durability and reliability.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: 2974-M-212

Technical Specifications

• Type: Horizontal
• Nominal Size: 2-1/2 in
• Body Material: Cast Iron
• End Style: Flanged
• Inlet to Outlet Length: 8-1/2 in
• Top to Inlet Center: 5.38 in
• Pressure Rating: 125 psi WSP, 200 psi WOG Non-Shock
• Trim Material: Bronze/Cast Iron
• Softgoods Material: Graphite
• Standards/Approvals: ASTM A126 Class B Body/Disc, ASME B 16.1, MSS SP-71 Type 1
