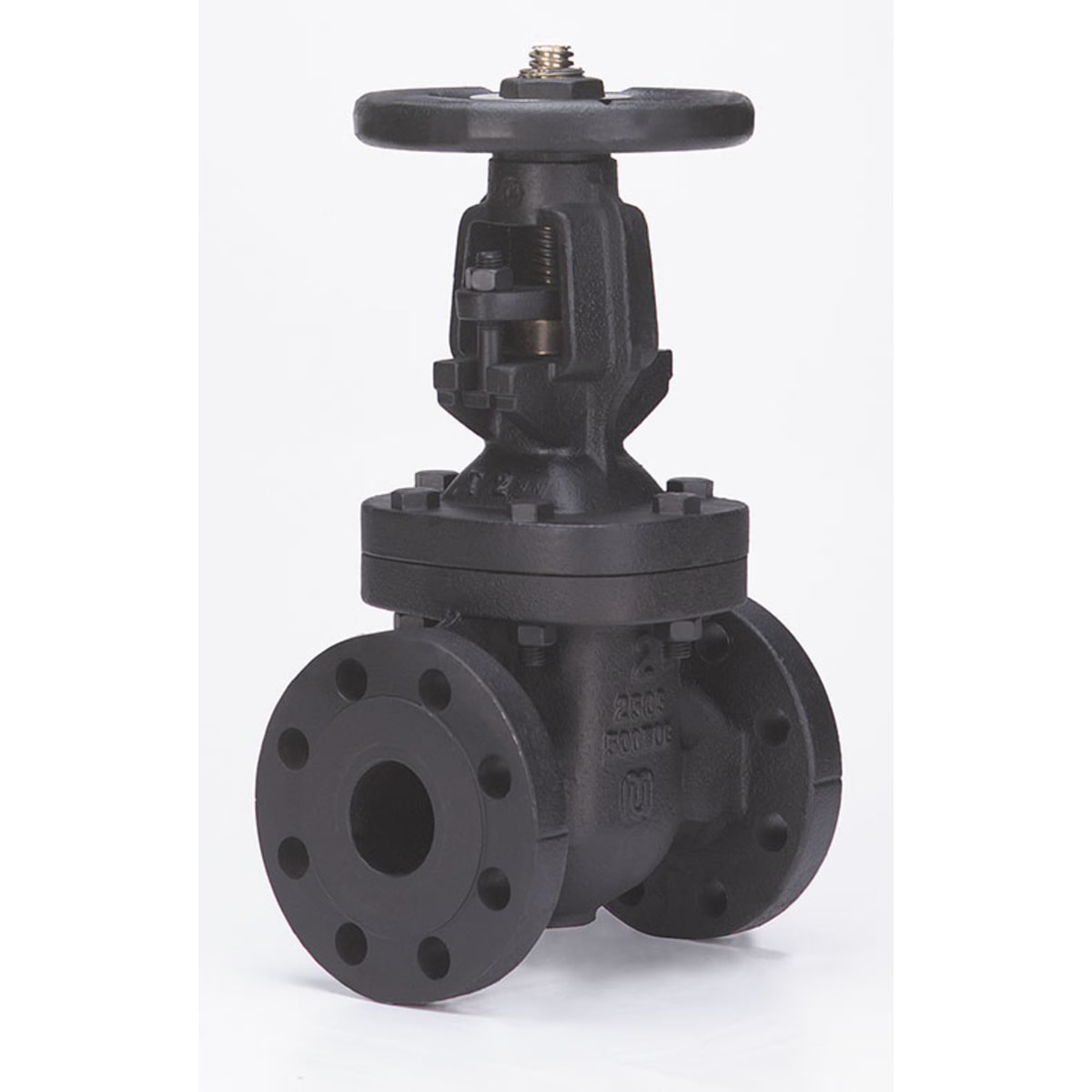

Milwaukee Valve 2894-M-500 F-2894-M Gate Valve, 5 in Nominal, Flanged End Style, Cast Iron Body

Product Description

Milwaukee Valve 2894-M-500 is a five-inch nominal flanged gate valve designed for reliability in a variety of applications. This valve conforms to MSS SP-70 standards and features a cast iron body suitable for high-pressure environments.

• Pressure rated for 250 SWP to 500 WOG
• Handwheel actuator for ease of operation
• Gland packed design for improved sealing

Product Highlights

This flanged gate valve offers robust construction and a solid wedge disc that ensures effective flow control. Its handwheel actuator simplifies operation in demanding settings.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Part Number: 2894-M-500

Technical Specifications

• Nominal Size: 5 in
• Body Material: Cast Iron
• End Style: Flanged
• Actuator Type: Handwheel
• Pressure Rating: 500 psi WOG
• Inlet to Outlet Length: 15 in
• Top to Inlet Center: 25-3/4 in
• Trim Material: Brass
• Softgoods Material: Graphite Packing
• Standards/Approvals: ASME B16.1, ASTM A126 Class B Body/Handwheel, ASTM B16 Stem, MSS SP-70
• Hand Wheel Diameter: 12 in
• Domestic/Import: Import
