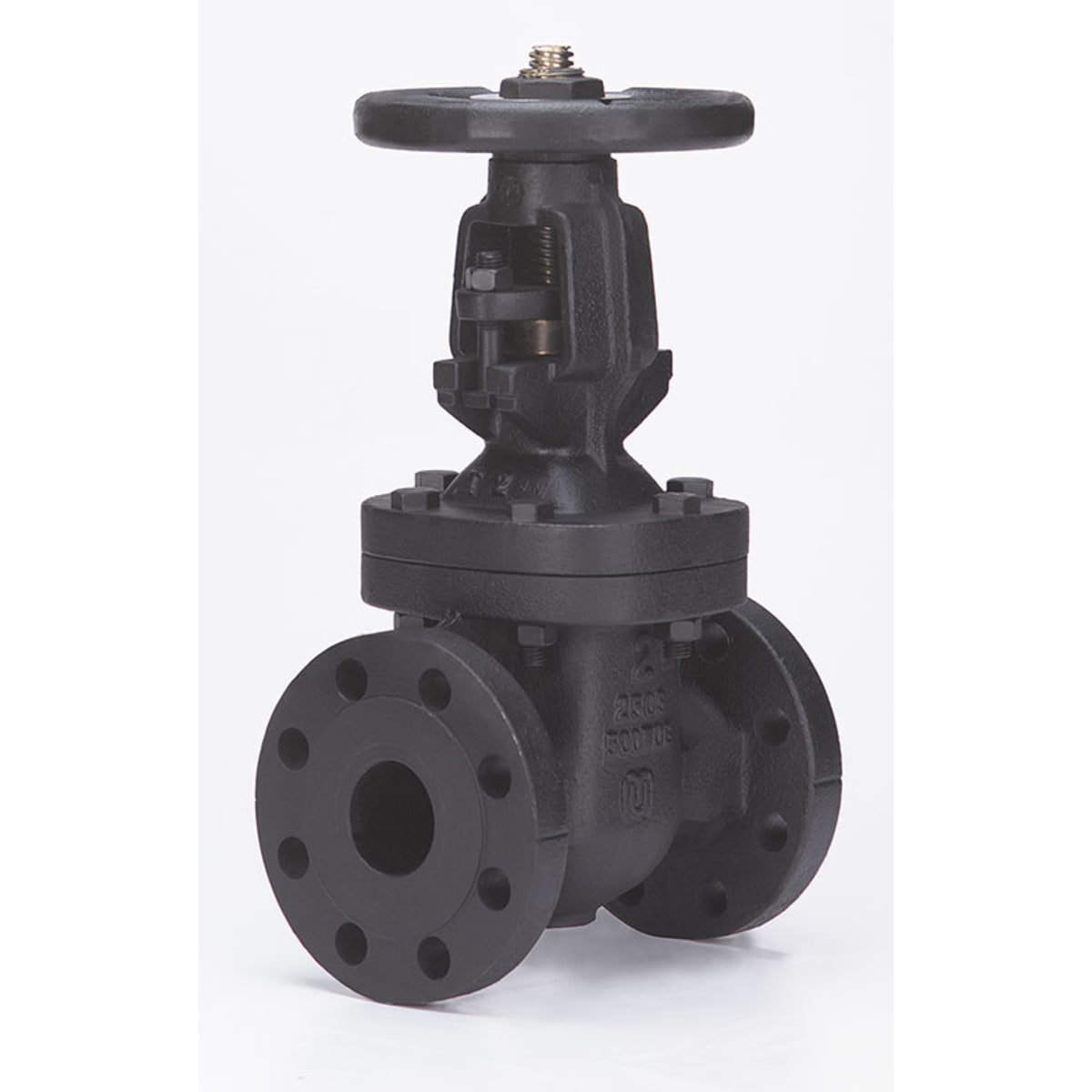

Milwaukee Valve 2894-M-400 F-2894-M Gate Valve, 4 in Nominal, Flanged End Style, Cast Iron Body, Handwheel Actuator

Product Description

The Milwaukee Valve 2894-M-400 F-2894-M Gate Valve is designed for use in various industrial applications. It features a flanged end style with a nominal size of four inches, making it a suitable option for reliable flow control. This gate valve is constructed with a cast iron body and is rated for a maximum pressure of five hundred psi WOG.

• Flanged end style for easy installation.
• Equipped with a handwheel actuator for smooth operation.
• Solid wedge disc design for optimal sealing performance.

Product Highlights

Ideal for both commercial and residential plumbing systems, this gate valve ensures durability and consistent operation under high pressure.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: 2894-M-400

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Iron
• End Style: Flanged
• Nominal Size: 4 in
• Pressure Rating: 500 psi WOG
• Hand Wheel Diameter: 12 in
• Inlet to Outlet Length: 12 in
• Top to Inlet Center: 23.63 in
