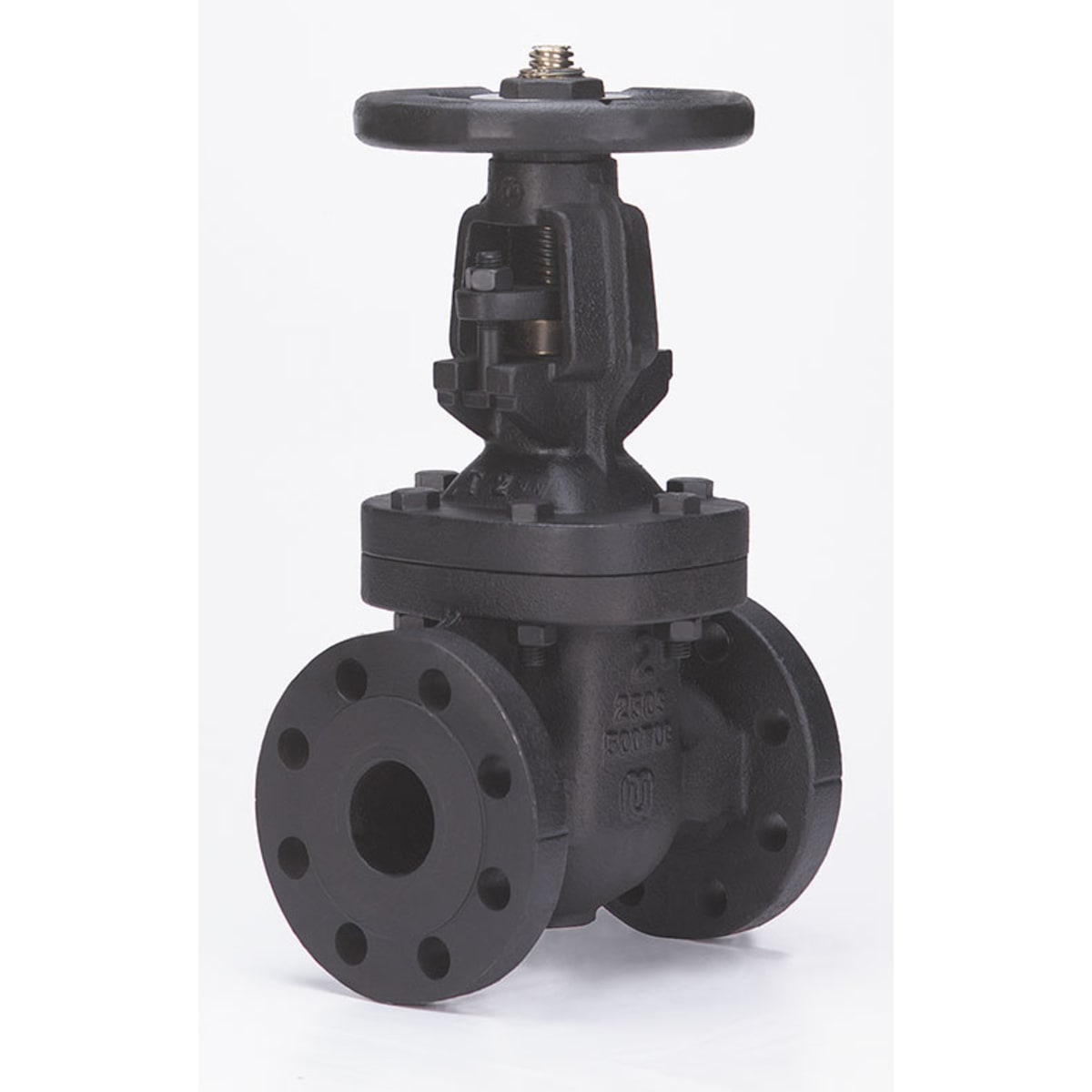

Milwaukee Valve 2894-M-212 F-2894-M Gate Valve, 2-1/2 in Nominal, Flanged End Style, Cast Iron Body

Product Description

The Milwaukee Valve 2894-M-212 is a gate valve designed for fluid control in various applications. This valve features a flanged end style and is made from a durable cast iron body. It has a nominal size of two and a half inches and operates under a maximum pressure of five hundred psi for water, oil, and gas.

• Handwheel actuator for easy operation
• Standard dimensions to fit flanged pipe systems
• Designed for reliable performance with a solid wedge disc

Product Highlights

Crafted for durability and efficiency, the Milwaukee Valve provides a reliable solution for controlling flow in pipelines.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: 2894-M-212

Technical Specifications

• Nominal Size: 2-1/2 in
• Body Material: Cast Iron
• End Style: Flanged
• Actuator Type: Handwheel
• Pressure Rating: 500 psi WOG
• Series: F-2894-M
• Trim Material: Brass
• Inlet to Outlet Length: 9-1/2 in
• Hand Wheel Diameter: 8 in
• Standards/Approvals: ASME B16.1|ASTM A126 Class B Body/Handwheel|ASTM B16 Stem|MSS SP-70
• Top to Inlet Center: 16.88 in
• Softgoods Material: Graphite Packing
