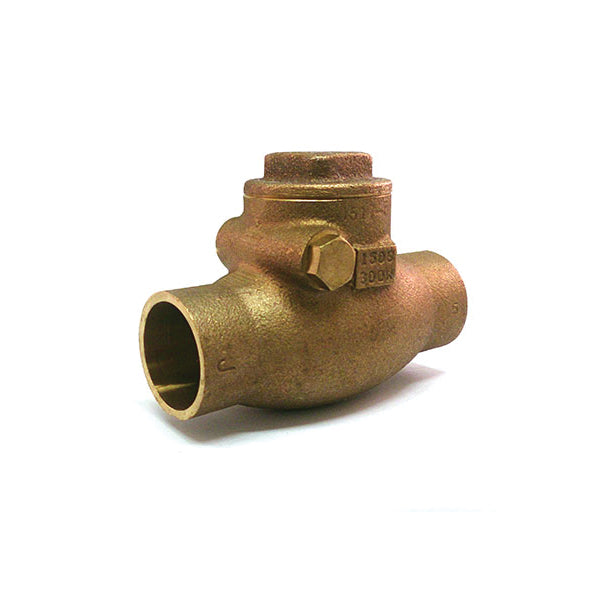

Milwaukee Valve 1510T-34 1510T Horizontal Swing Check Valve 300 lb WOG 3/4 in

Product Description

The Milwaukee Valve 1510T-34 is a horizontal swing check valve designed for reliable operation in various piping systems. This valve features a three-fourth inch nominal size, a solder joint end style, and is rated for three hundred pounds water, oil, and gas. Constructed with a bronze body and PTFE trim, it is suitable for a range of applications.

• Actuated by a lever handle for ease of operation.
• Effective for non-potable applications.
• Built to standards ASTM B62 and MSS SP-80 Type 4.

Product Highlights

This valve is ideal for preventing backflow in systems where liquid or gas flow needs to be controlled effectively. It ensures that the flow direction is maintained while providing reliability in performance.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: 1510T-34

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Bronze
• End Style: Solder Joint
• Nominal Size: 3/4 in
• Inlet to Outlet Length: 3.31 in
• Top to Inlet Center: 1.69 in
• Pressure Class: 300 lb WOG
• Trim Material: PTFE
• Domestic/Import: Domestic
