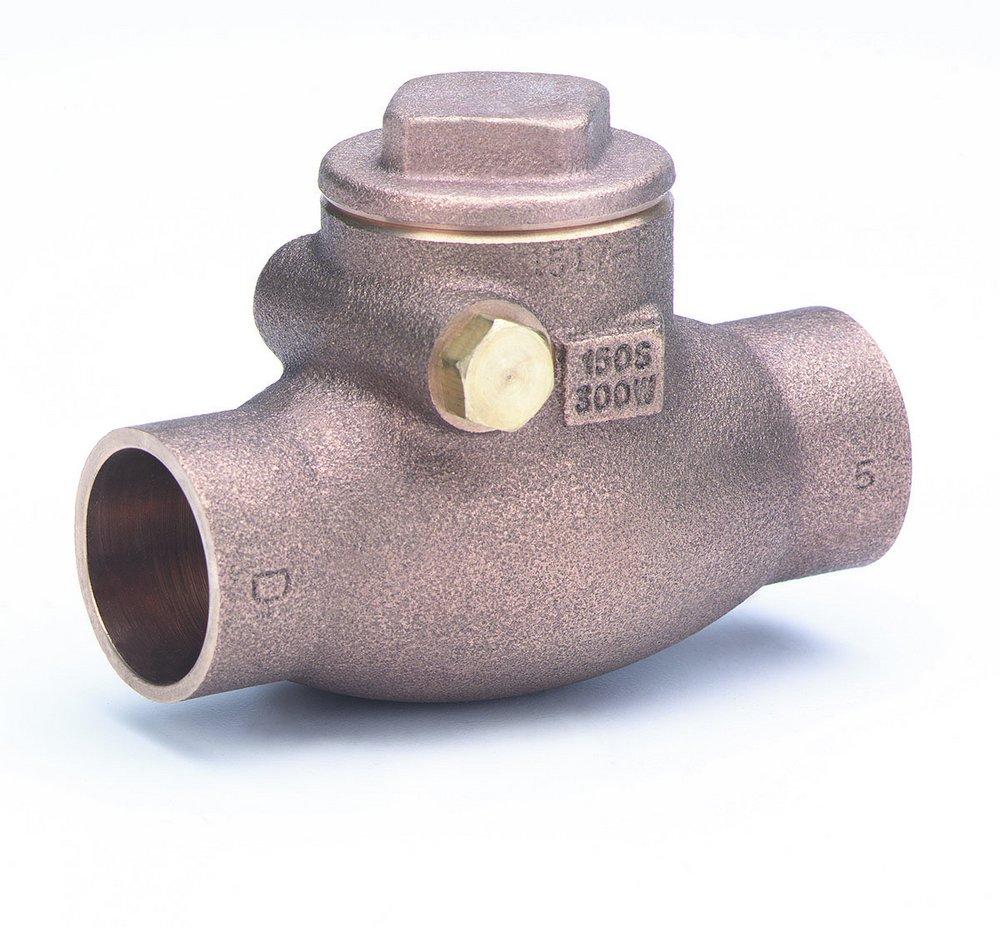

Milwaukee Valve 1509-34 1509 Horizontal Swing Check Valve 3/4 in

Product Description

The Milwaukee Valve 1509-34 is a bronze solder check valve designed for horizontal installation. This valve is rated for 200 WOG and is suitable for various plumbing applications. It features a durable bronze body and a brass trim, ensuring long-lasting performance in demanding conditions.

• Constructed from bronze and brass for strength.
• Automatic temperature and pressure relief.
• Rated for a maximum temperature of 406 degrees Fahrenheit.

Product Highlights

This check valve is perfect for systems requiring reliable backflow prevention without the risk of potable water contamination.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: 1509-34

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Bronze
• Trim Material: Brass
• Nominal Size: 3/4 in
• End Style: Solder Joint
• Inlet to Outlet Length: 3.31 in
• Top to Inlet Center: 1.69 in
• Temperature Rating: 406 degrees Fahrenheit
• Standards/Approvals: ASTM B62 Body, ASTM B16 Disc, MSS SP-80 Type 3
