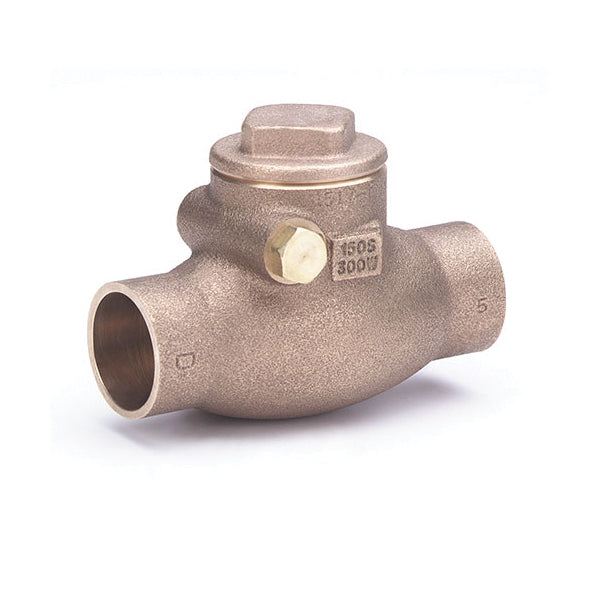

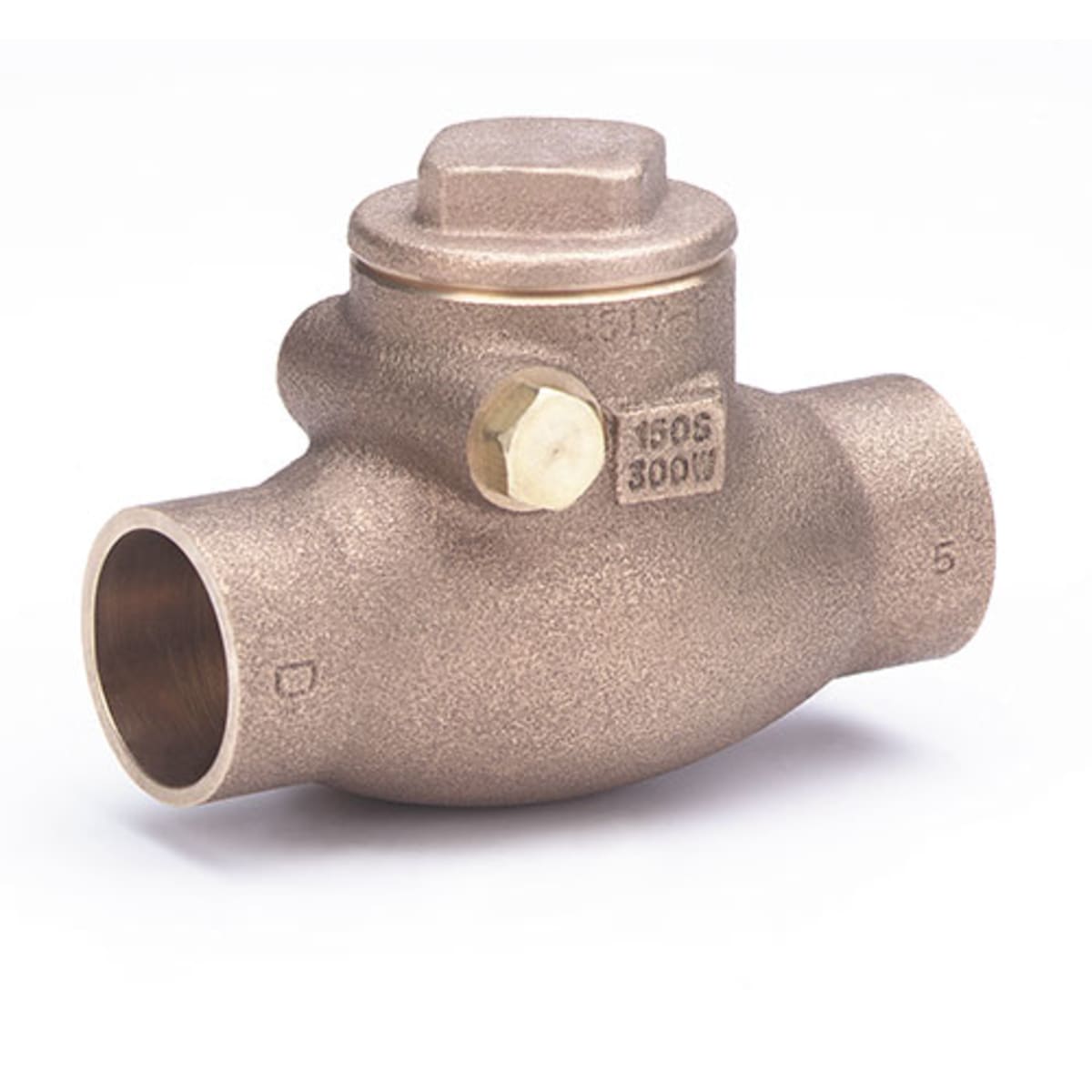

Milwaukee Valve 1509-212 1509 Horizontal Swing Check Valve 200 lb WOG 2-1/2 in

Product Description

The Milwaukee Valve 1509-212 is a horizontal swing check valve designed to handle a nominal size of two and a half inches. It features a solder joint end style and operates at a pressure class of 200 lb WOG. This valve is suitable for non-potable applications and is built with a bronze body and trim for durability.

• Solder joint end style for easy installation
• Lever handle actuator for convenient operation
• Non-potable water compliance

Product Highlights

This swing check valve ensures reliable performance in mechanical systems, allowing for efficient fluid movement while preventing backflow.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: 1509-212

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Bronze
• End Style: Solder Joint
• Inlet to Outlet Length: 7.38 inches
• Nominal Size: 2-1/2 inches
• Pressure Class: 200 lb WOG
• Temperature Rating: 406 degrees F
• Top to Inlet Center: 3.63 inches
