Milwaukee Valve 148-212 Gate Valve, 2-1/2 in Nominal, FNPT End Style, 125 lb, Bronze Body, Handwheel Actuator

Product Description

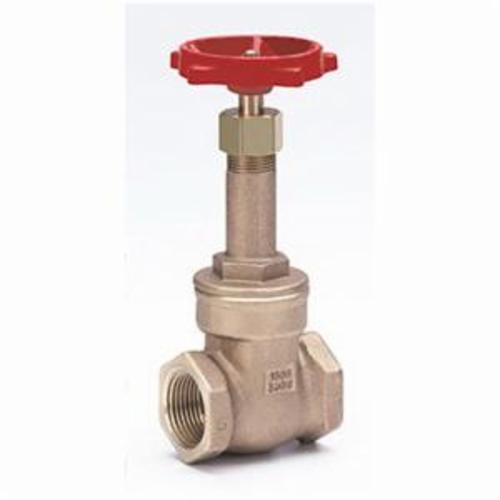

The Milwaukee Valve 148-212 is a gate valve designed for durable performance. This valve features a two and a half inch nominal size with female National Pipe Thread (FNPT) ends. It operates under a pressure class of 125 lb and is rated for a maximum pressure of two hundred pounds per square inch (WOG). The bronze body construction ensures reliability in various applications.

• Designed for non-potable water applications
• Includes a handwheel actuator for easy manipulation
• Solid wedge disc design for reliable sealing

Product Highlights

This valve is suitable for a variety of plumbing systems where reliable shutoff is needed. The handwheel allows for easy operation and is made from malleable iron for strength.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: 148-212

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• End Style: FNPT
• Nominal Size: 2-1/2 in
• Pressure Rating: 200 psi WOG
• Temperature Rating: 406 deg F
• Inlet to Outlet Length: 4.19 in
• Top to Inlet Center: 14.31 in
