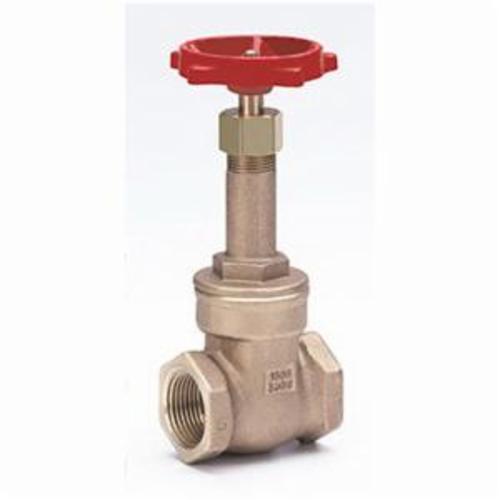

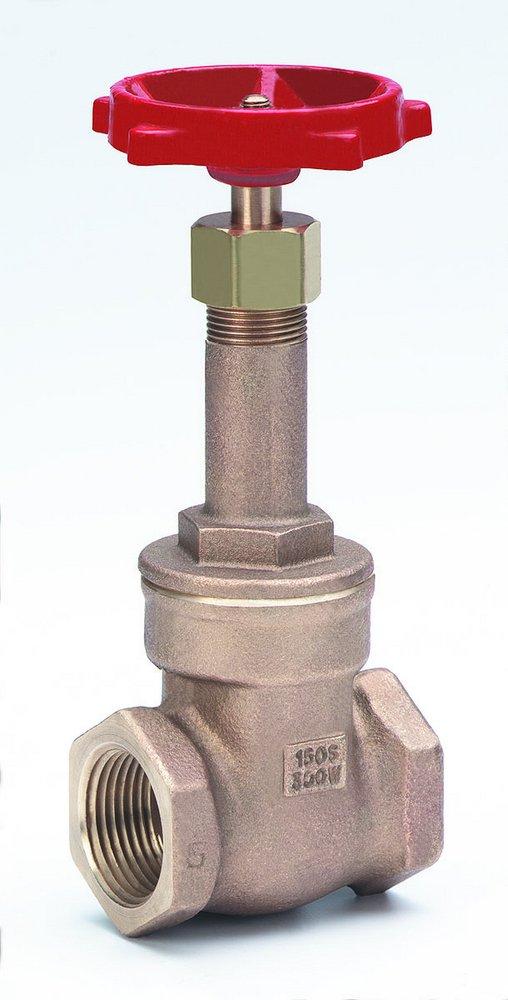

Milwaukee Valve 148-114 1-1/4 in. Bronze Threaded Gate Valve

Product Description

The Milwaukee Valve 148-114 is a one and one-quarter inch bronze threaded gate valve. This valve is designed for general service in various plumbing and HVAC applications. It features a rising stem type, which allows for easy operation and maintenance.

• Pressure rating of two hundred psi WOG
• Threaded end connections for easy installation
• Not intended for use in potable water applications

Product Highlights

The valve is suitable for a range of applications in residential and commercial systems.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: 148-114

Technical Specifications

• Nominal Size: 1-1/4 in
• Body Material: Bronze
• Pressure Rating: 200 psi WOG
• End Style: FNPT
• Actuator Type: Handwheel
• Inlet to Outlet Length: 2.78 in
• Temperature Rating: 406 deg F
• Top to Inlet Center: 8.78 in
• Hand Wheel Diameter: 3.13 in
• Standards/Approvals: ASTM B62 Body/Stem|MSS SP-80 | PROP65: Cancer and Reproductive Harm
