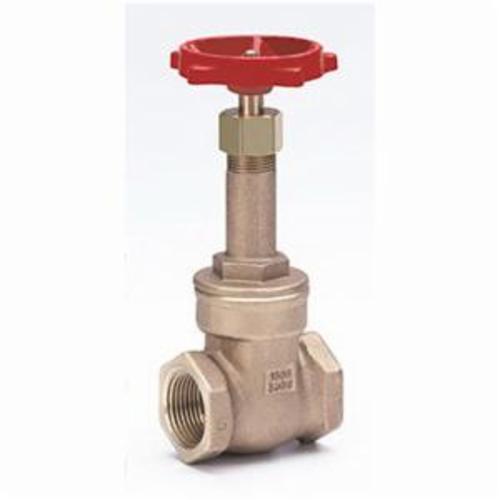

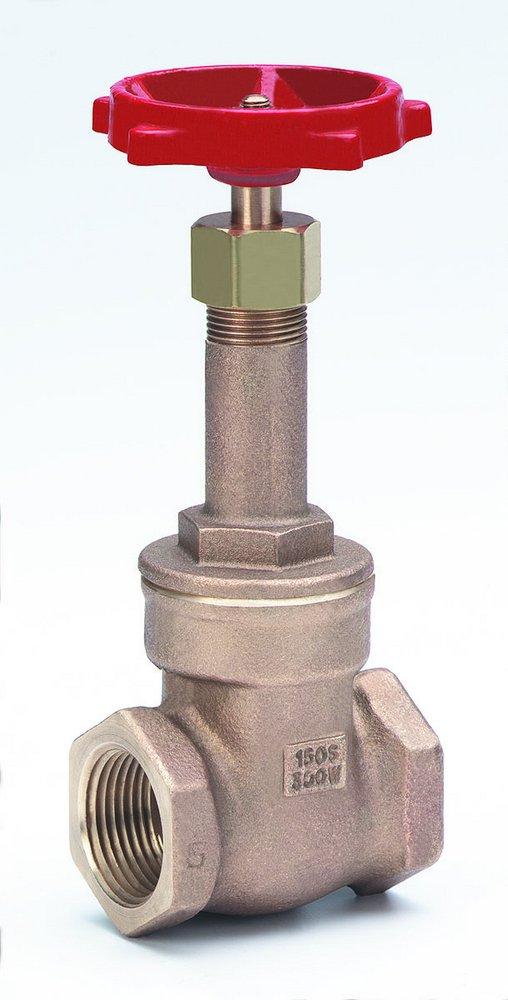

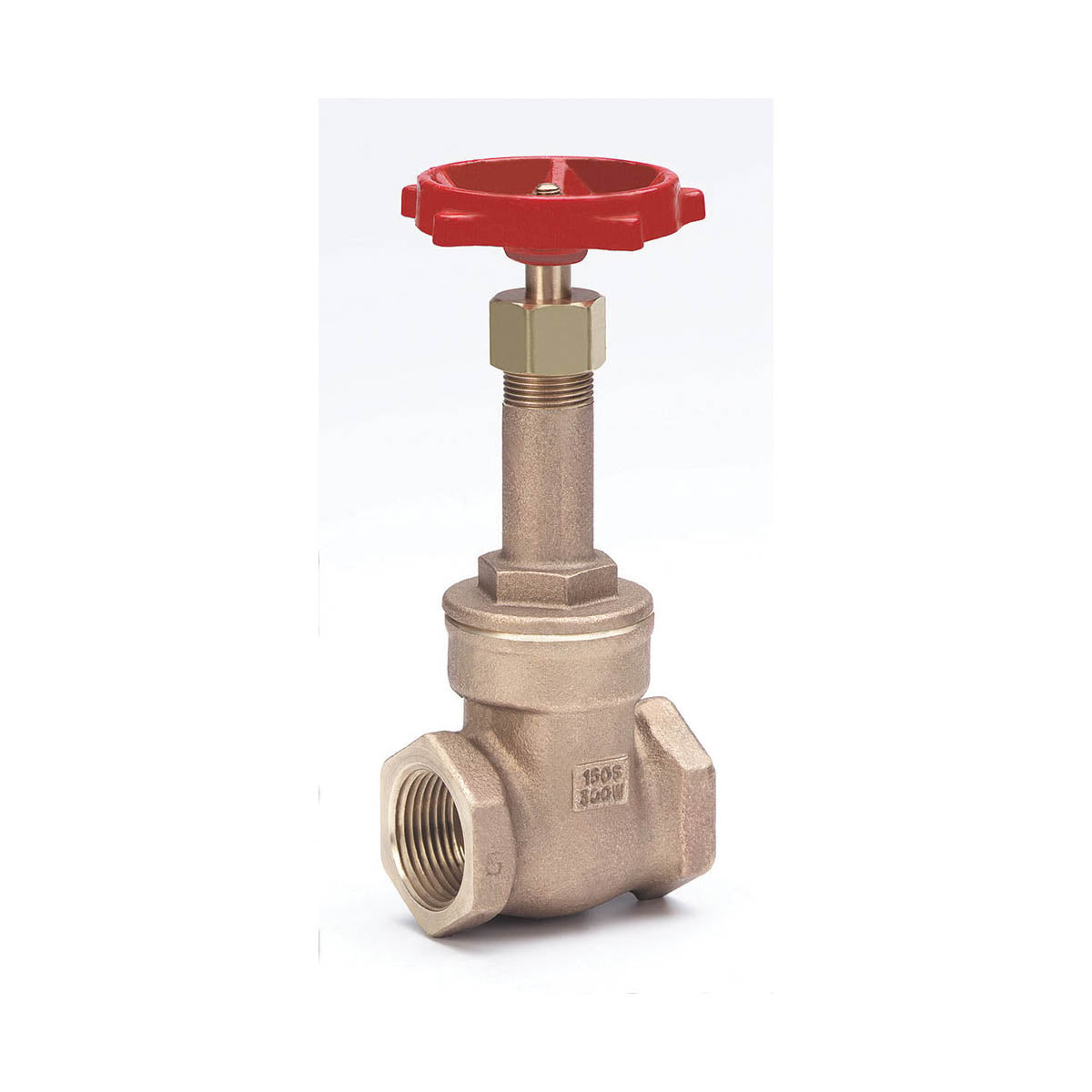

Milwaukee Valve 148-100 1 in Bronze Threaded Gate Valve

Product Description

The Milwaukee Valve 148-100 is a one inch bronze threaded gate valve. It features a rising stem design and is built for general service applications. This valve is commonly used in water and heating systems where reliable flow control is necessary.

• Threaded bonnet for easy installation
• Solid wedge disc for optimal sealing
• Not intended for potable water use

Product Highlights

This gate valve operates within a pressure range of up to 200 psi WOG and is designed for temperatures reaching 406 degrees Fahrenheit. It is suitable for various industrial applications, providing effective flow control and reliability.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: 148-100

Technical Specifications

• Nominal Size: 1 in
• Body Material: Bronze
• Pressure Rating: 200 psi WOG
• Actuator Type: Handwheel
• End Style: FNPT
• Inlet to Outlet Length: 2.56 in
• Top to Inlet Center Height: 7.06 in
• Hand Wheel Diameter: 2-3/4 in
• Standards/Approvals: ASTM B62 Body/Stem, MSS SP-80
• Softgoods Material: Graphite Packing
