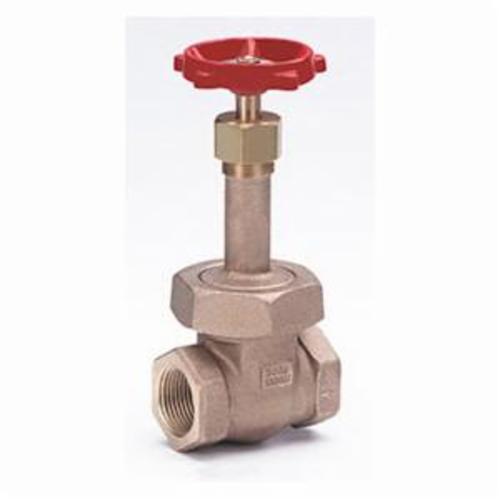

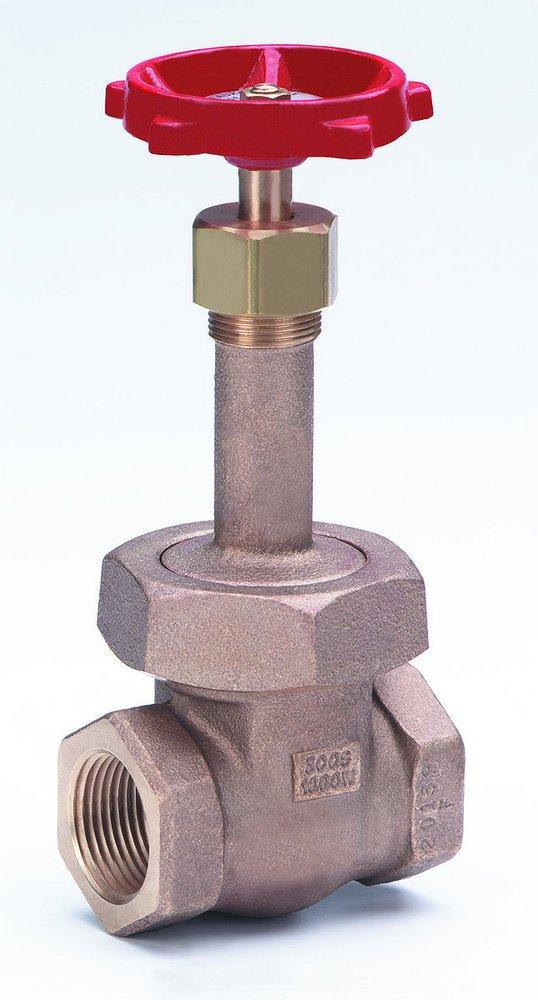

Milwaukee Valve 1184-34 3/4 in Bronze Threaded Gate Valve

Product Description

Milwaukee Valve offers the 1184-34, a three-fourth inch bronze threaded gate valve designed for durability and performance. This valve is suitable for various applications. It features a solid wedge disc for reliable sealing and is not intended for use with potable water.

• Pressure rating of 1000 psi WOG
• Constructed with a sturdy bronze body
• Handwheel actuator for ease of operation

Product Highlights

The Milwaukee Valve 1184-34 is efficient for use in plumbing and HVAC systems, providing a long service life with minimal maintenance.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: 1184-34

Technical Specifications

• Nominal Size: 3/4 in
• Body Material: Bronze
• Actuator Type: Handwheel
• Pressure Rating: 1000 psi WOG
• End Style: FNPT
• Inlet to Outlet Length: 2-1/2 in
• Top to Inlet Center: 6-1/4 in
• Hand Wheel Diameter: 2-3/4 in
• Softgoods Material: Graphite Packing
• Standards/Approvals: ASTM B61 Body/Stem, MSS SP-80
