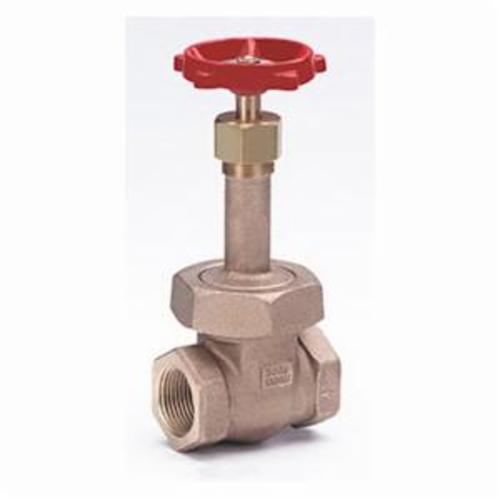

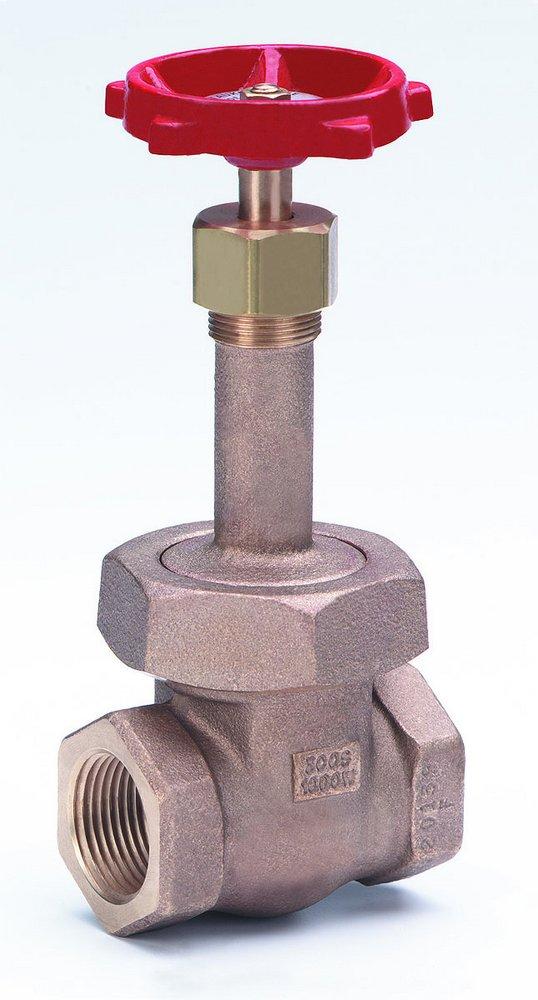

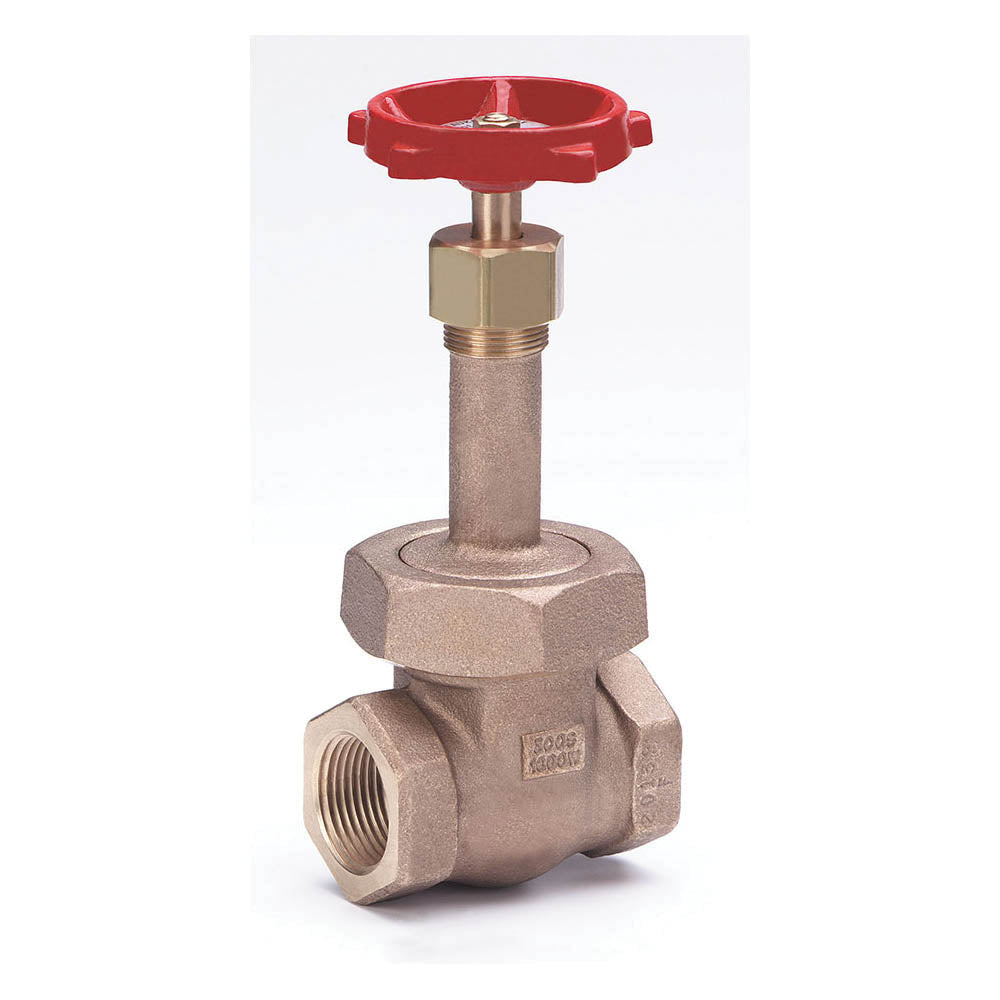

Milwaukee Valve 1184-14 Gate Valve, 1/4 in Nominal, FNPT, Bronze Body

Product Description

The Milwaukee Valve 1184-14 is a 1/4 inch bronze threaded gate valve. This valve is designed for reliable service in various applications. With a pressure rating of one thousand pounds (1,000) water column, it effectively manages the flow of fluids in piping systems.

• Bronze body with FNPT end style for durability
• Handwheel actuator for easy operation
• Solid wedge disc ensures tight shut-off

Product Highlights

This gate valve features a solid wedge disc and is fitted with a malleable iron handwheel for ease of use. Suitable for non-potable water applications, it provides a robust solution for many industrial settings.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: 1184-14

Technical Specifications

• Nominal Size: 1/4 in
• End Style: FNPT
• Body Material: Bronze
• Pressure Rating: 1000 psi WOG
• Actuator Type: Handwheel
• Inlet to Outlet Length: 1.81 in
• Top to Inlet Center: 5.13 in
• Softgoods Material: Graphite Packing
• Hand Wheel Diameter: 2-1/4 in
