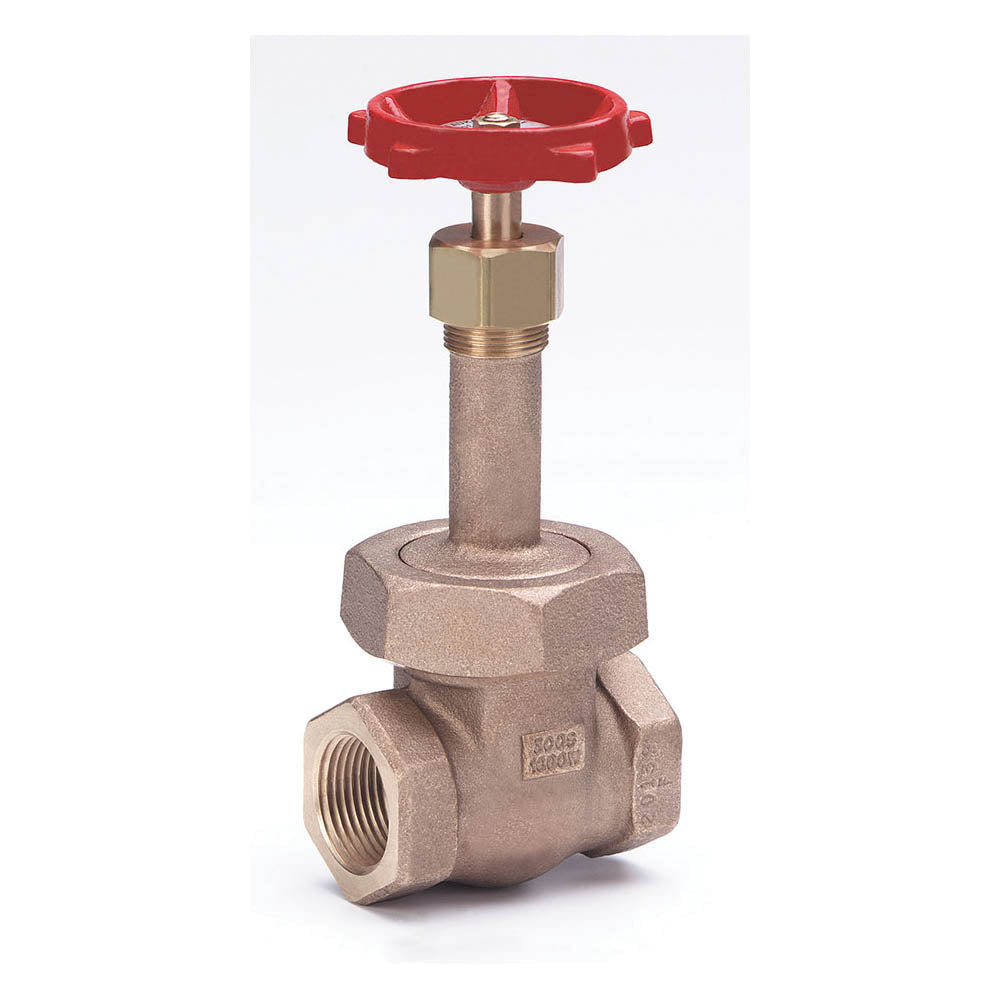

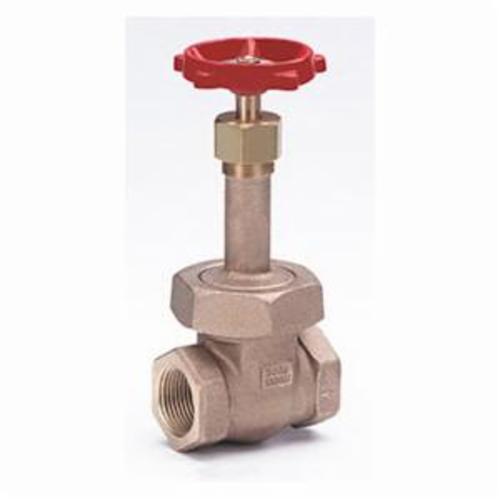

Milwaukee Valve 1184-114 Gate Valve, 1-1/4 in Nominal, FNPT End Style, 1184-114

Product Description

The Milwaukee Valve 1184-114 is a reliable gate valve designed for HVAC, plumbing, and industrial applications. This valve features a nominal size of one and one-fourth inches and a FNPT end style for easy installation.

• Constructed with a bronze body and trim for durability.
• Handwheel actuator allows for easy control.
• Pressure rated at one thousand psi WOG.

Product Highlights

This gate valve is ideal for regulating flow in various systems, ensuring a leak-free operation with its gland-packed design.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: 1184-114

Technical Specifications

• Nominal Size: 1-1/4 in
• End Style: FNPT
• Pressure Rating: 1000 psi WOG
• Actuator Type: Handwheel
• Body Material: Bronze
• Trim Material: Bronze
• Inlet to Outlet Length: 3.38 in
• Top to Inlet Center: 8.56 in
• Hand Wheel Diameter: 3-1/4 in
• Standards/Approvals: ASTM B61 Body/Stem, MSS SP-80
• Softgoods Material: Graphite Packing
