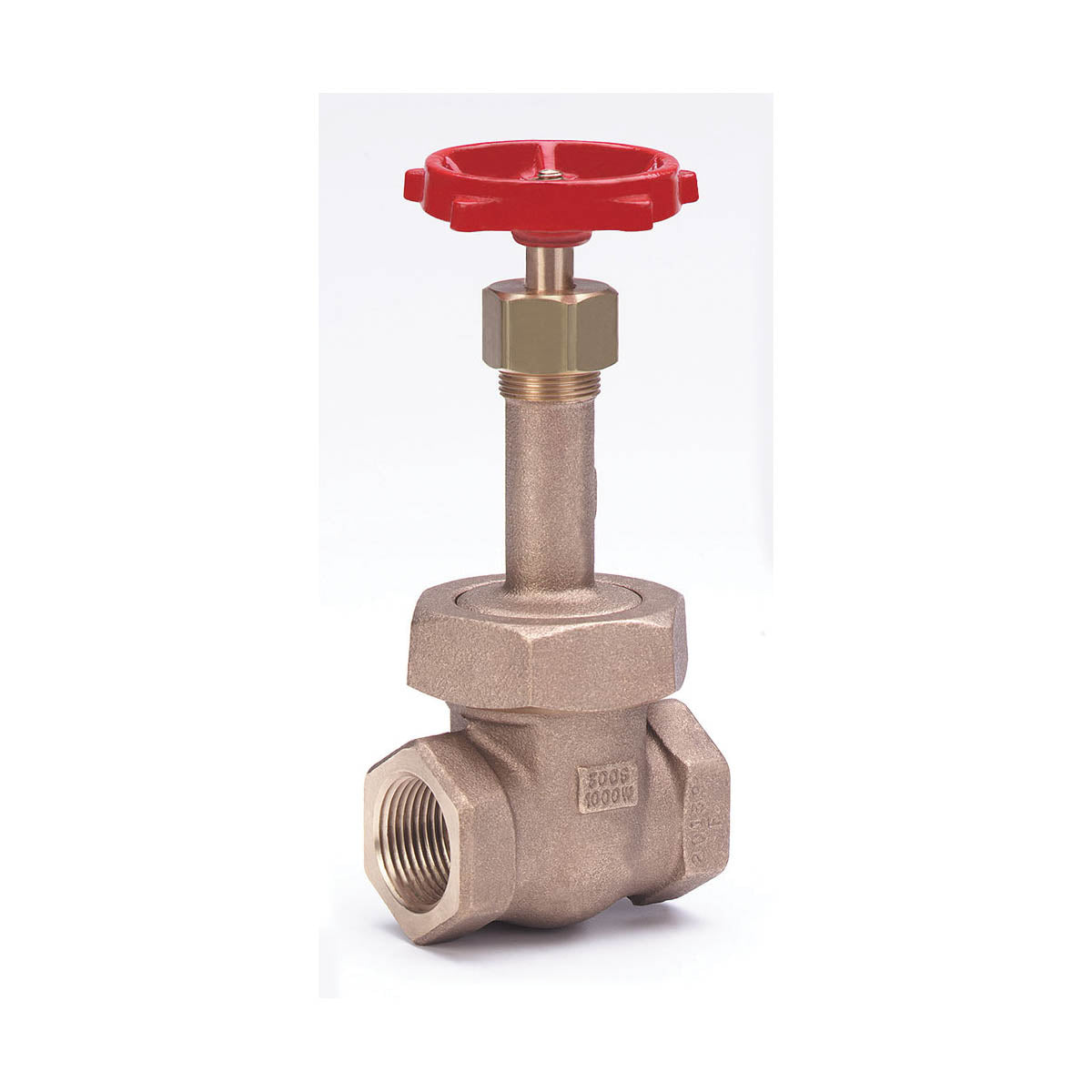

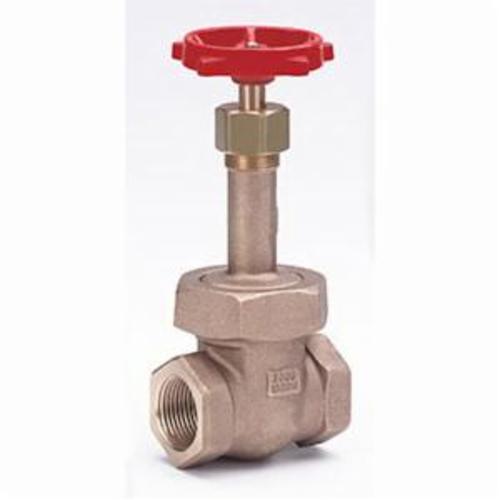

Milwaukee Valve 1182-38 Gate Valve, 3/8 in Nominal, FNPT End Style, 300 lb, Bronze Body, Handwheel Actuator

Product Description

The Milwaukee Valve 1182-38 is a gate valve designed for various applications. This valve features a nominal size of three eighths of an inch and a female National Pipe Taper (FNPT) end style. It is built to handle pressures of up to one thousand pounds of water gauge (WOG). The robust bronze body provides durability and longevity.

• Solid wedge disc design for reliable sealing
• Handwheel actuator for simple operation
• Non-rising stem reduces height requirements

Product Highlights

This gate valve is ideal for controlling flow in plumbing systems and industrial settings. Its construction allows for effective performance under demanding conditions.

Product Information

Standard Information

• MPN: 1182-38
• Manufacturer: Milwaukee Valve

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Pressure Rating: 1000 psi WOG
• Temperature Rating: 550 deg F
• Inlet to Outlet Length: 1.88 in
• Top to Inlet Center: 5.13 in
• Trim Material: Bronze
• End Style: FNPT
• Nominal Size: 3/8 in
• Softgoods Material: Graphite Packing
• Standards/Approvals: ASTM B61 Body/Stem, MSS SP-80
