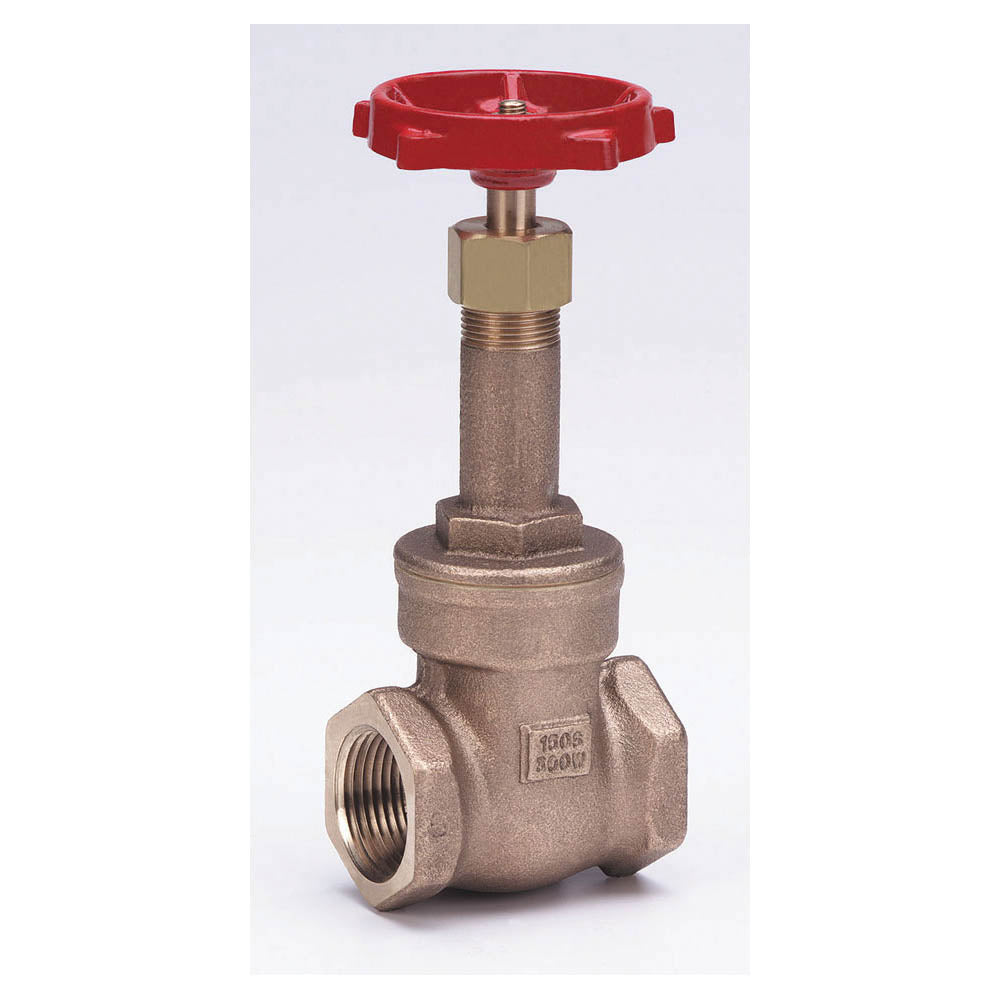

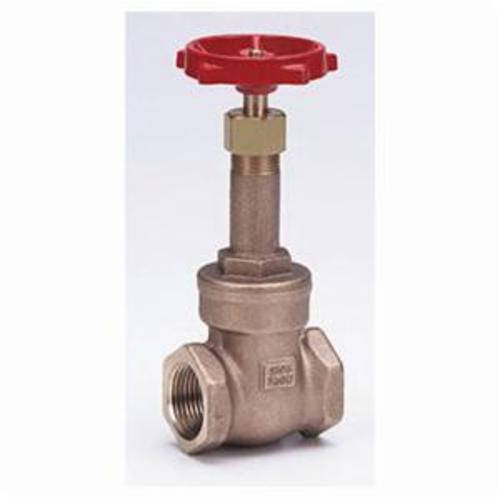

Milwaukee Valve 1150-14 Gate Valve, 1/4 in Nominal, FNPT End Style, 150 lb, Bronze Body

Product Description

The Milwaukee Valve 1150-14 Gate Valve is designed for various plumbing needs. It has a nominal size of one quarter inch and features a FNPT end style for easy connection. This valve is made of bronze, providing durability and corrosion resistance. It operates with a handwheel actuator, providing manual control over fluid flow.

• 150 lb pressure class with a maximum working pressure of 300 psi WOG
• Temperature rating of four hundred six degrees Fahrenheit
• Solid wedge disc design for reliable sealing

Product Highlights

This valve is suitable for non-potable water applications and can be used in various industrial settings. Its compact size makes it ideal for tight spaces.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Part Number: 1150-14

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Trim Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Hand Wheel Diameter: 2 in
• Inlet to Outlet Length: 1-3/4 in
• Nominal Size: 1/4 in
• Pressure Rating: 300 psi WOG
• Series: 1150
• Softgoods Material: Graphite Packing
• Temperature Rating: 406 deg F
• Top to Inlet Center: 4.38 in
