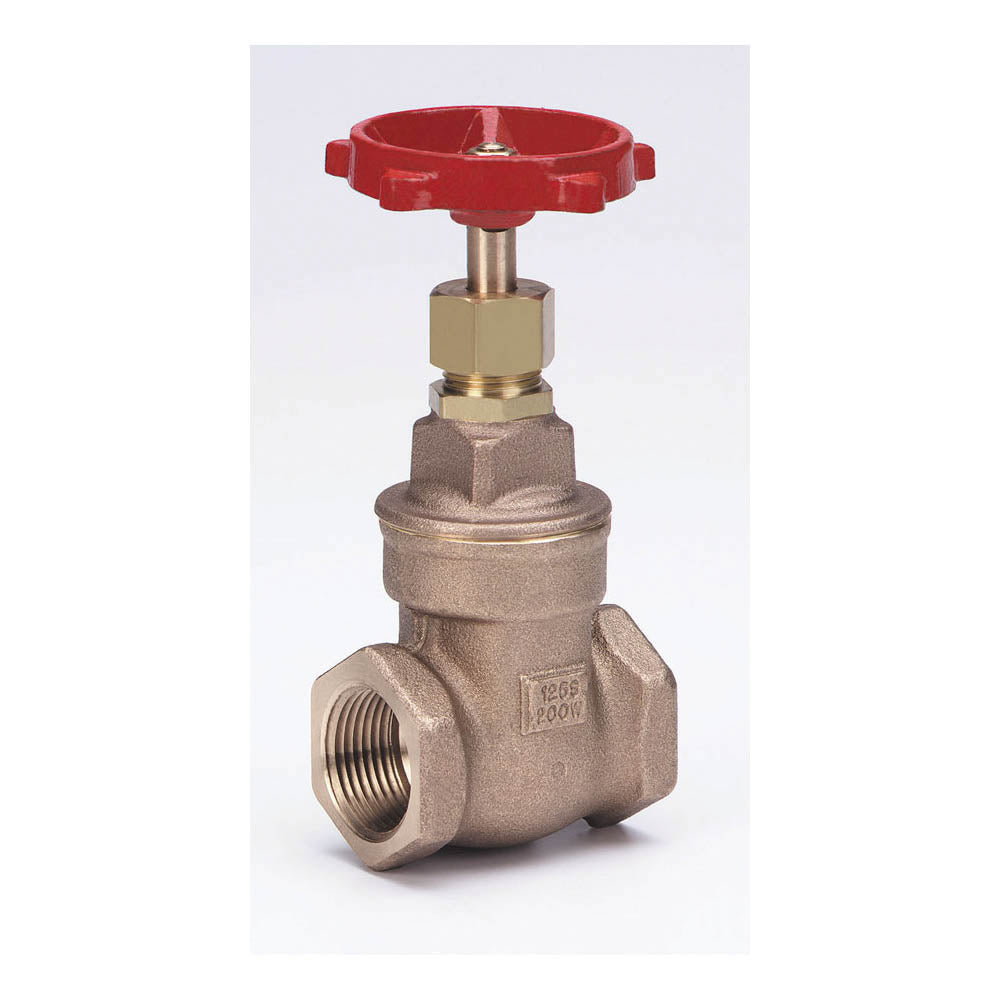

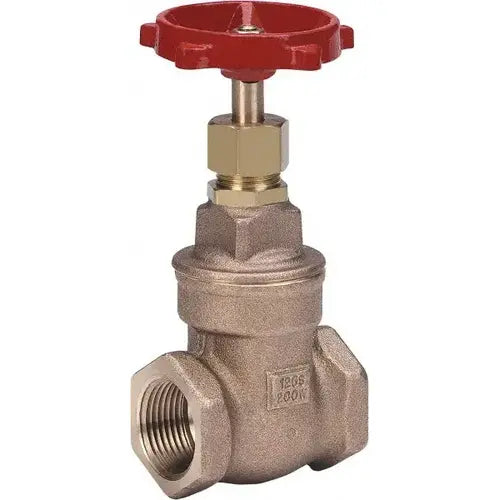

Milwaukee Valve 105 - 112 Gate Valve 1-1/2 inches NPT Female

Product Description

The Milwaukee Valve 105 - 112 is a bronze gate valve from the 105 series, designed for general service. This class 125 valve features a non-rising stem and a 1-1/2" NPT female connection. It is constructed with a bronze body and trim, and includes graphite packing. Not intended for use in potable water.

• Features a bronze solid wedge disc
• Includes a bronze threaded bonnet
• Has a malleable iron handwheel

Product Highlights

This gate valve is suitable for use with water, oil, and gas, and is MSS SP-80, type 1 certified.

Product Information

Standard Information

• Brand: MILWAUKEE VALVE
• Manufacturer Part Number: 105 - 112

Technical Specifications

• Brand: Milwaukee
• Manufacturer: Milwaukee Valve
• Model / MPN: 105 - 112
• Part ID / MPN: 105 - 112
• Size: 1.5 Inch
• Product Type: VALVE
• Standards/Certifications: MSS SP-80, type 1 certified
• ConnectionSize: 1-1/2 in
• Actuator Type: Handwheel
• Body Material: Bronze
• End Style: FNPT
• Nominal Size: 1-1/2 in
• Hand Wheel Diameter: 3-1/2 in
• Inlet to Outlet Length: 2.81 in
• Series: 105
• Softgoods Material: Graphite Packing
• Temperature Rating: 406 deg F
• Top to Inlet Center: 6.34 in
• Trim Material: Bronze
• Pressure Class: 125 lb
• Pressure Rating: 200 psi WOG
• Domestic/Import: Domestic
• Valve Type: Non-Rising Stem
• Pipe Size (Inch): 1-1/2
• End Connection: Threaded (NPT)
• Disc Style: Solid Wedge
• Bonnet Style: Threaded
• Handle Type: Wheel
• Lead Free: No
• For Use With: Water, Oil, Gas
