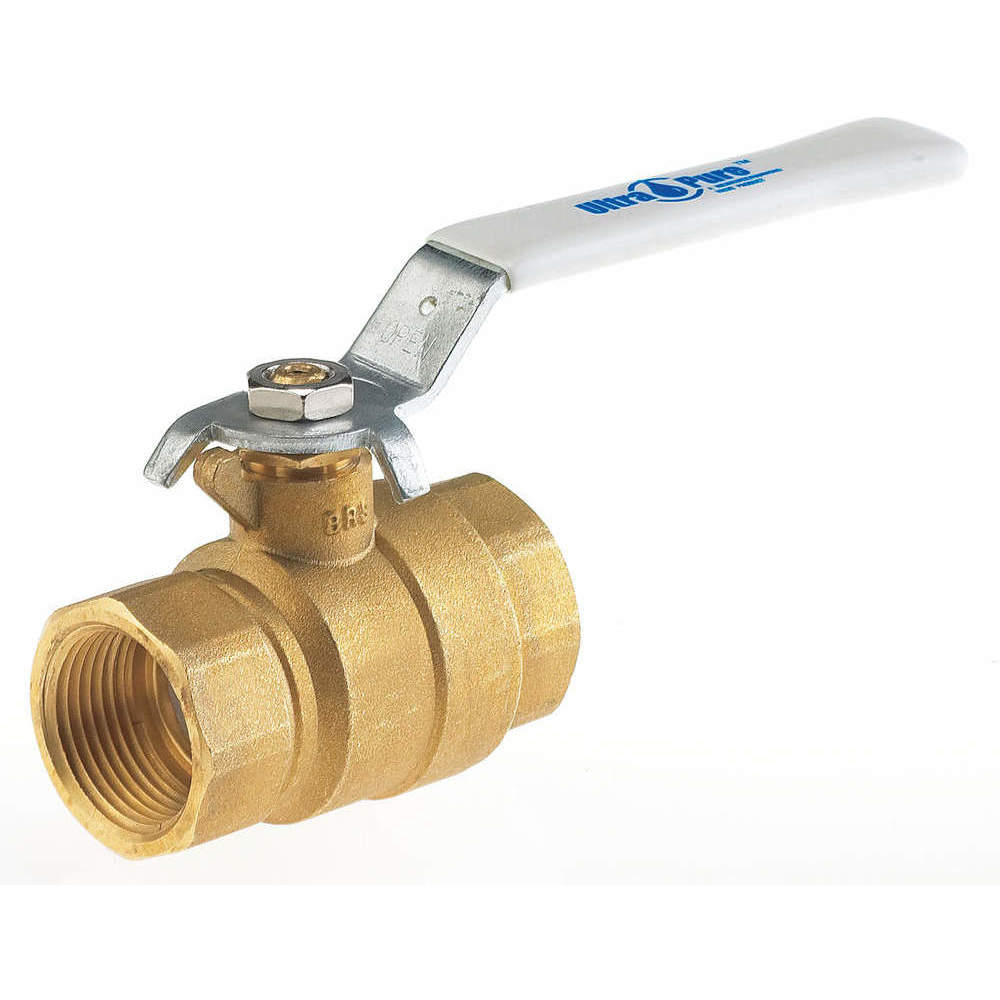

Milwaukee UPBA475B-2 Brass Ball Valve - 2 in. FNPT Full Port

Product Description

The Milwaukee UPBA475B-2 is a brass ball valve with a two-inch nominal size and full port design. This valve is built for durability and is suitable for water media applications. It features female NPT connections on both ends, designed for easy installation. The valve has a forged brass body and a chrome-plated brass ball, ensuring optimal performance under pressure.

• Constructed with a locking steel lever handle for secure operation.
• Includes a blowout-proof brass stem to enhance safety.
• Compatible with water and rated for maximum pressure up to 600 psi.

Product Highlights

This valve is designed for reliable use in plumbing systems. The full port allows for maximum flow capacity, making it an effective choice for various applications.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Domestic/Import: Import

Technical Specifications

• Item: Ball Valve
• Connection Type: FNPT x FNPT
• Max. Pressure: 600 psi WOG
• Materials: Brass body, chrome-plated brass ball
• Valve Size: 2 inches
• Handle Type: Locking lever
• Temp. Range: Up to 180°F
• Standards Compliance: CSA, FM LISTED, IAPMO, NSF/ANSI 372
