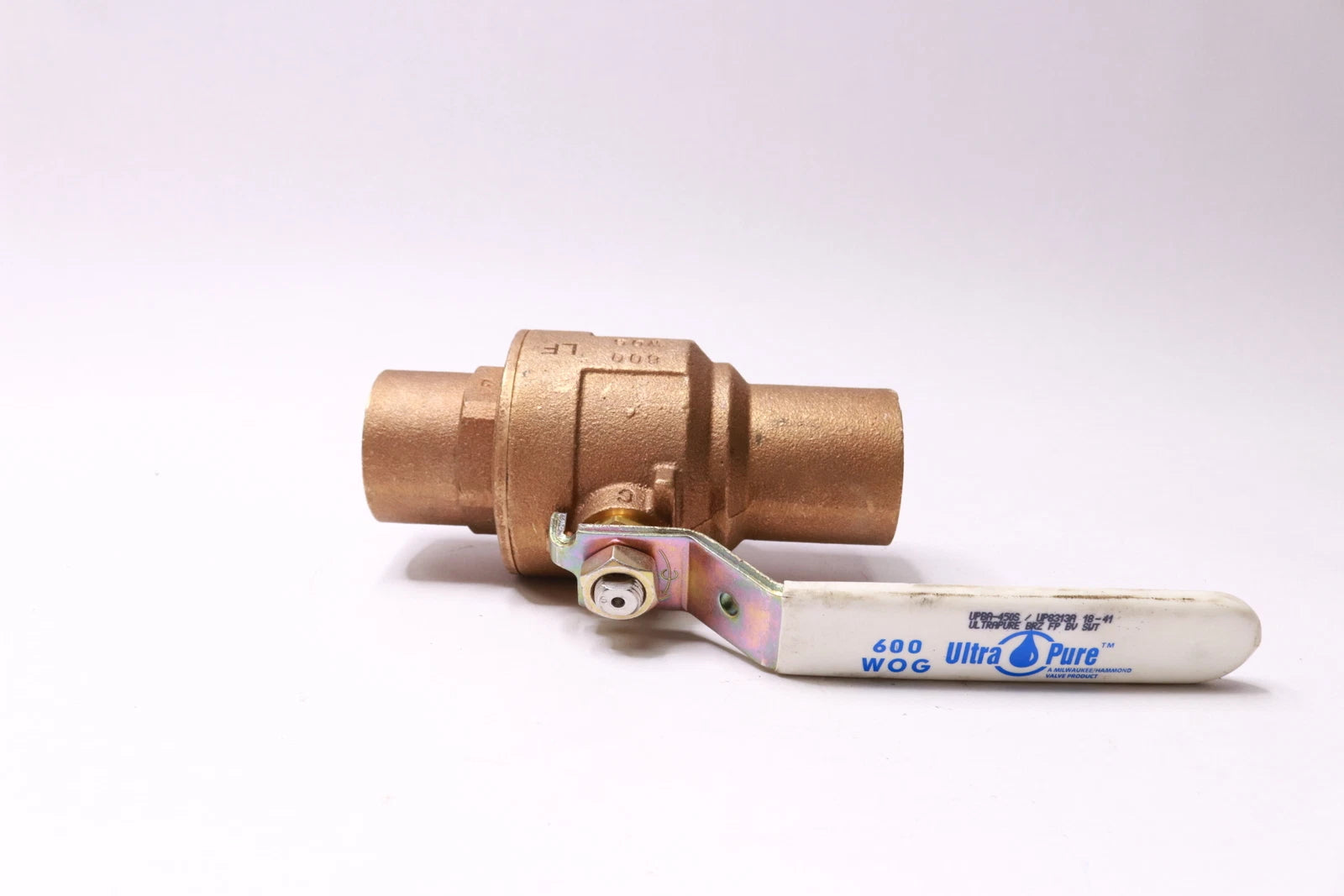

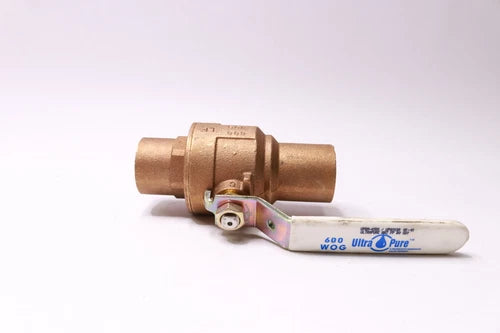

Milwaukee UPBA450S-112 Ultra Pure Ball Valve - 1-1/2 in. Solder, Full Port, Bronze Body

Product Description

The Milwaukee Ultra Pure Ball Valve, MPN UPBA450S-112, features a two-piece valve design ideal for plumbing applications. This valve has a nominal size of one and a half inches and a solder end style. The full port design enables maximum flow efficiency. The body is made from durable cast bronze, with a ball crafted from 316 stainless steel for reliable performance. The valve incorporates a pressure rating of six hundred psig and a WOG rating of six hundred psi, ensuring suitability for various systems.

• Constructed with non-shock design.
• Blow-out proof stem enhances safety.
• Zinc plated steel handle for easier operation.

Product Highlights

This ball valve is designed for fluid control in plumbing systems. Its robust materials deliver longevity and performance under pressure.

Product Information

Standard Information

• Brand: Milwaukee
• Manufacturer Part Number: UPBA-450S A 112

Technical Specifications

• Body Material: Cast Bronze
• End Style: Solder
• Nominal Size: 1-1/2 in
• Port Type: Full
• Softgoods Material: RPTFE
• Ball Material: 316 Stainless Steel
• Inlet to Outlet Length: 6 in
• Orifice Size: 1.56 in
• Pressure Rating: 600 psig
• Top to Inlet Center: 2.99 in
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Type: 2-Piece
• Housing Material: Bronze
• WOG Rating: 600 psi
• Height: 2.9 in
• Length: 3.95 in
• Width: 9.85 in
• Diameter: 1 1/2 in
