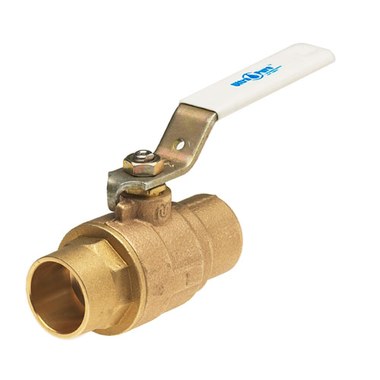

Milwaukee UPBA450-2 Ball Valve

Product Description

The Milwaukee UPBA450-2 is a reliable two-piece ball valve designed for effective shut-off and flow control in plumbing systems. This valve features a robust cast bronze body and allows minimal flow restriction with its full port design. The chrome-plated brass ball provides durability and corrosion resistance, while the reinforced RPTFE softgoods enhance its performance.

• Features a blow-out proof stem for added reliability
• Incorporates 15% glass filled RPTFE seat for effective sealing
• Equipped with a hard chrome plated brass ball for durability

Product Highlights

This valve suits various plumbing applications and is built for a pressure rating of six hundred psig. Its sweat x sweat end style and nominal size of two inches ensure compatibility with standard plumbing setups.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Domestic/Import: Domestic

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Cast Bronze
• End Style: Sweat x Sweat
• Inlet to Outlet Length: 6-3/4 inches
• Nominal Size: 2 inches
• Orifice Size: 2 inches
• Port Type: Full
• Pressure Rating: 600 psig
• Series: UPBA450
• Softgoods Material: RPTFE
• Top to Inlet Center: 3.51 inches
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
