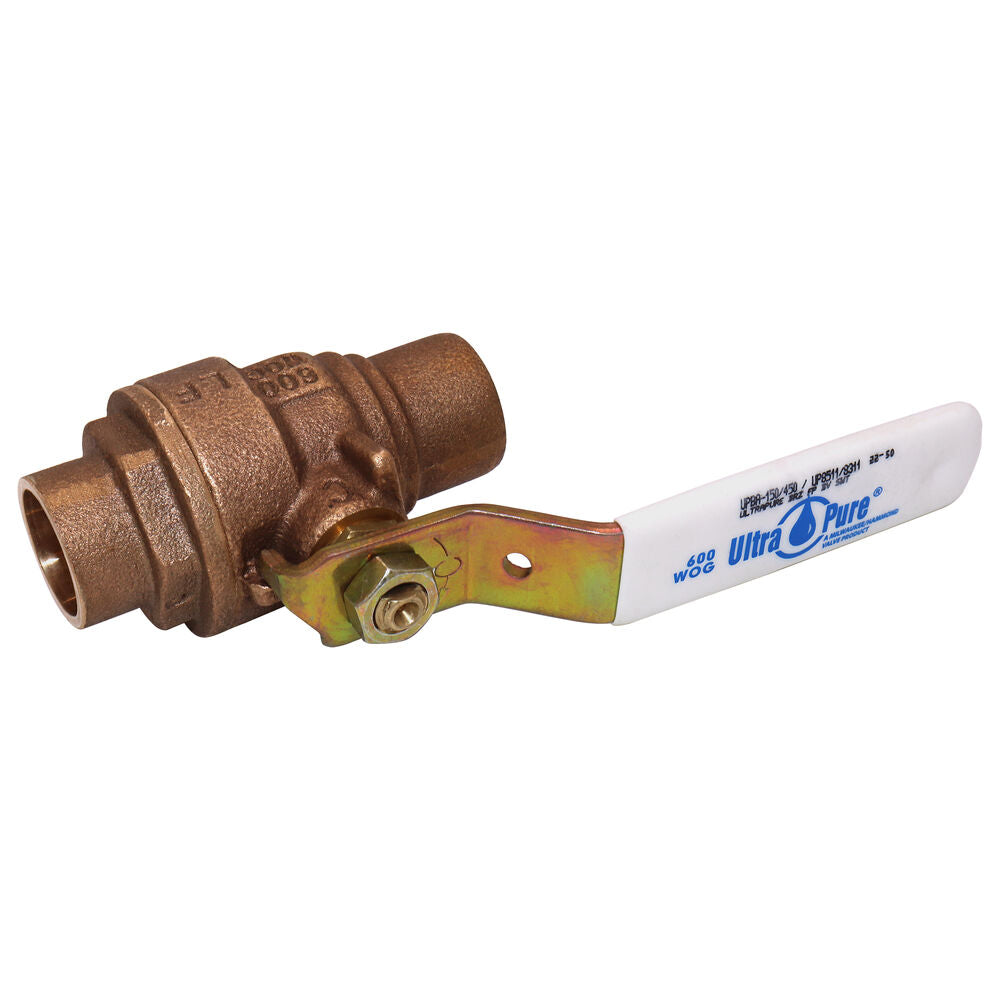

MILWAUKEE UPBA150S-114 Ball Valve

Product Description

The MILWAUKEE UPBA150S-114 is a two-piece ball valve designed for potable water systems. This valve has a solder end style of one and one-quarter inches and a standard port with an orifice size of one point zero six inches. Constructed from ASTM B584-C89833 cast bronze, the ball is made of chrome plated brass, ensuring durability and reliability.

• Blow-out proof stem for added safety
• Compliant with WQA NSF/ANSI 372 for lead-free use
• Zinc plated steel handle for manual operation

Product Highlights

The valve features a pressure rating of six hundred pounds per square inch gauge and utilizes a fifteen percent glass filled RPTFE seat along with a twenty-five percent glass filled RPTFE thrust washer. Its length measures three and one-half inches from inlet to outlet and two point six six inches from top to inlet center. It adheres to MSS SP-110 standards and complies with the California Transparency in Supply Chains Act of 2010.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Domestic/Import: Domestic

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Cast Bronze
• End Style: Solder
• Inlet to Outlet Length: 3.5 inches
• Nominal Size: 1.25 inches
• Orifice Size: 1.06 inches
• Port Type: Standard
• Pressure Rating: 600 psig
• Series: UPBA150
• Softgoods Material: RPTFE
• Top to Inlet Center: 2.66 inches
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
• Construction: 2-Piece
• Material: Bronze
• Package Dimensions: Width 6.75 inches, Height 3.88 inches, Length 9.25 inches
• UNSPSC: 40141607
