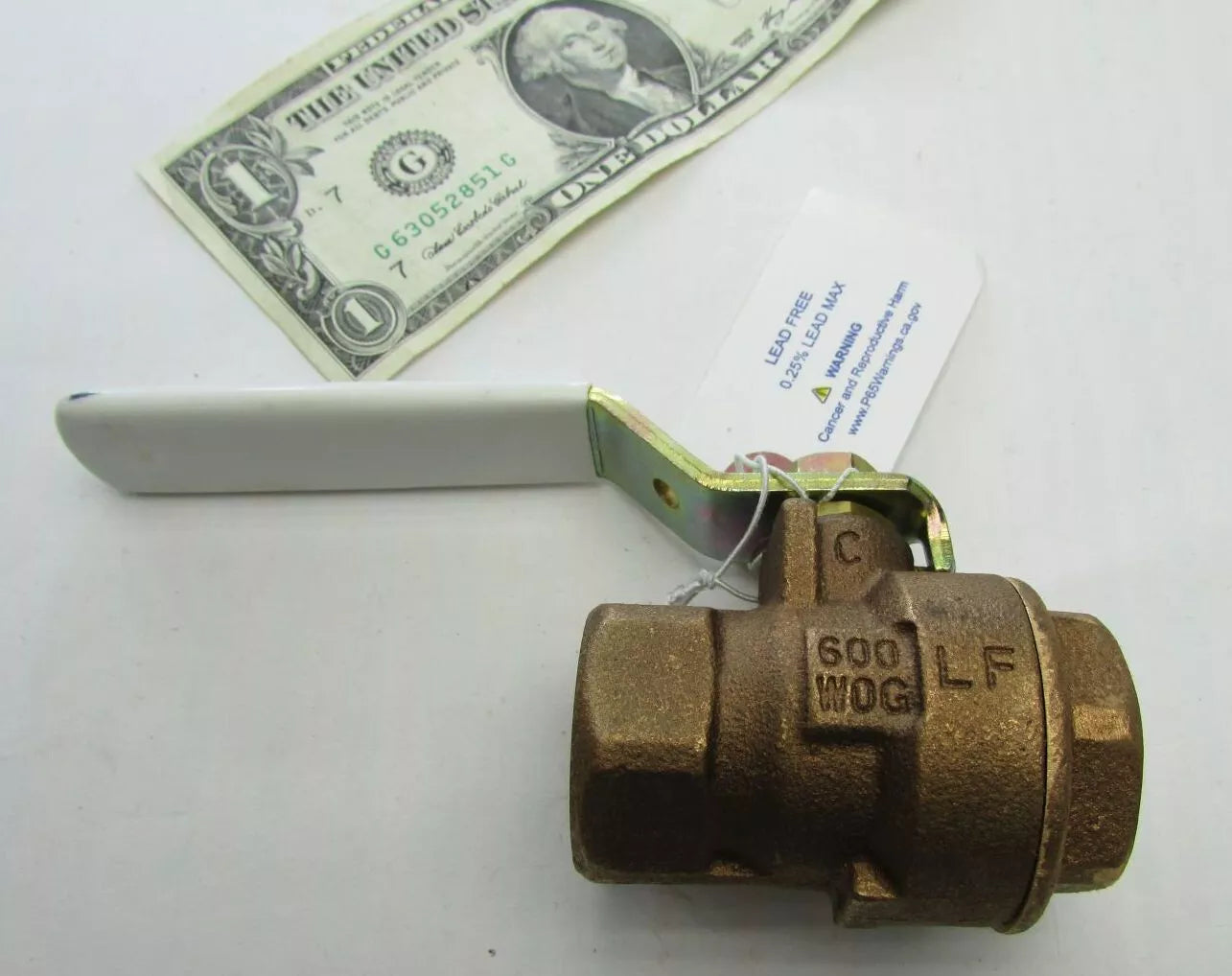

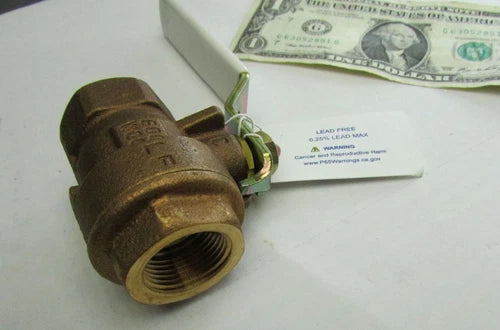

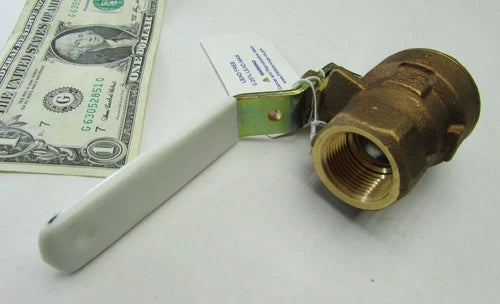

Milwaukee UPBA100S-34 3/4 NPT Ball Valve

Product Description

The Milwaukee UPBA100S-34 is a 3/4-inch NPT ball valve designed for reliable manual operation. This two-piece valve features a durable cast bronze body, ensuring longevity in various applications. The 316 stainless steel ball provides strength against corrosion, making it suitable for use with oil, water, and gas.

• Offers a blow-out proof stem for safety during operation.
• Includes a 15% glass filled RPTFE seat for enhanced durability.
• Zinc plated steel handle allows for easy manual control.

Product Highlights

This valve is built to handle high pressures, featuring a WOG rating of 600 psi and a pressure rating of 600 psig. The inlet to outlet length measures two point sixty-four inches, with a top to inlet center measuring two point zero eight inches.

Product Information

Standard Information

• Suitable Media: Oil, Water, Gas
• Valve Operation: Manual

Technical Specifications

• Housing Material: Bronze
• Body Material: Cast Bronze
• End Style: Threaded
• Nominal Size: 3/4 inches
• Port Type: Full
• Softgoods Material: RPTFE
• Ball Material: 316 Stainless Steel
• Orifice Size: 0.76 inches
• Series: UPBA100S
