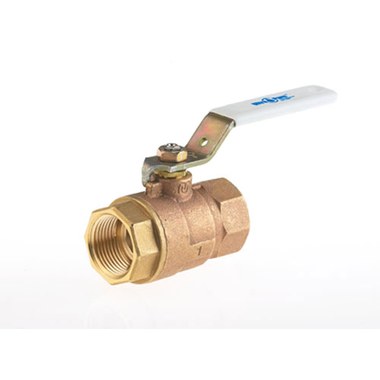

Milwaukee UPBA100S-12 Ball Valve

Product Description

The Milwaukee UPBA100S-12 is a reliable two-piece ball valve used for effective fluid control. It has a robust cast bronze body and features a durable 316 stainless steel ball. This valve is designed with a 1/2-inch nominal size and a full port for optimal flow. It is compatible with FNPT end styles and rated for a maximum pressure of six hundred psig.

• Constructed with a blow-out proof stem for enhanced safety.
• Includes a trim made from 316 stainless steel and a 15% glass-filled RPTFE seat.
• Features a zinc plated steel handle for easy operation.

Product Highlights

Product Information

Standard Information

• Brand: Milwaukee
• Type: 2-Piece Ball Valve

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: Cast Bronze
• Nominal Size: 1/2 inches
• Orifice Size: 1/2 inches
• Port Type: Full
• Pressure Rating: 600 psig
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Inlet to Outlet Length: 2.19 inches
• Top to Inlet Center: 1.91 inches
