MILWAUKEE UPBA-490B-12 Milwaukee UPBA-490B-12 1 in. Forged Brass Full Port Press x Threaded 200# Ball Valve

Product Description

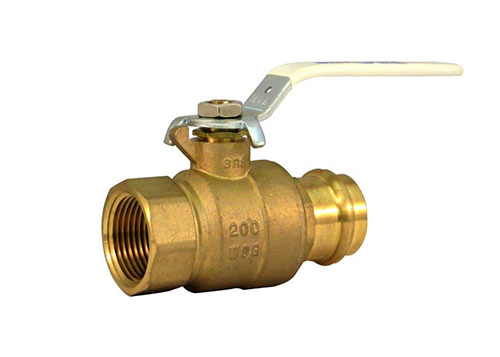

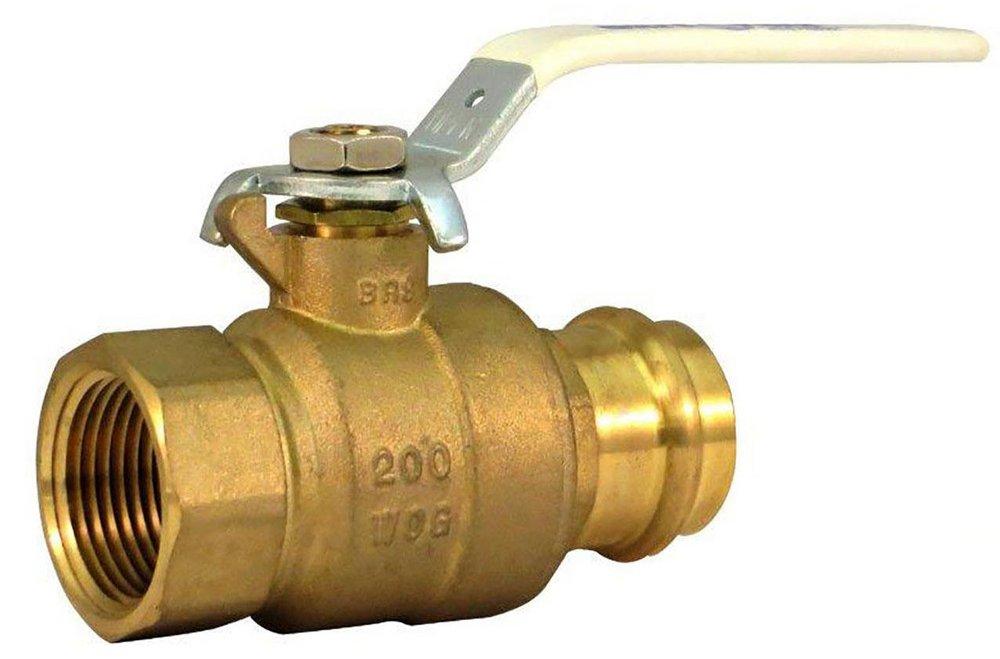

The Milwaukee UPBA-490B-12 is a one-inch forged brass full port ball valve. It features press and NPT end connections, making it versatile for various installations. The valve is equipped with a blowout-proof stem and a PTFE seat for reliable performance. The design allows for bubble-tight shutoff with a simple quarter-turn operation. This valve is ideal for potable water applications and is a trustworthy choice for professionals.

• Features press and NPT end connections
• Constructed from forged brass
• Offers bubble-tight shutoff

Product Highlights

Designed for easy installation and operation, the Milwaukee UPBA-490B-12 delivers reliable performance across many applications.

Product Information

Standard Information

• Brand: MILWAUKEE
• MPN: UPBA-490B-12

Technical Specifications

• Valve Size: 1 inch
• Material: Forged Brass
• End Connection 1: Press
• End Connection 2: NPT
• Valve Type: Ball Valve
• Valve Port Opening: Full Port
• Pressure Class: 200#
• Pressure - Maximum: 200 psi
• Maximum Temperature: 250
• Valve Body Material: Brass
• Valve Body Style: 2 piece
• Valve Operator: Lever Handle
• Valve Seat Material: PTFE
• Valve Stem: Blowout-proof
• Handle Material: Zinc Plated Steel
• Lead Law Compliant: Yes
• Recommended Valve Application: Potable Water
• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM B-283, ASTM D-2000, ASTM B-124
• NSF: NSF 372
• NSF Certified: Yes
• IAPMO Listed: No
• UL Listed: No
• FM Approved: No
• Clean Bagged: No
