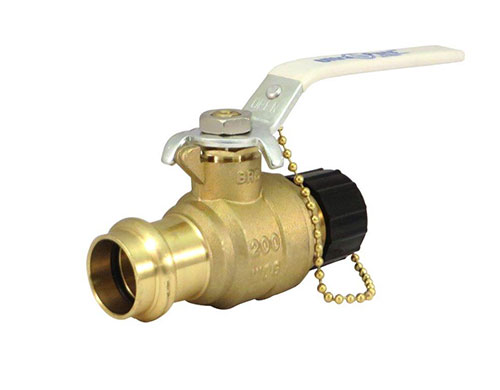

MILWAUKEE UPBA-480BH-12 Brass Ball Valve

Product Description

The MILWAUKEE UPBA-480BH-12 is a brass ball valve designed for manual operation. Made from lead-free brass, it has a full port and is suitable for inline applications. This valve includes a chrome-plated brass ball and a PTFE seat material.

• Equipped with a steel lever handle for easy operation.
• End connection is Press x Hose for 3/4 inch hose I.D.
• Handles maximum pressure up to 200 psi CWP with operational temperatures from 0 to 250 degrees F.

Product Highlights

This valve is compliant with NSF 372/61 standards, ensuring safe use in plumbing applications. It is built for durability and reliable performance.

Product Information

Standard Information

• Brand: MILWAUKEE
• MPN: UPBA-480BH-12

Technical Specifications

• Material: Lead Free Brass
• ANSI/Pressure Rating: 250 psig @ 250 degrees F
• End Connection: Press x Hose
• Body Style: Inline
• Seat Material: PTFE
• Port: Full
• Ball: Chrome Plated
• Operator: Lever Handle
• Product Size: 1/2, 3/4
• Max Pressure: 200 psi CWP
• Temperature Range: 0 degrees to 250 degrees F
• Hose I.D.: 3/4 inches
• Valve Structure: 2-Piece
